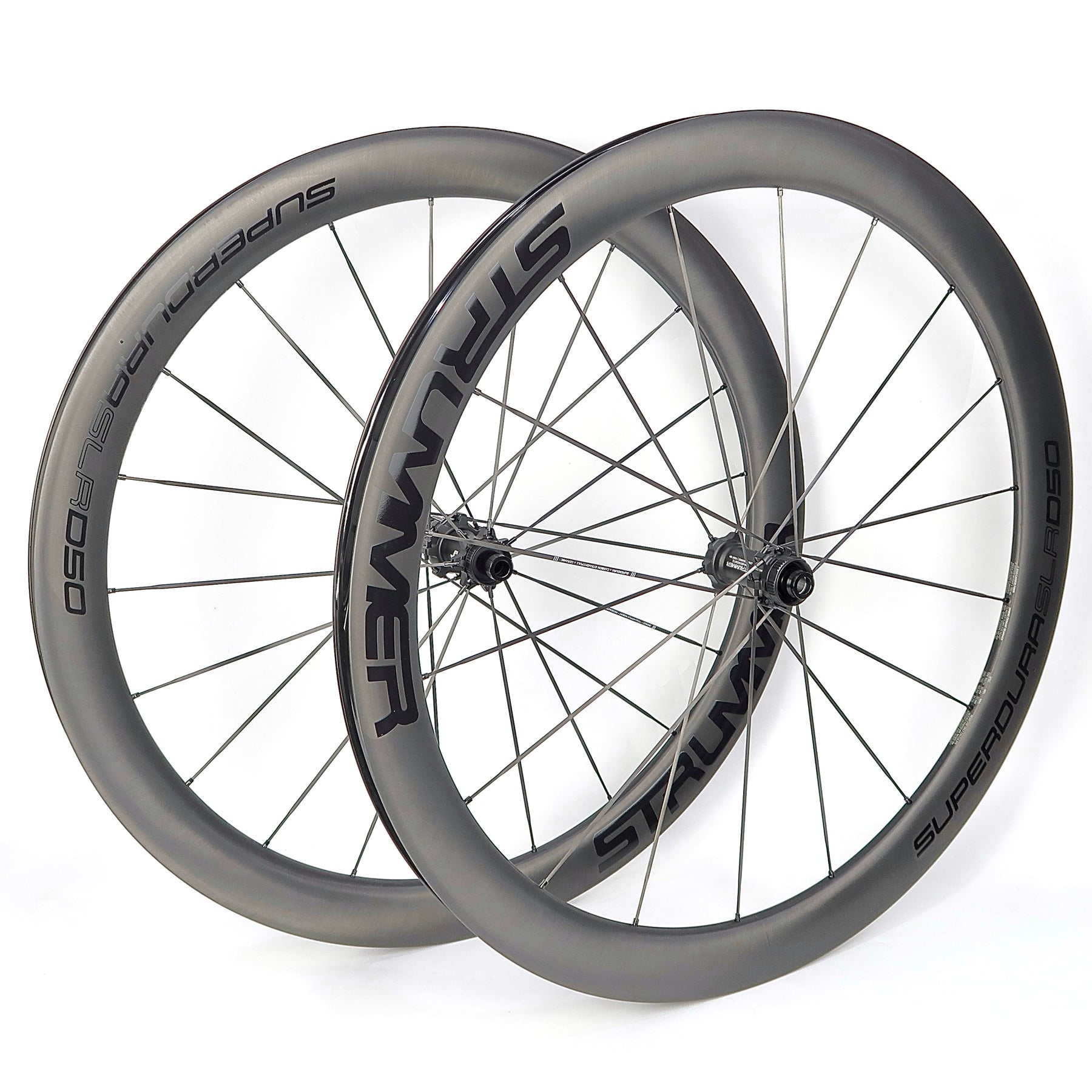

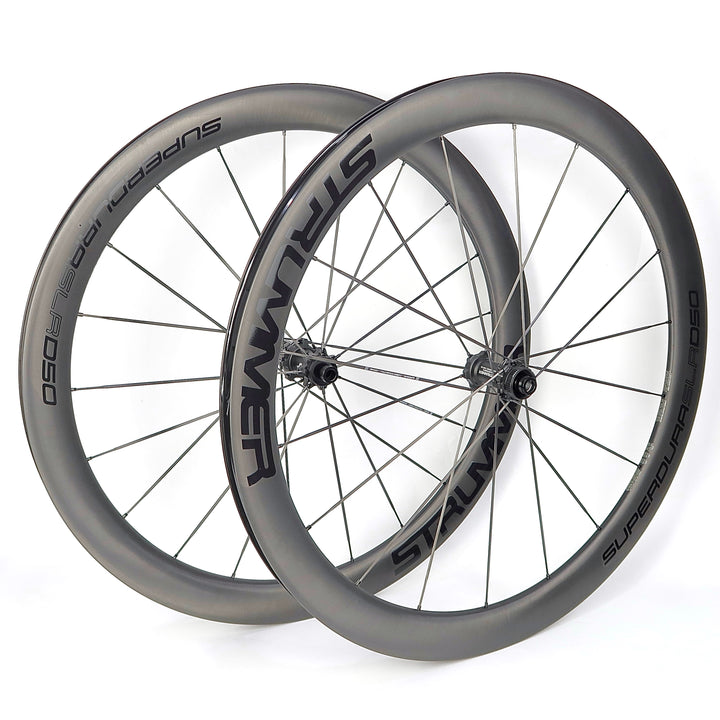

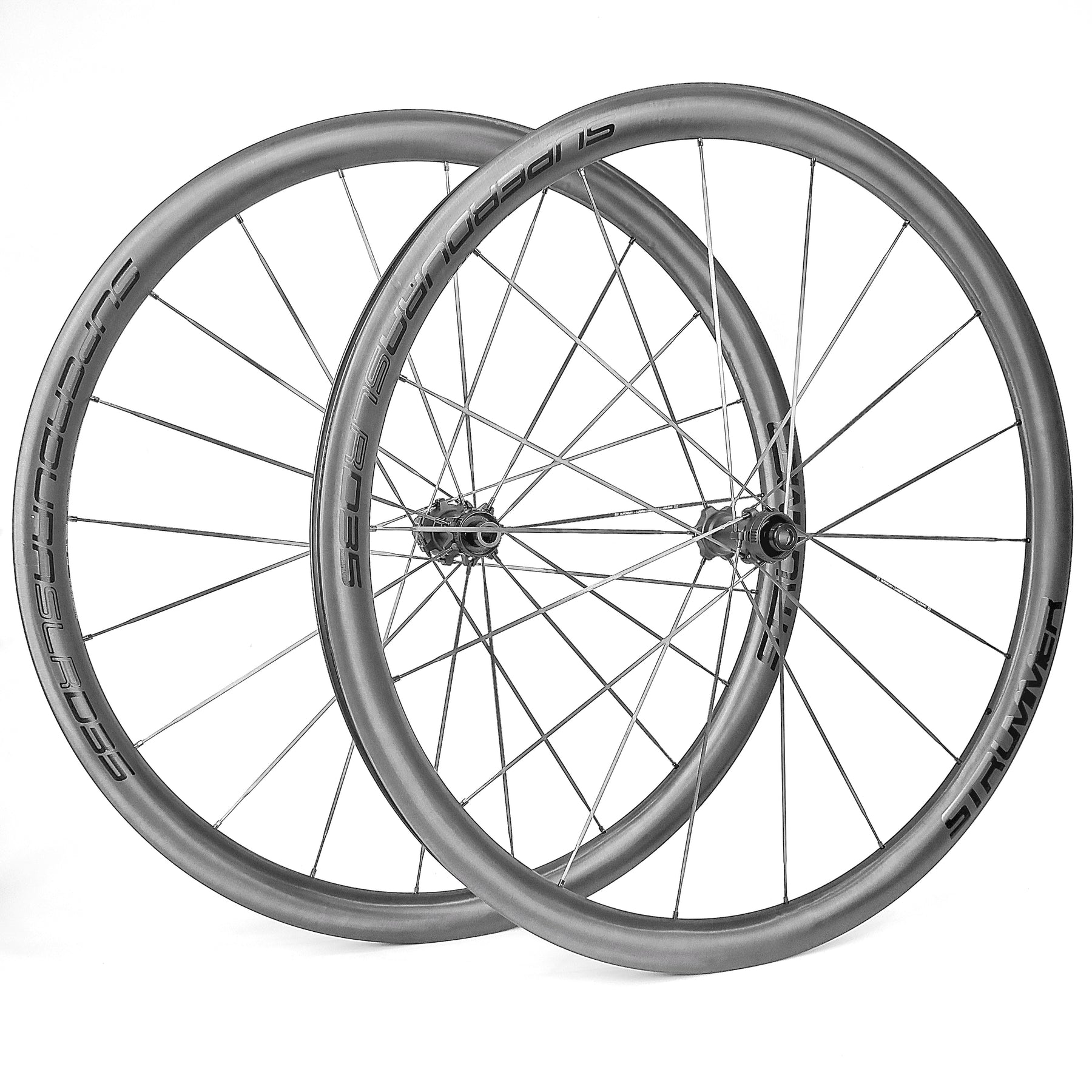

Strummer Superdura SLR HR-800 Carbon Disc Brake Wheelset

Performance is not born from a single innovation.
It is born from experience, testing, and an obsession with detail.

Strummer Superdura SLR HR-800 was developed to deliver a modern road wheelset with a balance of power transfer efficiency, high-speed stability, and real-world riding comfort.

With an inner width of 23 mm, this rim profile follows modern road performance standards - supporting wider tires for better grip, greater stability, and more optimal rolling efficiency than the previous generation.

With its exceptionally low wheelset weight, the HR-800 is also an ideal choice for climbing performance, helping maintain momentum on long climbs while providing more responsive acceleration whenever exiting a corner or navigating a change in gradient.

Latest-Generation Materials & Structure

The rim uses a T1000 high-modulus carbon blend, producing a combination of:

• Exceptionally low weight

• High structural stiffness

• More direct acceleration response

Combined with the latest rim geometry design and TRS (Tubeless Ready System) technology, this wheelset provides maximum tire-use flexibility.

TRS allows the use of both tubeless and standard clincher tires.
This means the wheelset remains easy to use with a familiar conventional tire setup while still offering the option to upgrade to a tubeless system in the future without replacing the wheelset.

In addition to setup flexibility, the TRS design also helps optimize rolling resistance and improve riding comfort across a variety of asphalt conditions.

Precision Wheel Engineering

Each wheelset undergoes a multilayered quality-control process:

• Spoke tension release

• Alignment inspection

• Rim trueness measurement

• Spoke tension uniformity verification

Strummer Carbon Straightpull Spokes are manufactured with a high degree of precision, using a length tolerance of up to 0.5 mm - approximately twice as precise as the general industry standard (±1 mm).

This level of precision helps produce a more balanced wheel structure, more efficient power transfer, and more consistent long-term performance.

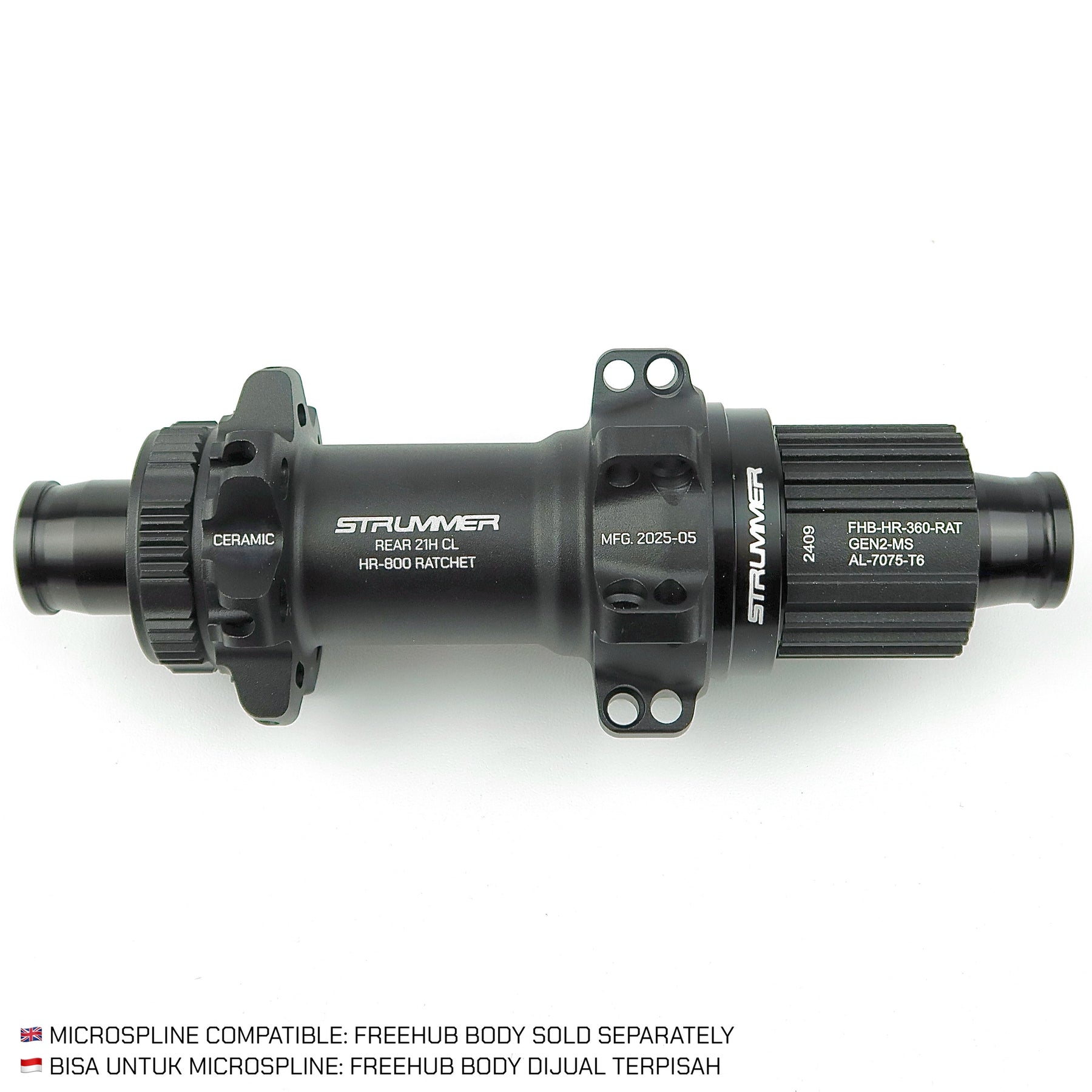

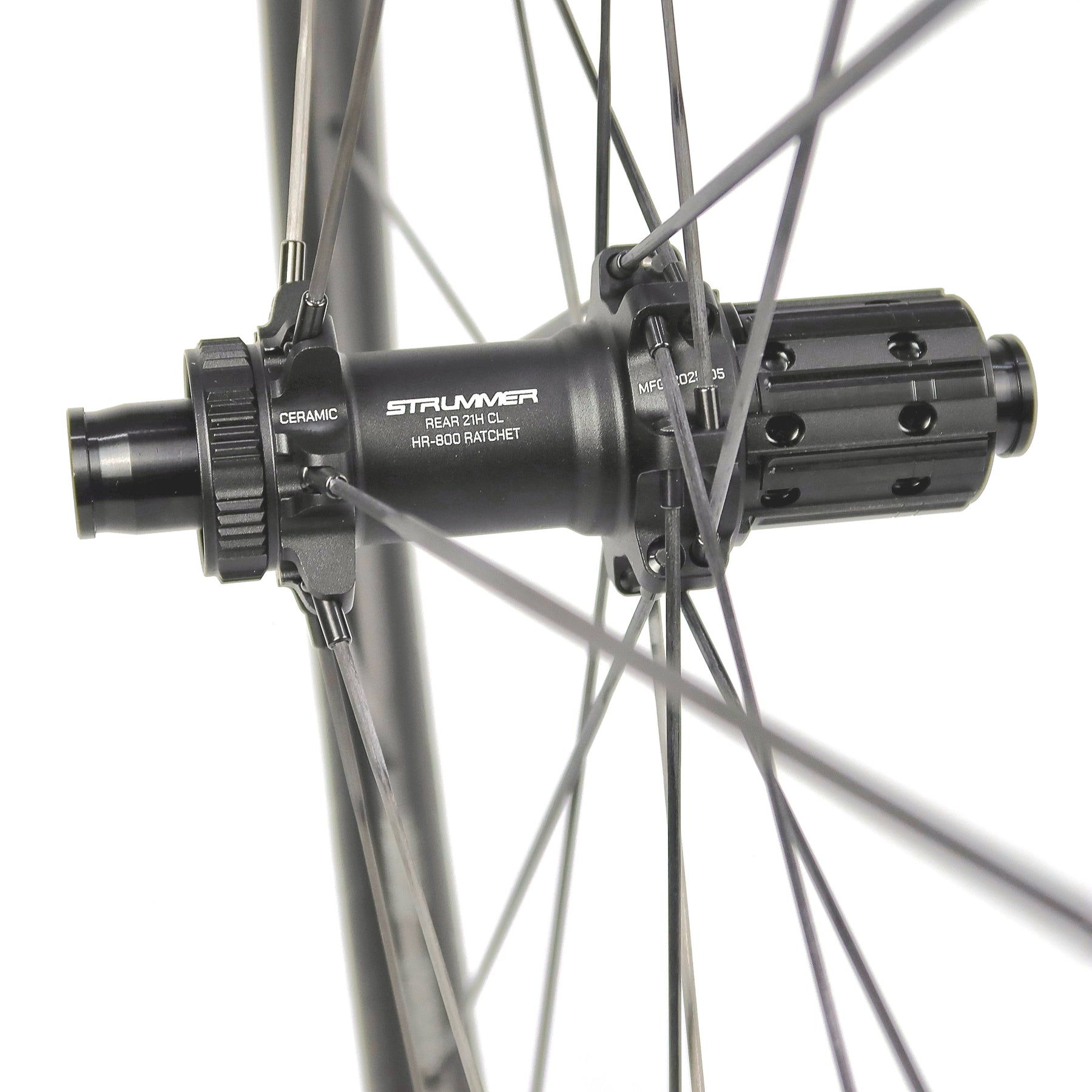

HR-800 Ratchet Hub System

This wheelset uses the HR-800 Straightpull Hub with a 54T ratchet engagement system for fast, responsive acceleration.

All hub components are processed using high-precision CNC machining to maximize material efficiency without compromising structural strength.

Compared with the previous generation of road disc hubs, the HR-800 is designed with a focus on:

• Reduced weight

• Higher rotational efficiency (thanks to ceramic bearings)

Designed for Real Road Performance

This wheelset is optimized for road performance riding on asphalt surfaces, with a focus on:

• Stability at high speeds

• Efficient power delivery

• Long-distance riding comfort

• Climbing efficiency thanks to the exceptionally low wheelset weight

Designed for today's performance while ready for the riding technologies of the future.

⚠ Special Attention - Carbon Straightpull Spoke System

Strummer Carbon Straightpull Spokes use a system that differs from conventional spokes.

With conventional spokes, tightening and loosening are performed from the inner diameter side of the rim.
For Strummer carbon spokes, this method is strictly prohibited, as it can damage the product and endanger user safety.

For spoke servicing, you must use:

• 3.4 mm Spoke Holder (Example: Park Tool SW-22)

• 5.5 mm Internal Nipple Spoke Wrench (Example: Park Tool SW-15)

Always use the appropriate tools and follow the correct service procedures to maintain product life and user safety.

Technical Specifications

Rim Dimensions & Structure

• Inner Width: 23 mm

• Outer Width: 32 mm

• Profile Height: 35 / 40 / 50 mm (Depending on Selection)

• Tire Compatibility: 700c / 29”

Materials & Components

• Spokes: Strummer Carbon Straightpull, Alloy Nipples

• Rim: Strummer Superdura SLR TRS 700c (T1000 Blend), 18/21H, Hooked, Clincher Compatible

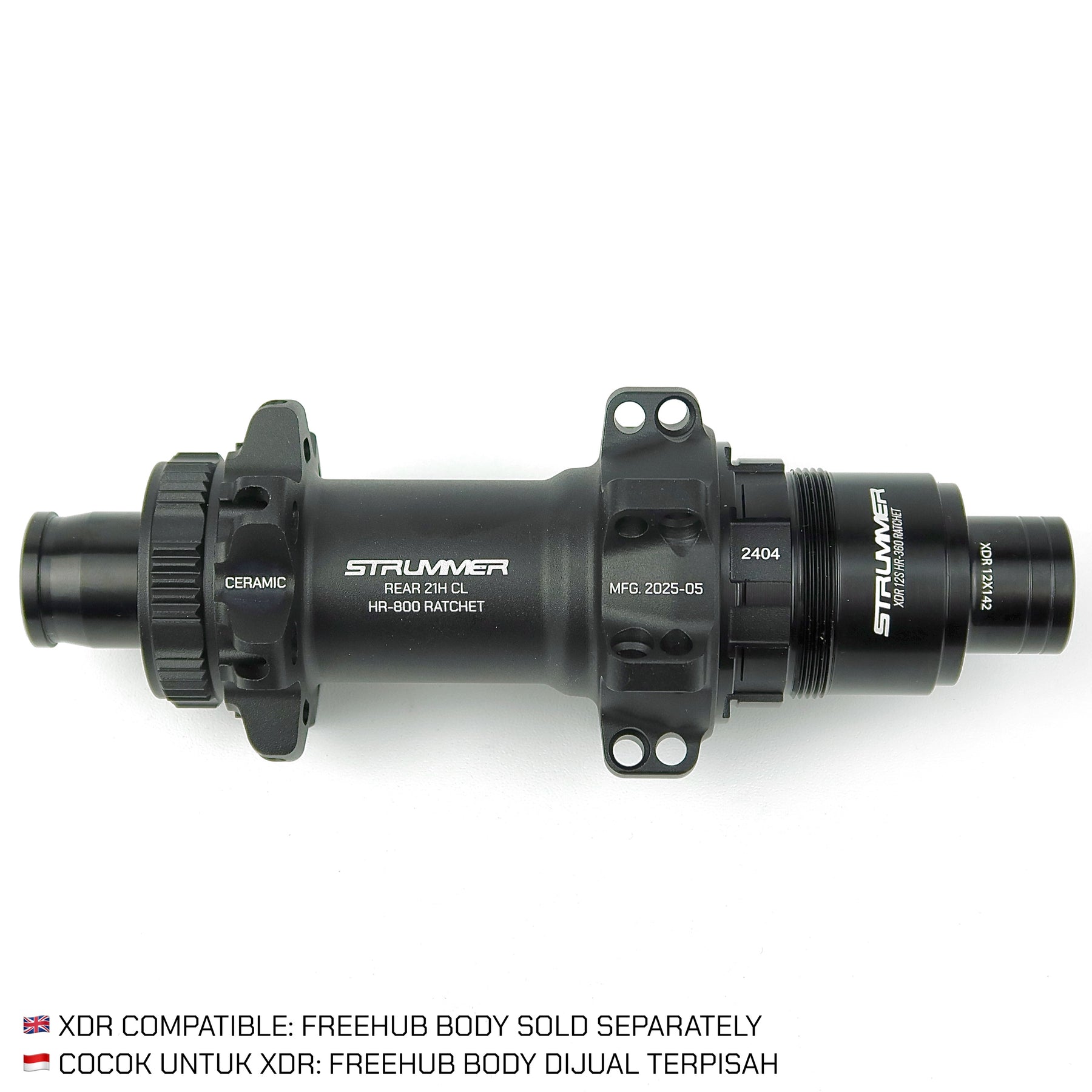

• Hub: Strummer HR-800 Ratchet (54T) Straightpull Centerlock

  • Front: 12x100

  • Rear: 12x142

  • Holes: 18/21H

  • Bearings: Ceramic

Product Weight

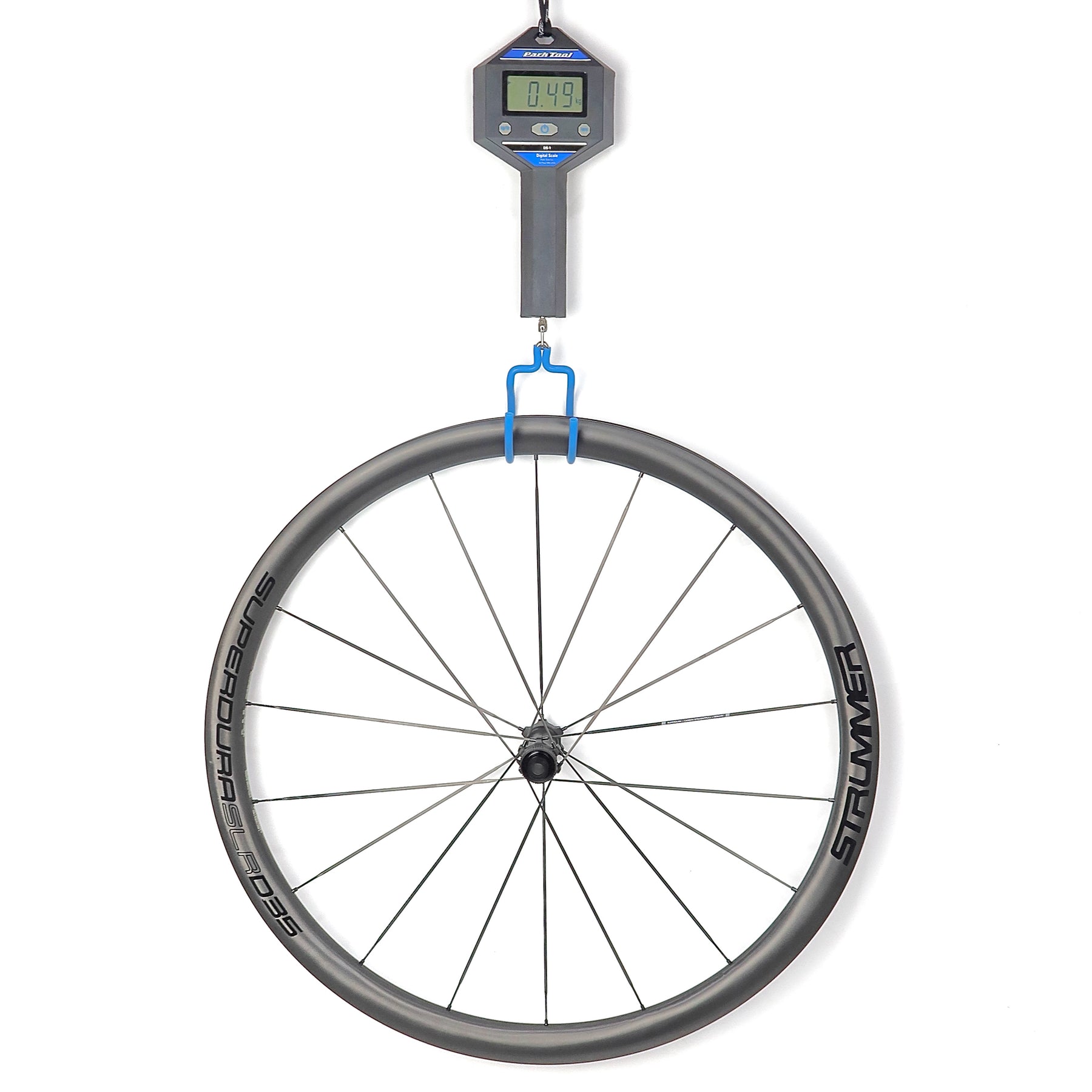

• D35

  • Front: 490 grams

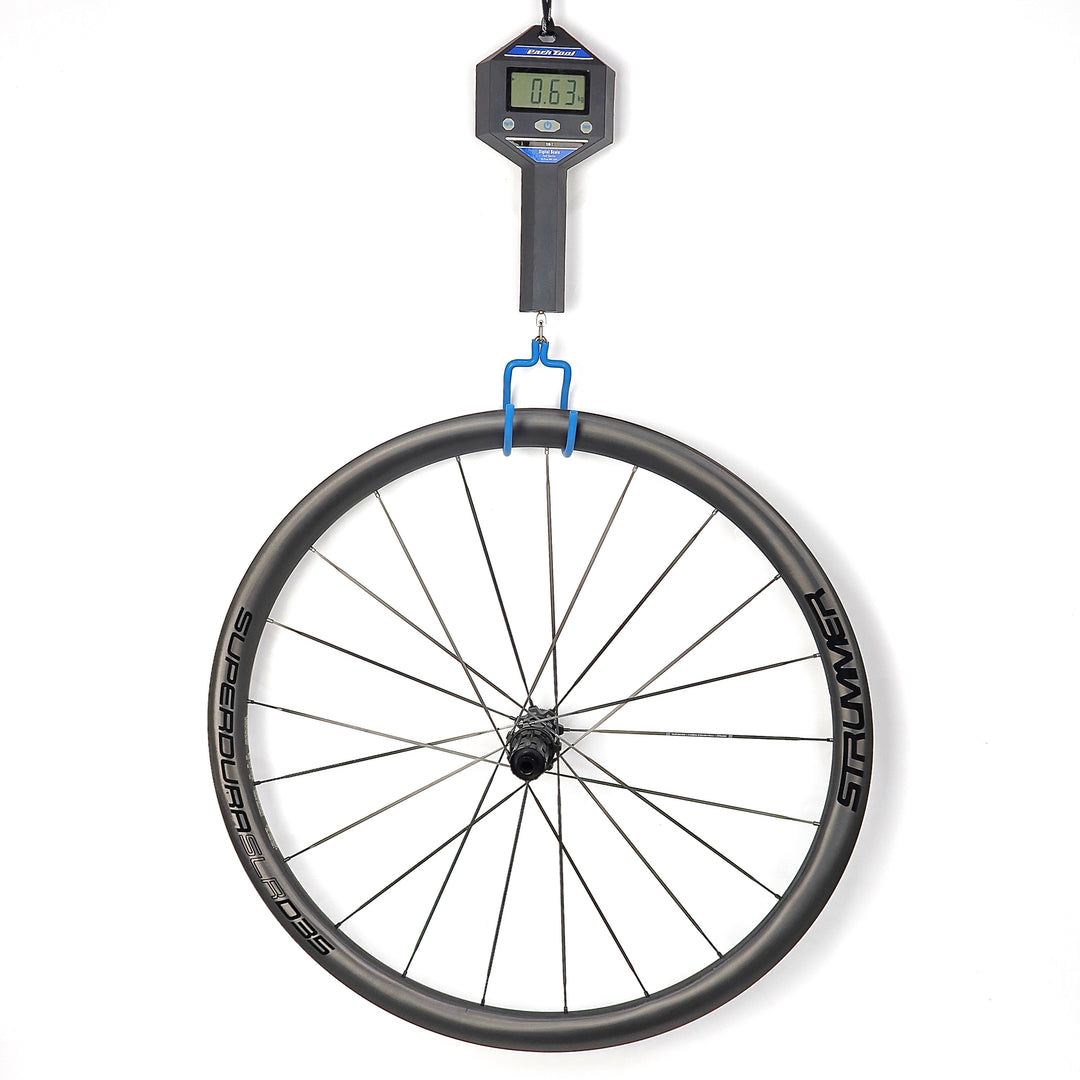

  • Rear: 630 grams

  • Total: 1120 grams

  • Tolerance: ±20 grams

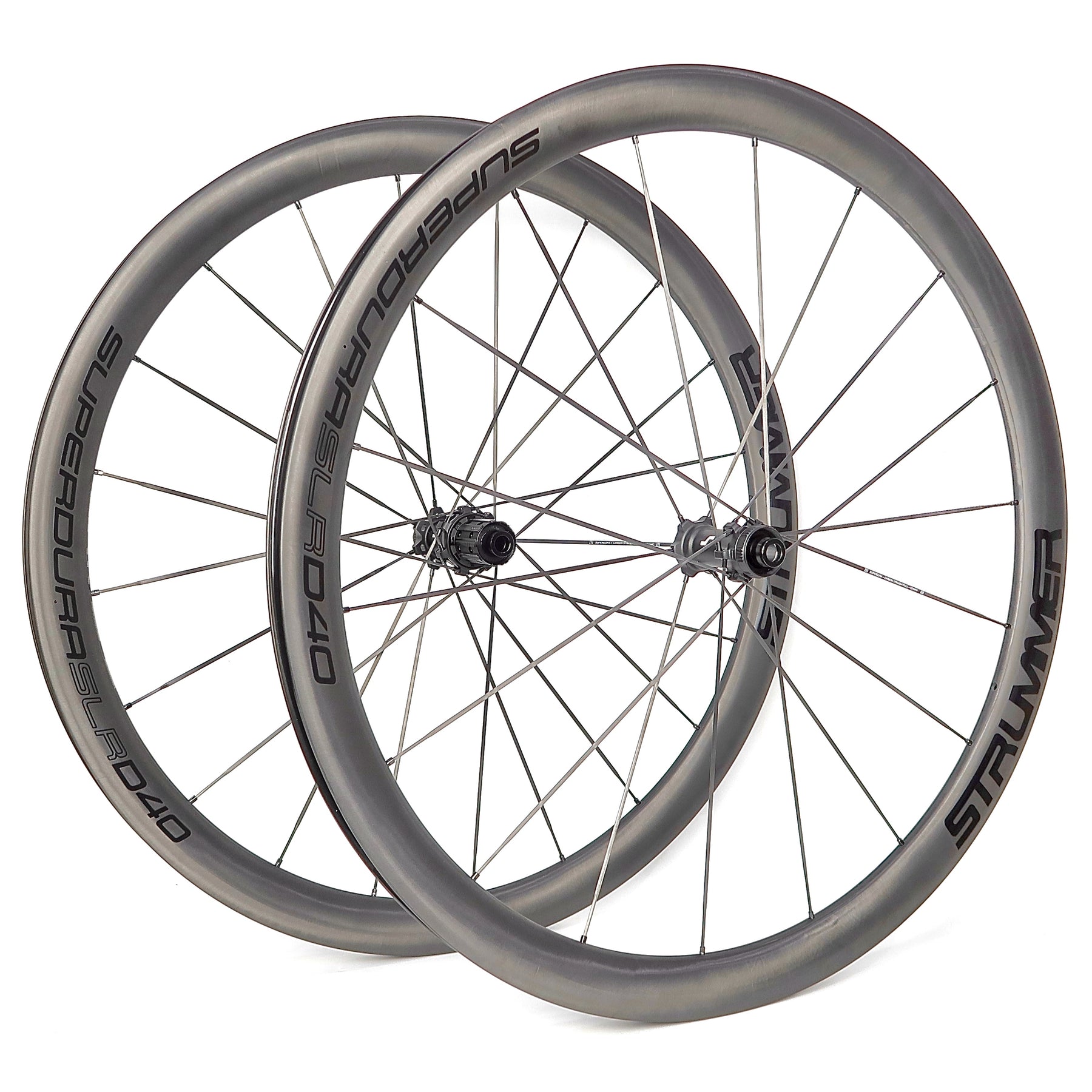

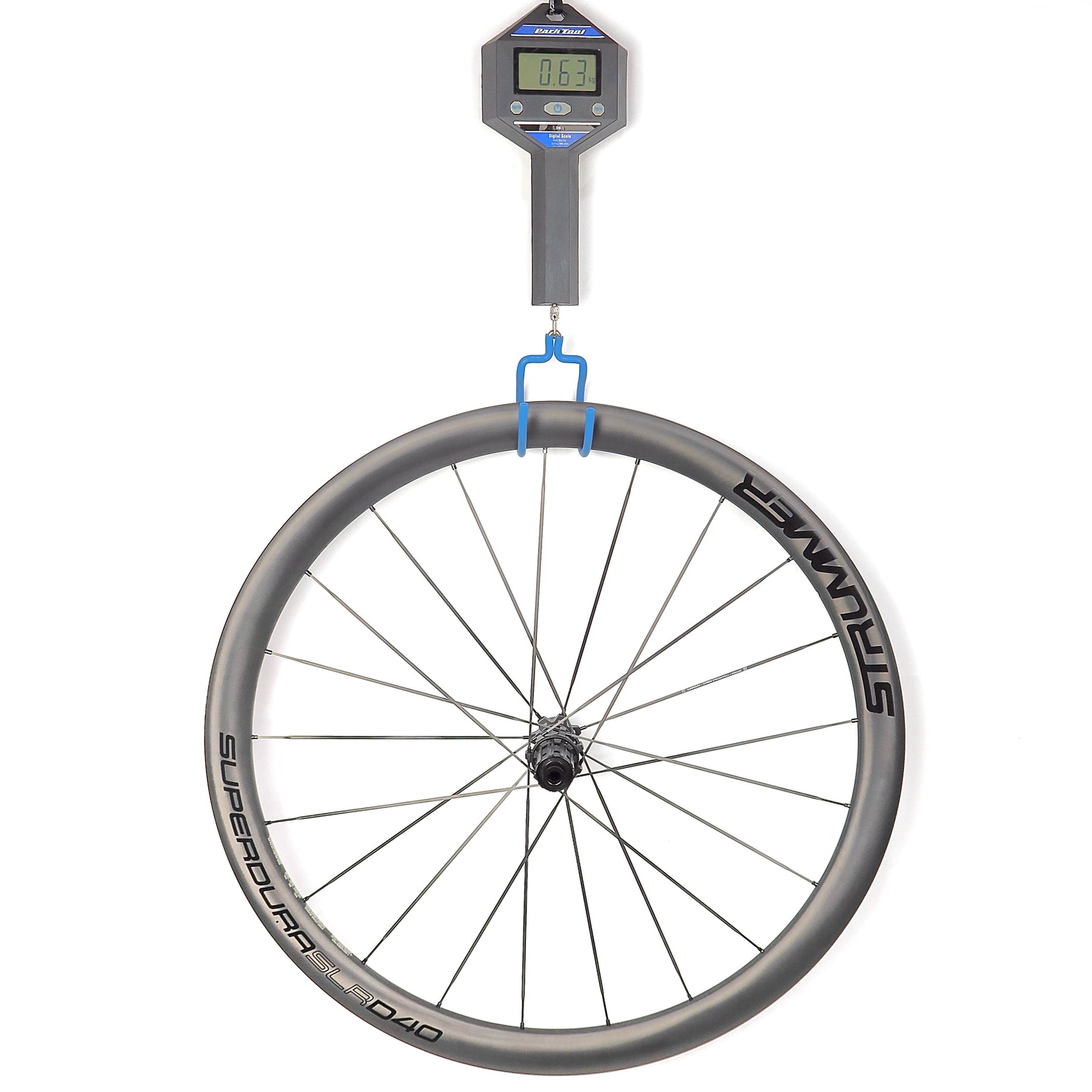

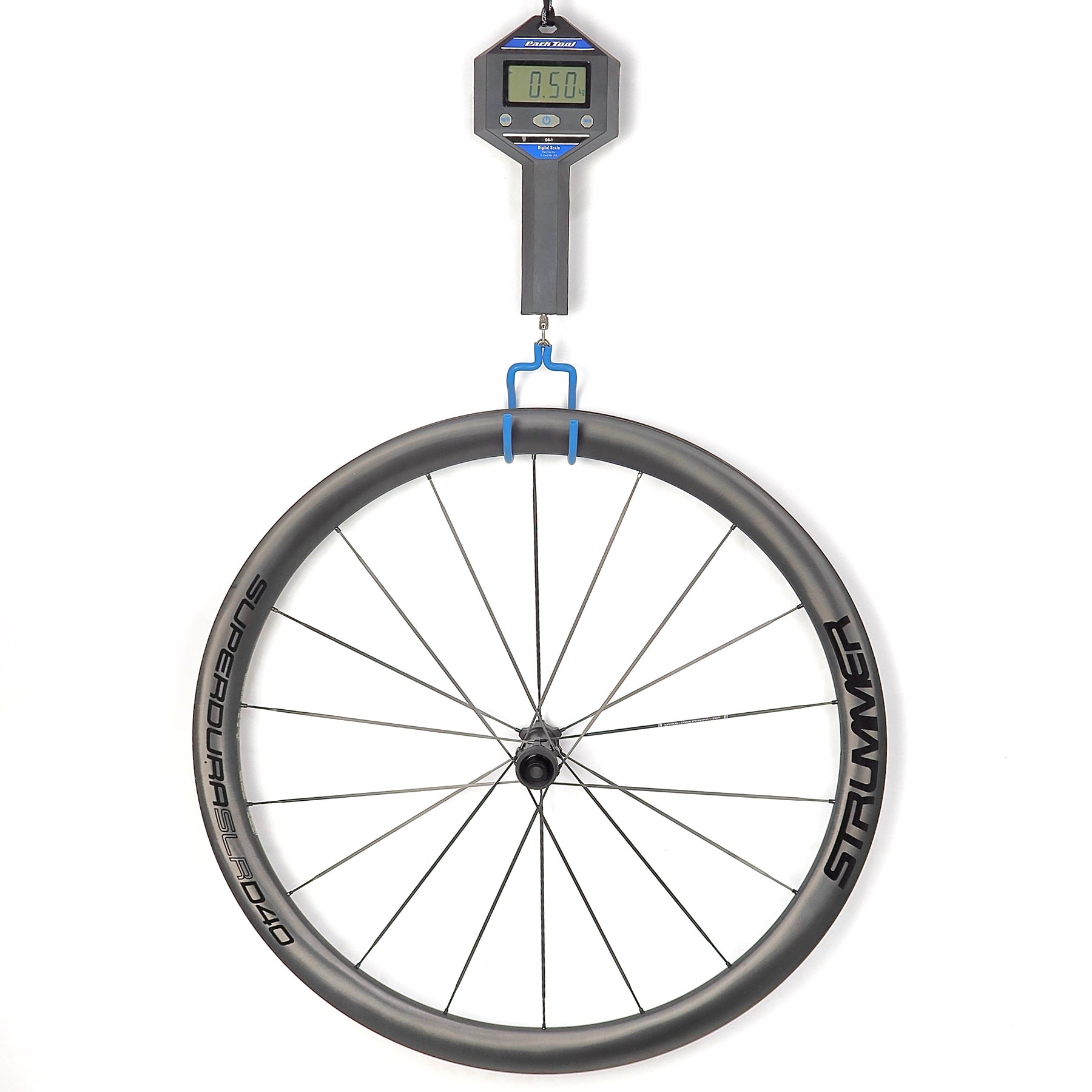

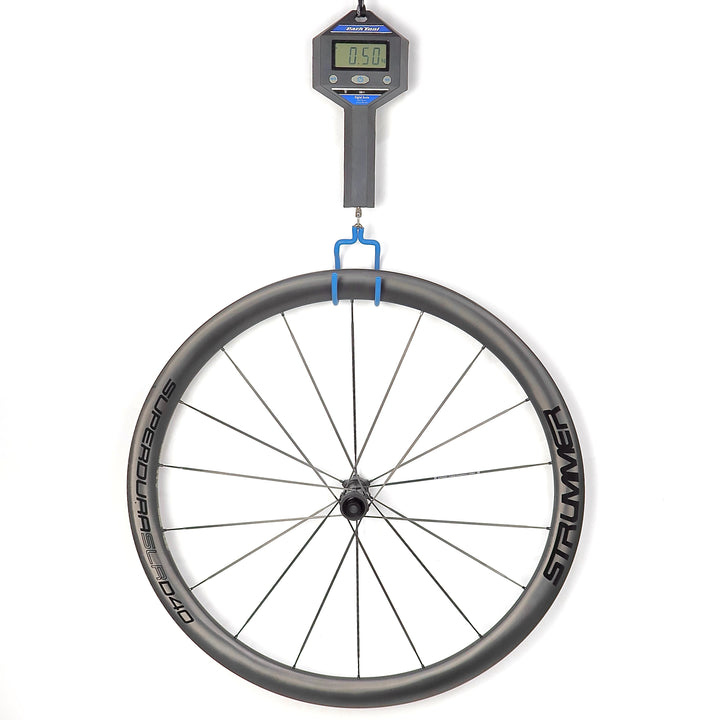

• D40

  • Front: 500 grams

  • Rear: 630 grams

  • Total: 1130 grams

  • Tolerance: ±20 grams

• D50

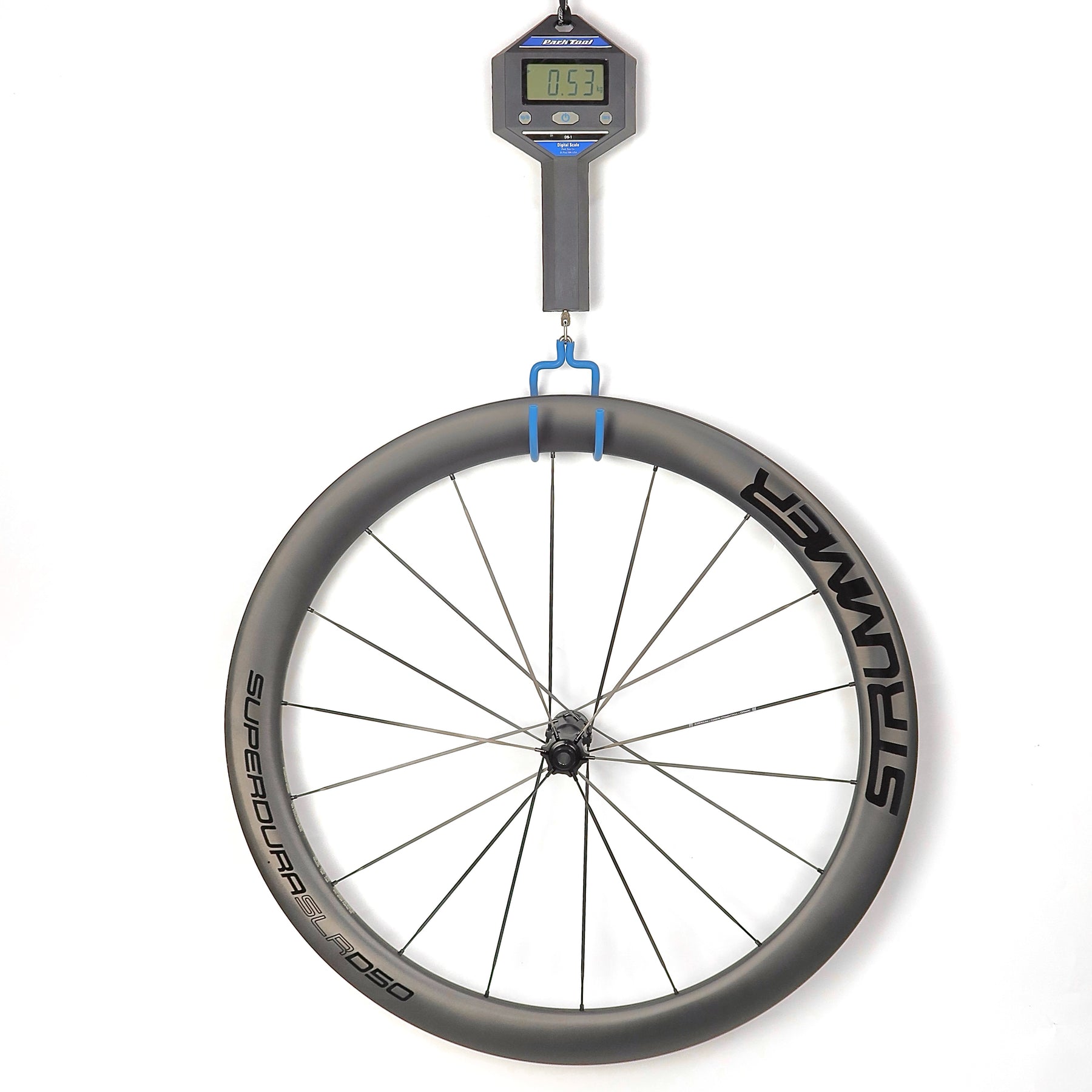

  • Front: 530 grams

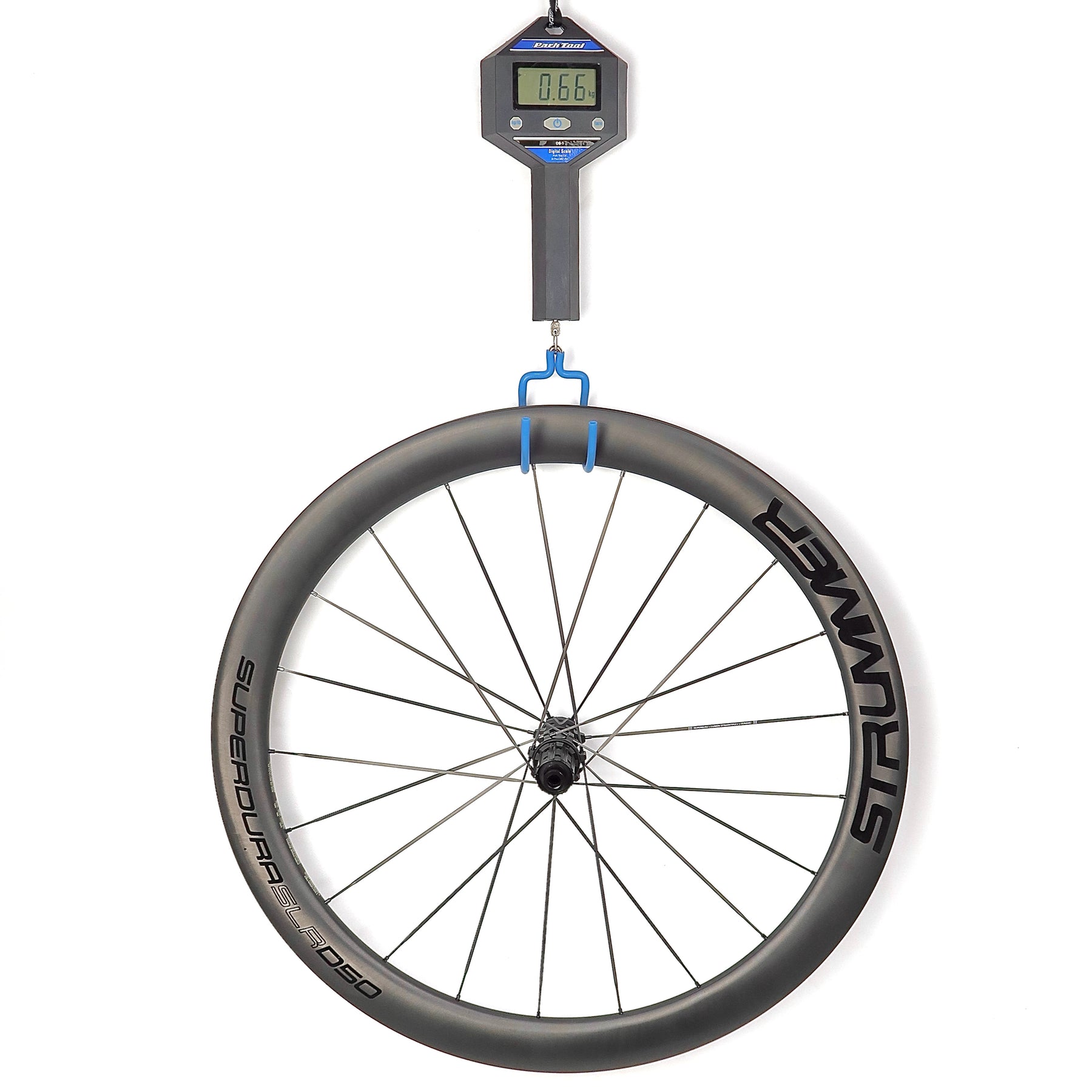

  • Rear: 660 grams

  • Total: 1190 grams

  • Tolerance: ±20 grams

Compatibility & Use

• Tubeless: Compatible (TRS - Tubeless Ready System)

• Use: Road Only (Asphalt)

• Not Recommended For: Gravel

System Weight Limit

(Bicycle Weight + Cargo Weight + Rider Weight)

• Maximum: 120 kg

• If >100 kg → Regular inspection by a competent mechanic is recommended

Recommended Tire Size

Use tires that match the wheelset specifications and the tire manufacturer's specifications to ensure the combination remains safe to use.

• Minimum: 28 mm

• Maximum: 32 mm

Recommended Maximum Tire Pressure

⚠ Do not exceed the maximum tire pressure or the values below.
The values below are the absolute maximum limits. Product deformation may occur when approaching the maximum limit.

Tire pressure must be adjusted according to the total system weight.

Replacement Spoke Specifications & Sizes

The wheelset does not include spare spokes. Spokes are sold separately.

Spoke Type

• Strummer Carbon Straightpull

Spoke Tension

• Front Wheelset

  • Disc Side: 130 kgf

  • Non-Disc Side: 70 kgf

• Rear Wheelset

  • Drive Side: 130 kgf

  • Disc Side: 70 kgf

Spoke Sizes

Superdura SLR HR-800 - 35 mm

• Front

  • Left (Disc): 12 pcs - 291 mm

  • Right: 6 pcs - 277 mm

• Rear

  • Right (Drive): 14 pcs - 292.5 mm

  • Left (Disc): 7 pcs - 273.5 mm

Superdura SLR HR-800 - 40 mm

• Front

  • Left (Disc): 12 pcs - 286 mm

  • Right: 6 pcs - 272 mm

• Rear

  • Right (Drive): 14 pcs - 287.5 mm

  • Left (Disc): 7 pcs - 268.5 mm

Superdura SLR HR-800 - 50 mm

• Front

  • Left (Disc): 12 pcs - 276 mm

  • Right: 6 pcs - 262 mm

• Rear

  • Right (Drive): 14 pcs - 277.5 mm

  • Left (Disc): 7 pcs - 258.5 mm

Compatible Spare Parts & Adapters

• Front Hub Bearing: 6803-2RS Hybrid Ceramic (2 pcs)

• Rear Hub Bearing:

  • 15267-2RS Hybrid Ceramic (2 pcs)

  • Freehub Body 6802-2RS Hybrid Ceramic (2 pcs)

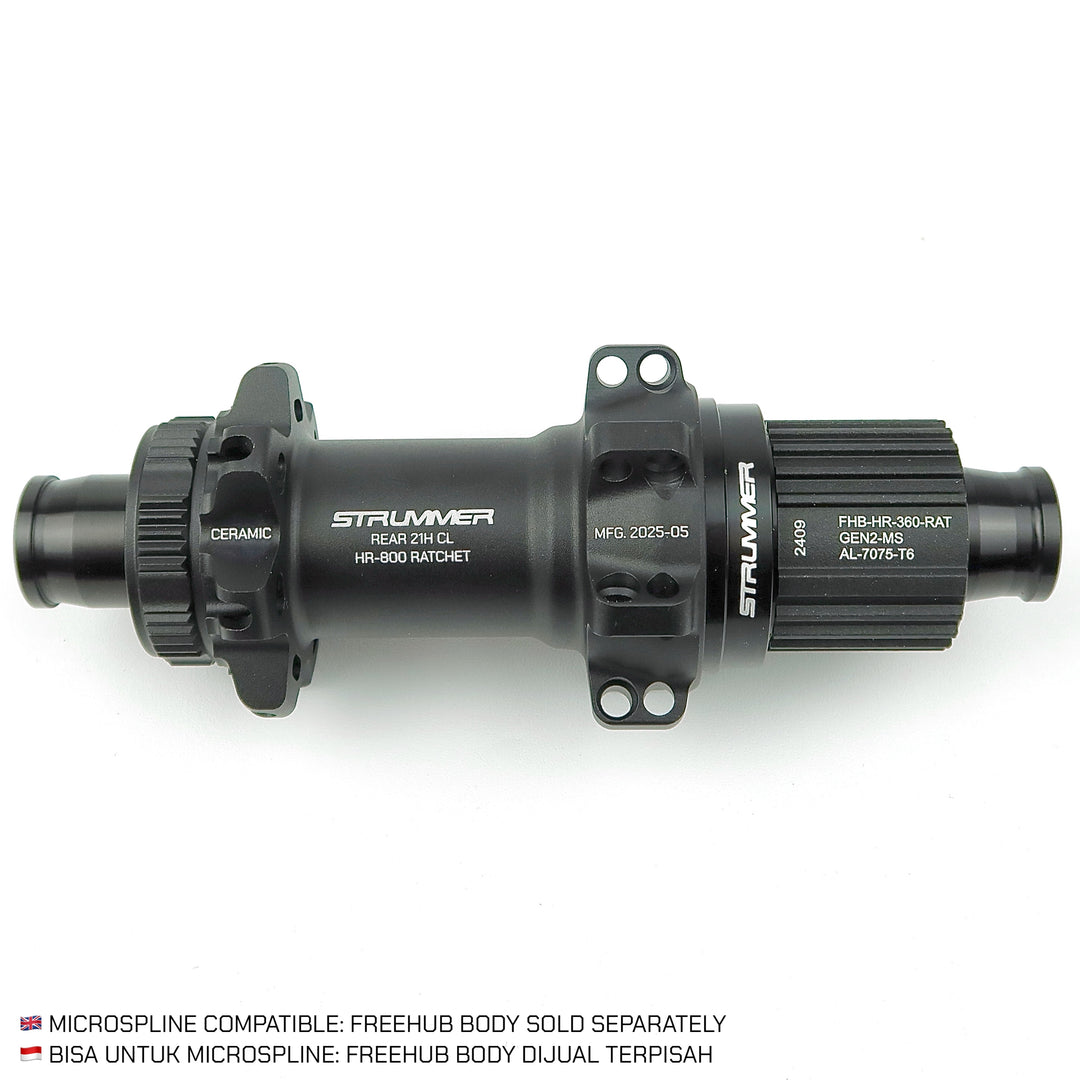

• Microspline Freehub Body (PARTS-00066)

Product Warranty

• Duration: 6 Months from the date of purchase

• Coverage: Manufacturing defects

Not Included

• Wear and tear (Bearings, Ratchet, Grease, etc.)

• Cosmetic damage caused by use

• Damage caused by accidents or excessive impacts

Warranty Is Voided If

• Modifications outside the specifications

• Use outside the intended purpose

• Misuse or improper servicing

Full terms:
https://strummerbikes.com/pages/warranty-information-indonesia

B2B Information (for Dealers)

Contents per box: 1 set
