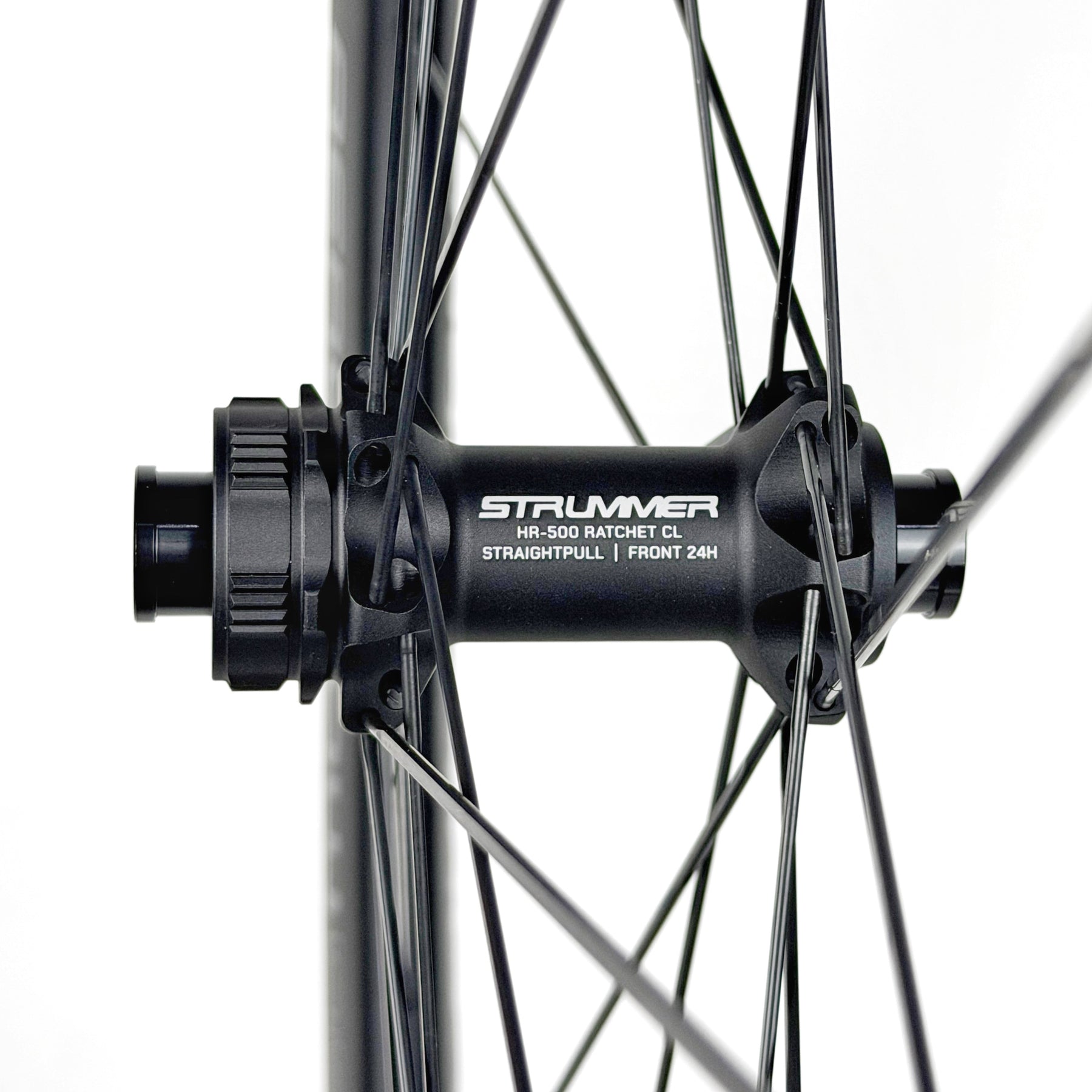

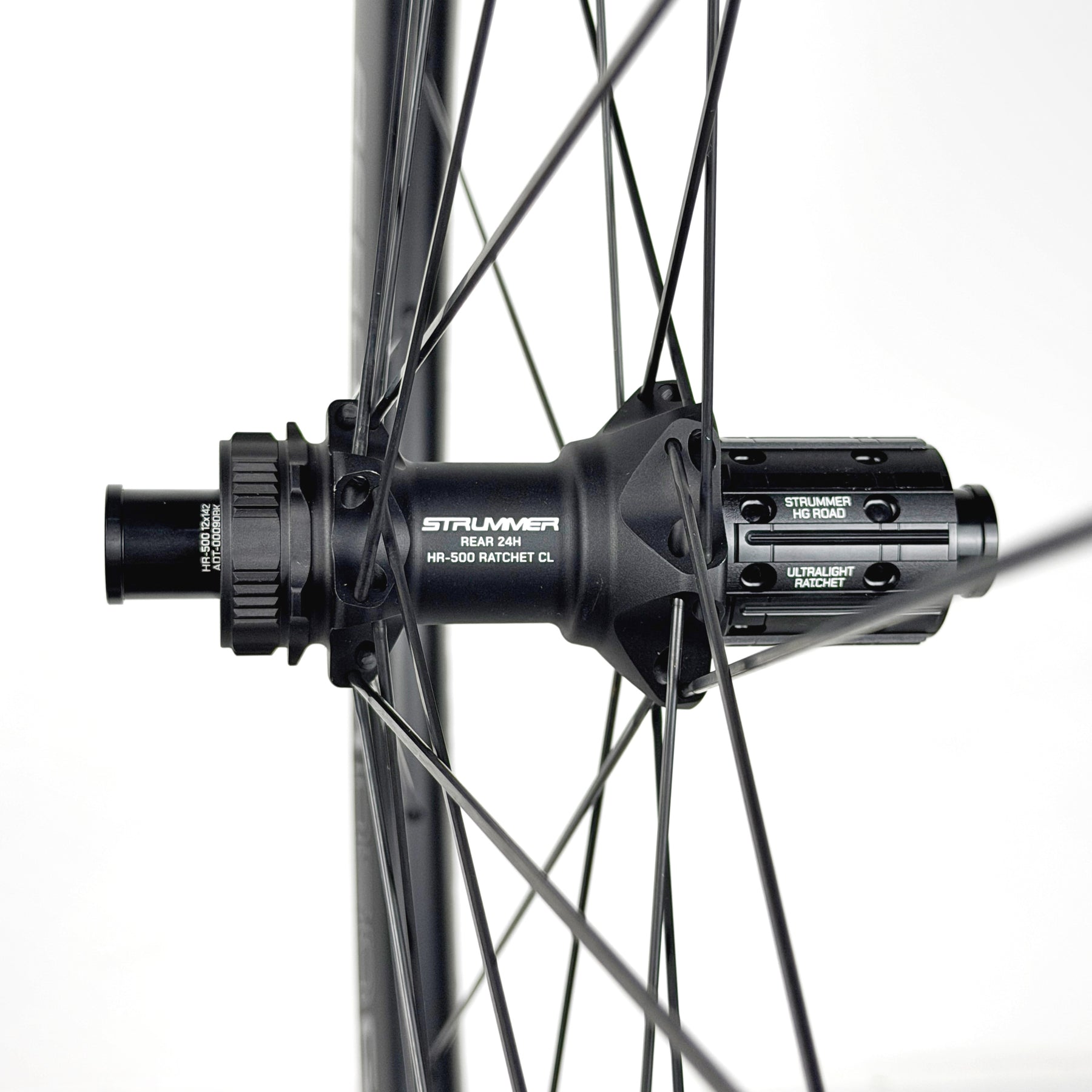

Hub: Strummer HR-500, 12x100/12x142, HG Road, 54T Ratchet, Centerlock Disc Brake

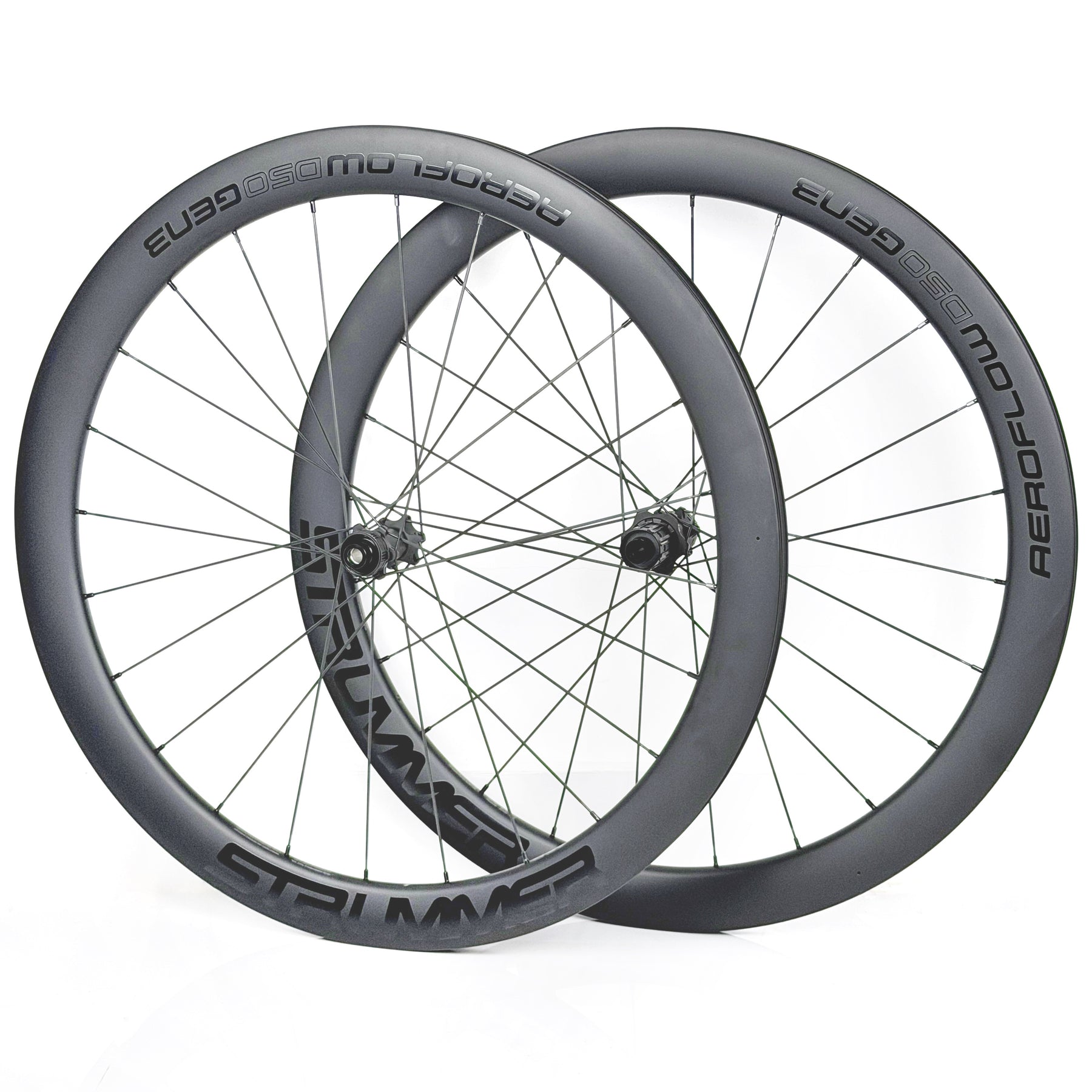

Rim: Strummer Aeroflow Gen3 (22 mm internal width, 30 mm external width), 50 mm deep (D50 version), Matte Black finish, Drainage Holes, Hooked (Clincher), Tubeless Ready System (TRS), T-700 Carbon (T-800 Mix), FV (Presta)
Product Weight: 0.7 kg front, 0.84 kg rear, 1.54 total
Spokes: Pillar PSR Aero 1423 Straightpull, 14 mm nipples
Maximum System Weight: 135 kg (rider weight + bike weight + cargo weight).
Rear Hub (Freehub) Maintenance Note
Grease lubricates the parts that rub against each other in the rear hub's freehub mechanism, helping to reduce friction and wear. Removing all the grease just to get a louder sound is not recommended. Without adequate lubrication, components may wear out or become damaged more quickly, shortening their service life. Use the type and amount of lubricant recommended for product maintenance.
Replacement Spokes — Aeroflow Gen3 D50 HR-500
Spoke type: Pillar PSR Aero 1423 Straightpull, 14 mm nipples. Hub configuration: 12×100 mm front and 12×142 mm rear, 24/24H. Lacing pattern: 2-cross. 700c rim with 542 mm ERD and 0 mm offset.
| Wheel position | Side | Spoke length | Quantity |
|---|---|---|---|
| Front | Left (disc brake) | 268 mm | 12 pcs |
| Front | Right (non-disc) | 270 mm | 12 pcs |
| Rear | Left (non-drive) | 270 mm | 12 pcs |
| Rear | Right (drive) | 268 mm | 12 pcs |
Total: 24 pcs per wheel, or 48 pcs for a wheelset (268 mm: 24 pcs; 270 mm: 24 pcs). These measurements are specific to the Aeroflow Gen3 D50 HR-500 configuration above.
Decal
The Aeroflow Gen3 HR-500 decal cannot be removed.
