Strummer HR-20 hub set is one of the best hub you can get for your road bike. Designed to be fast in the road, lightweight on climbs, and durable enough to resist water, dust, and other elements that might come in its' way. Driving the bike forward is a 4-Pawls mechanism, providing solid power transfer from your pedals to your wheels.
Every single hub is precision manufactured with a mix of AL6061-T6 and AL7075-T6 alloy, finished, and anodized to our high standards. Our range of hubs boasts a large range of options and accessories to fit different axle sizes, spoke hole drillings, disc brake rotor mountings, cassette sprocket systems, and colors.
Specifications
- Front Hub: 5.2 x 100 mm, 14G Spokes, 32 Holes, 2 Sealed Bearings, 107 g
- Rear Hub: 5.2 x 130 mm, 14 G Spokes, 32 Holes, 4 Sealed Bearings, 190 g
- Sprocket Compatibility: Shimano 11s Hyperglide Compatible (4 Pawls)
- Materials: AL6061-T6 Body & AL7075-T6 Axle
- Braking Mechanism: Rim Brake (V-Brake, U-Brake, etc)

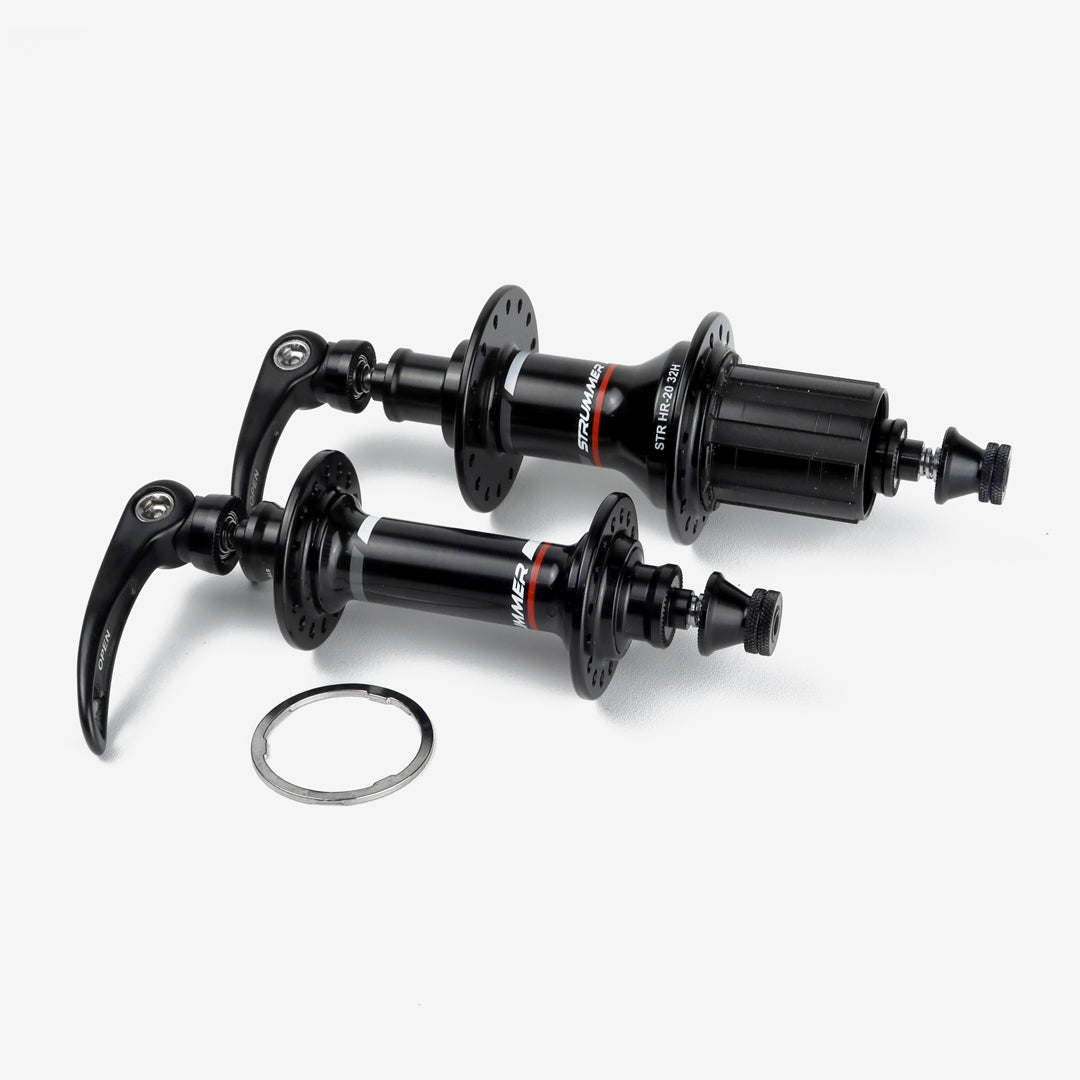

- Included: 1.85 mm Rear Hub Spacer, Front & Rear Quick Release Skewers Set
Wheelbuilding

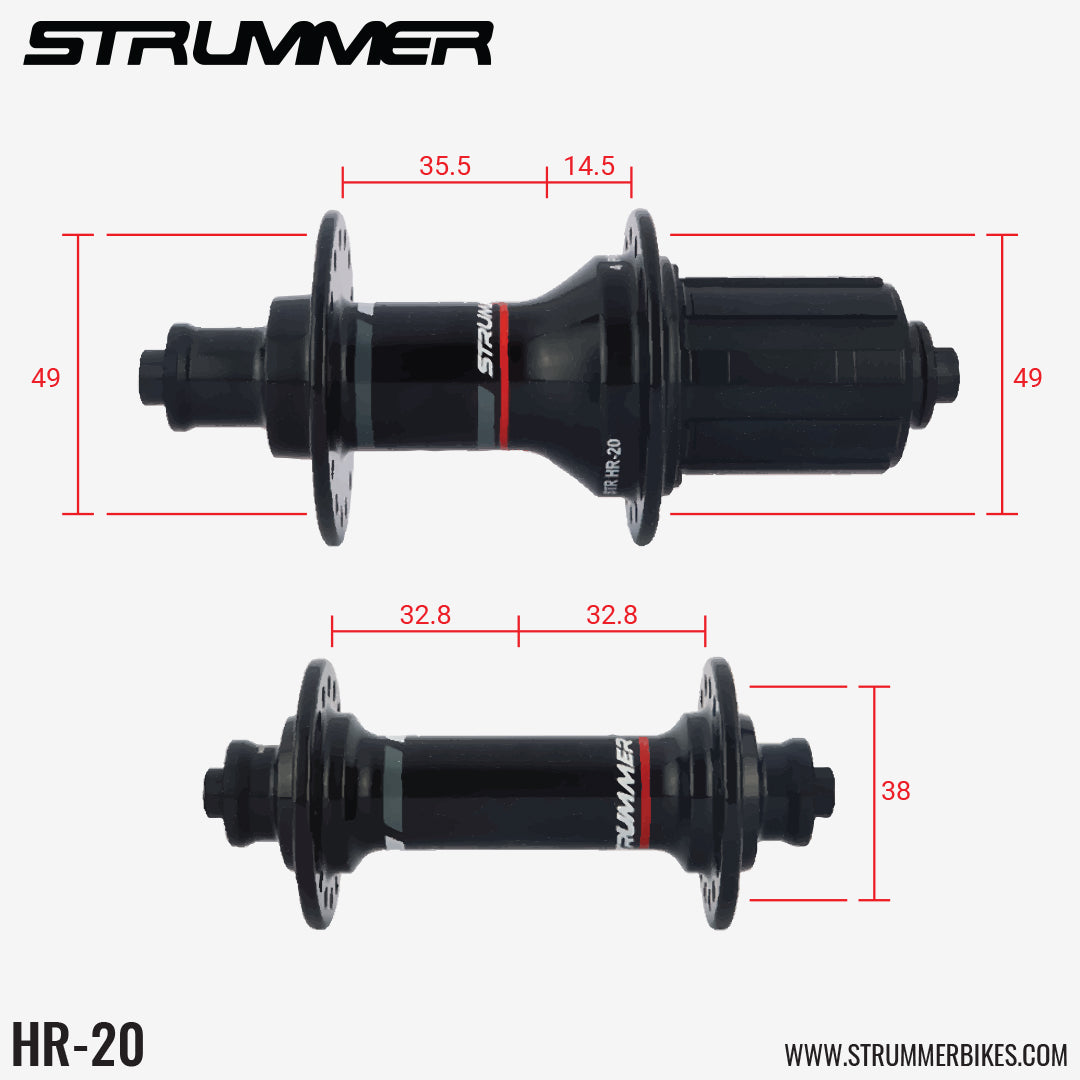

Spoke Sizing Guide using Strummer HR-20 Hub Set (32/32H) for Strummer Race 700 Rims (32/32H) & Strummer AeroRoad Rims (32/32H)
| Spoke Guide | Radial (mm) | 1 Cross (mm) | 2 Cross (mm) | 3 Cross (mm) | ||||
| Left | Right | Left | Right | Left | Right | Left | Right | |
| Front Hub (32H) | 272.0 | 272.0 | 273.5 | 273.5 | 277.8 |
277.8 |
284.2 |
284.2 |
| Rear Hub (32H) | 266.9 | 264.9 | 268.9 |
266.9 |
274.5 |
272.6 |
282.8 |
280.9 |
Replacement Bearings
Front Hub: 6901-2RS (2 Pcs)
Rear Hub: 15267-2RS (1 Pcs) & 6802-2RS (1 Pcs)
Freehub Body: 15267-2RS (2 Pcs)
Available Spare Parts & Service Tools
Strummer Pawl & Ratchet Special Grease
Freehub Body Rubber Seal
1.85 mm Sprocket Spacer
