The OXO HB-120 hub is specifically designed for BMX, prioritizing performance and durability. The front and rear hubs use sealed bearings to provide smooth rotation while making maintenance easier.
Equipped with a 6-pawl system that delivers a quick response with a distinct, assertive sound. Made from strong and durable aluminum alloy, this hub offers optimal performance along with a solid, premium look for your BMX setup.
OXO HB-120 Hub Specifications

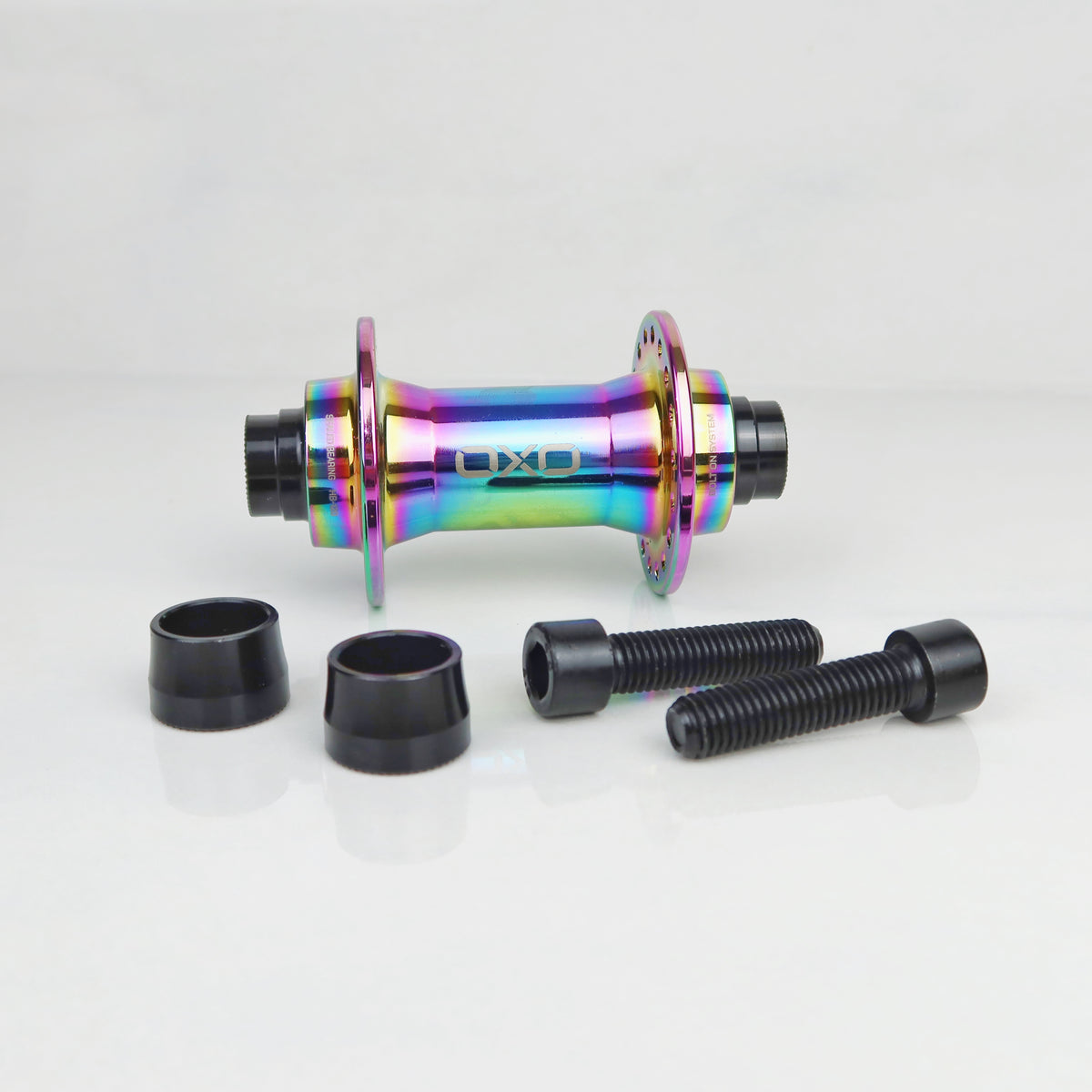

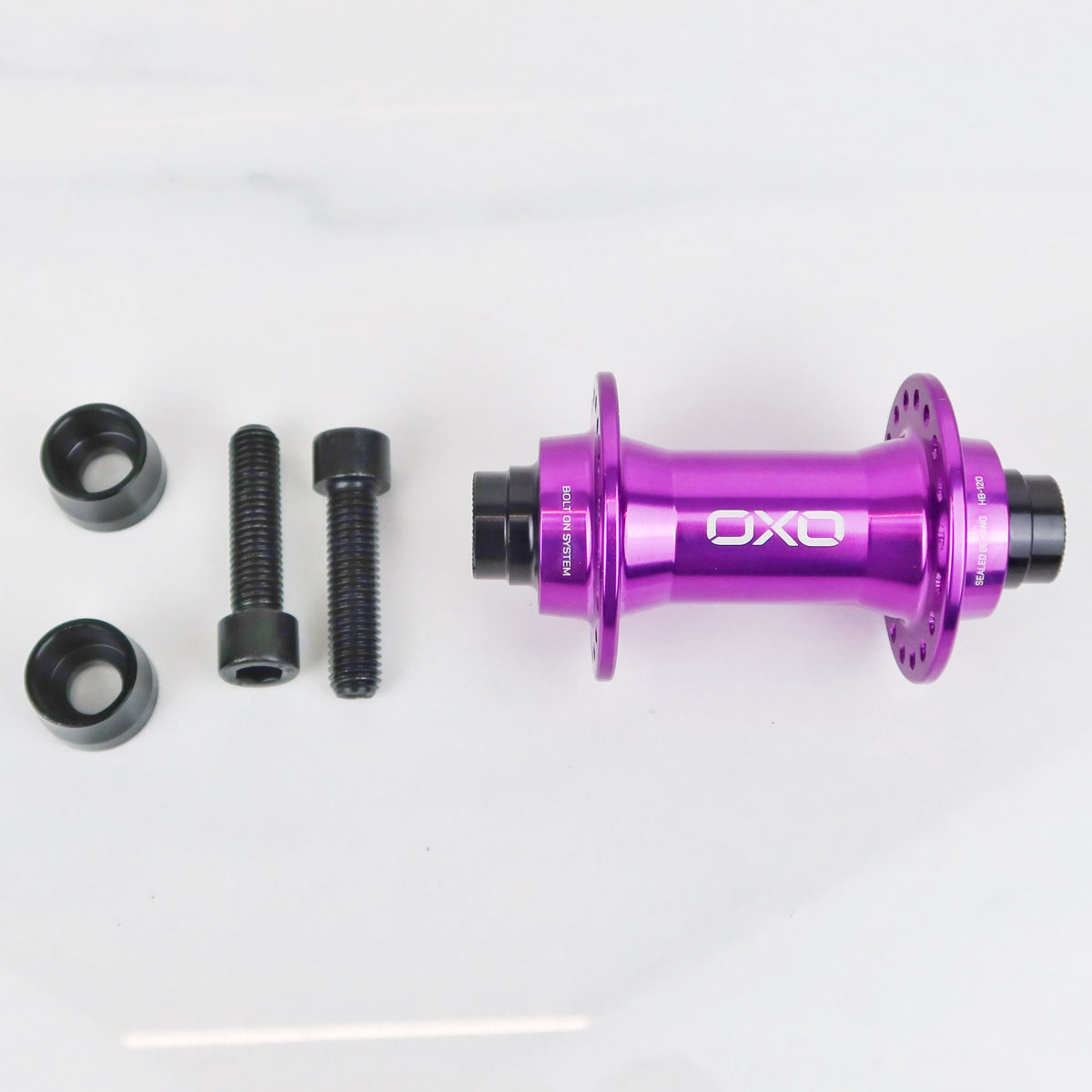

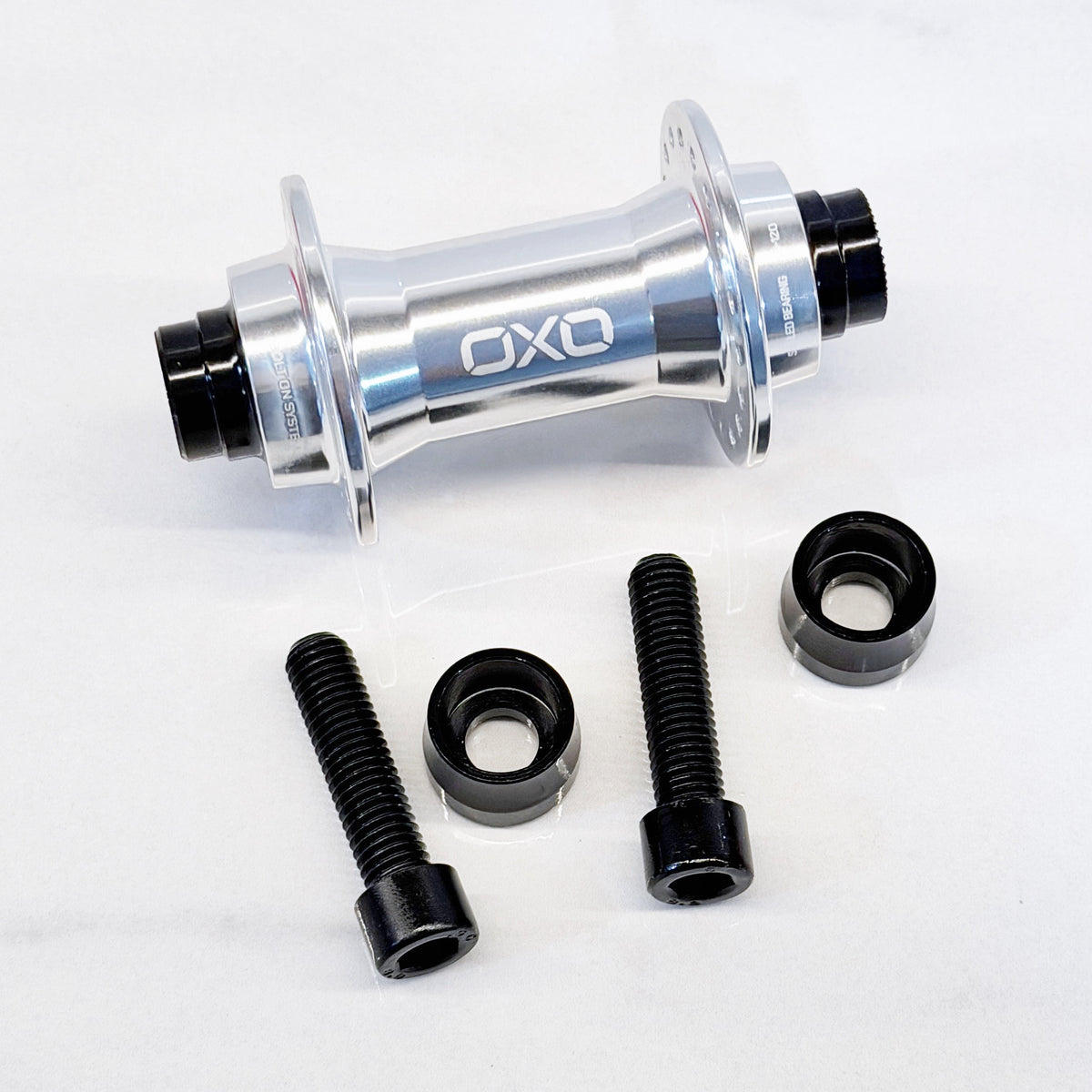

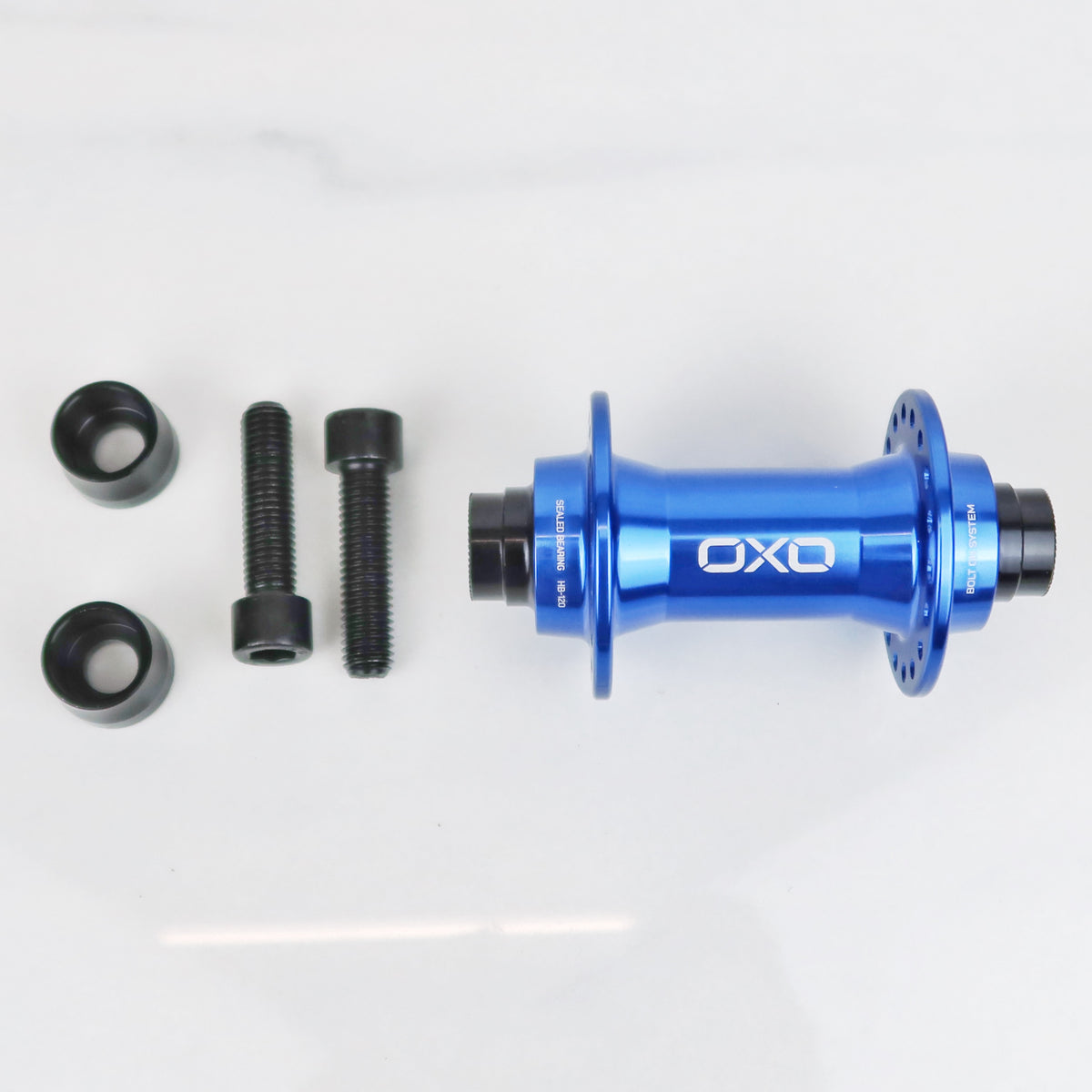

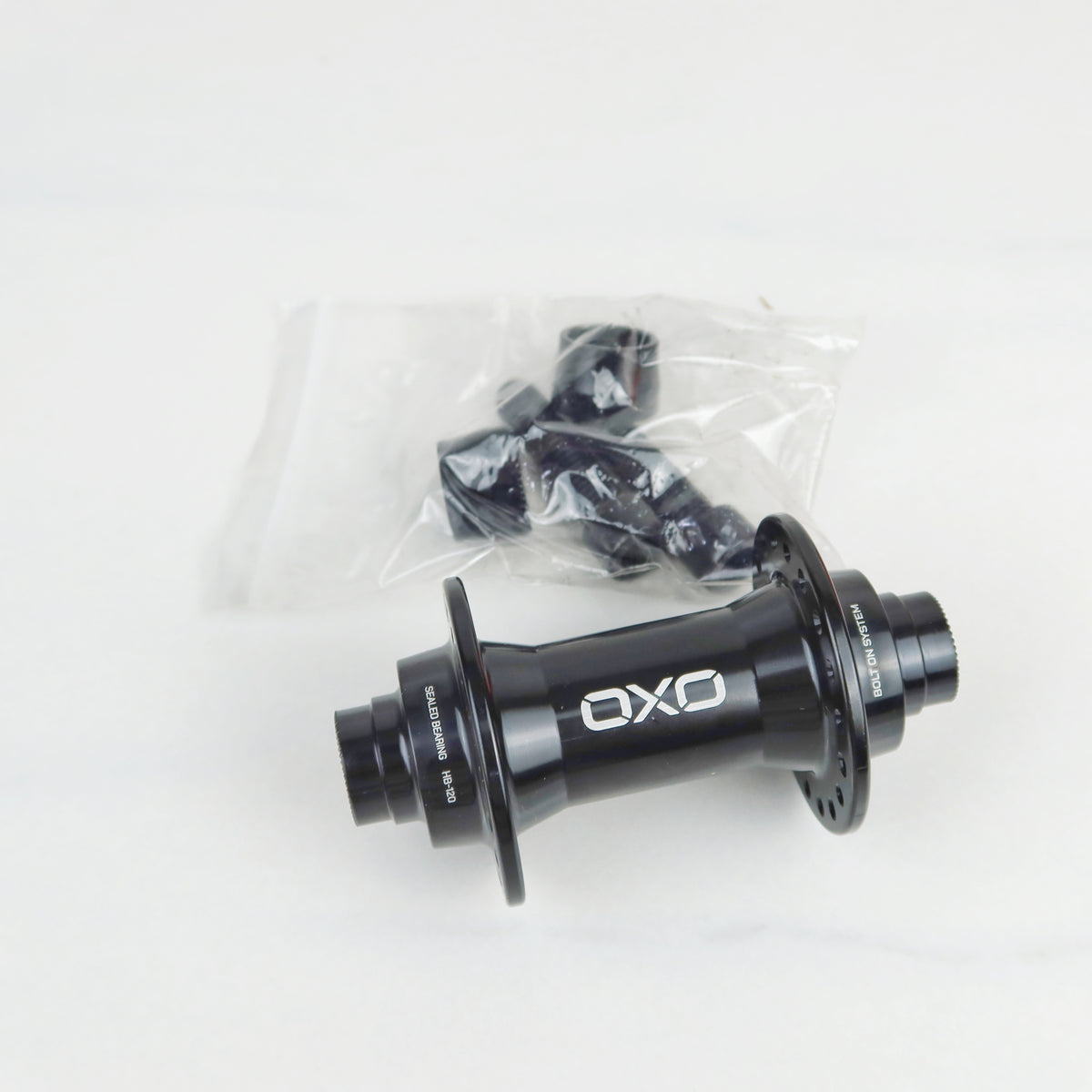

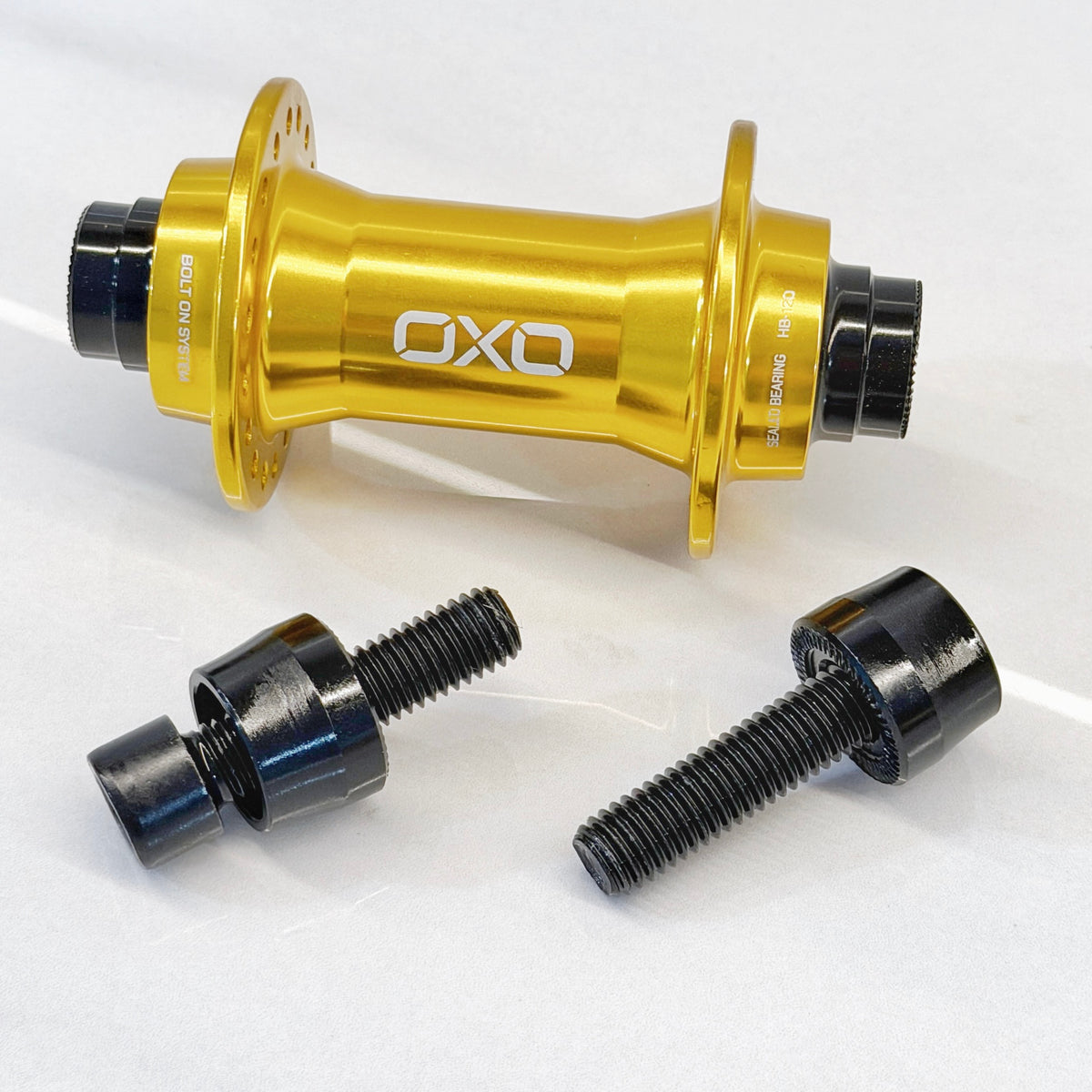

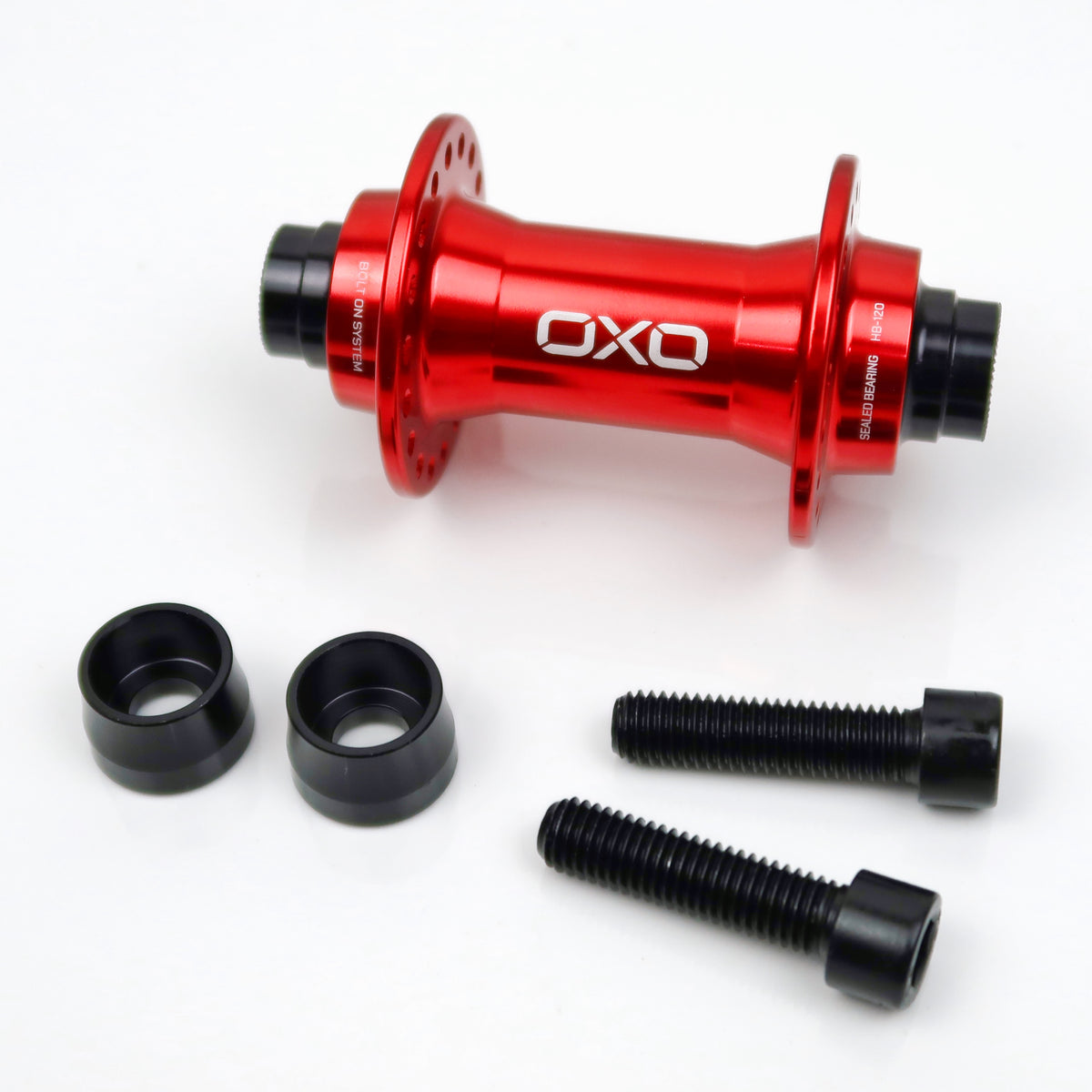

Front Hub: M10 x 100 mm, 220 grams (including bolts)

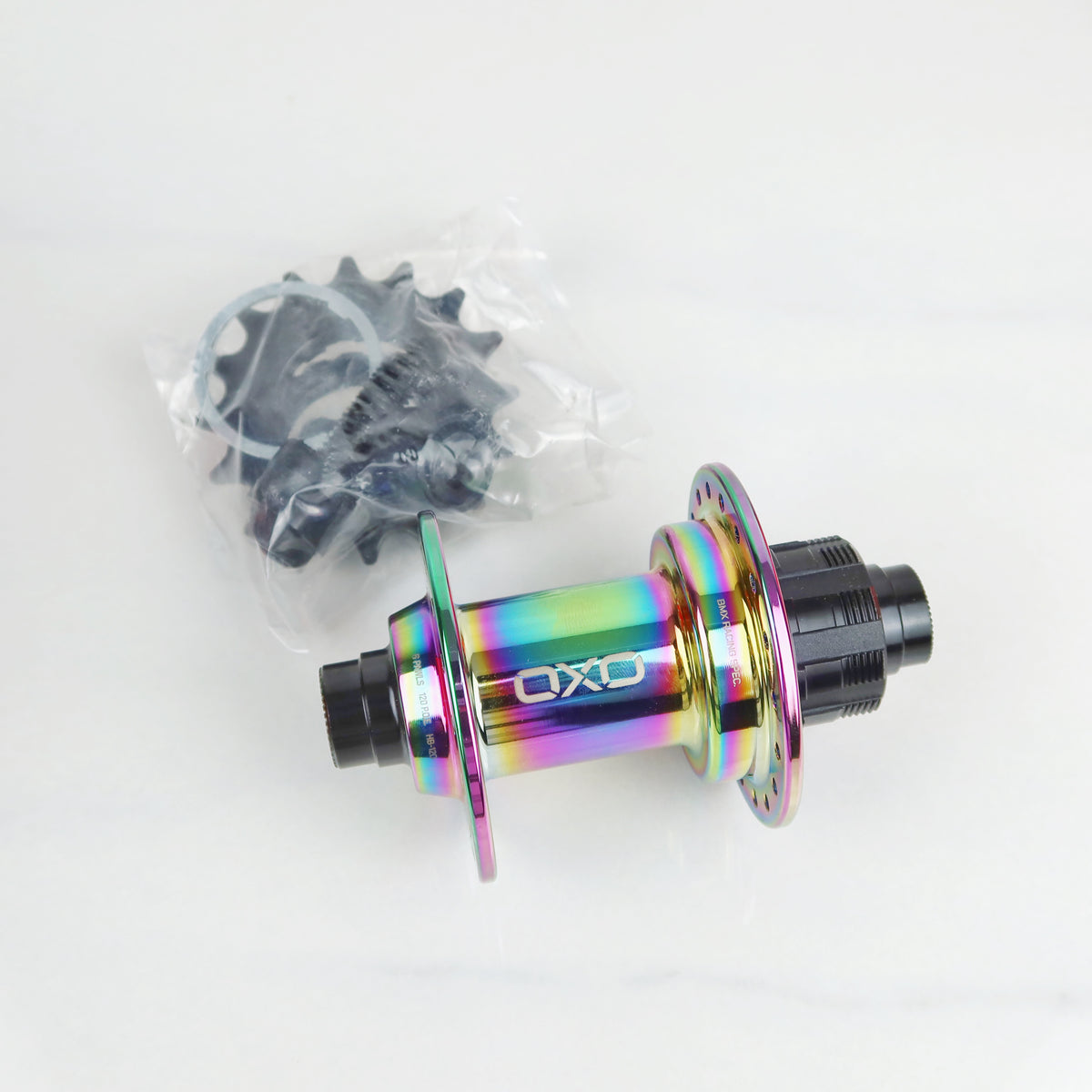

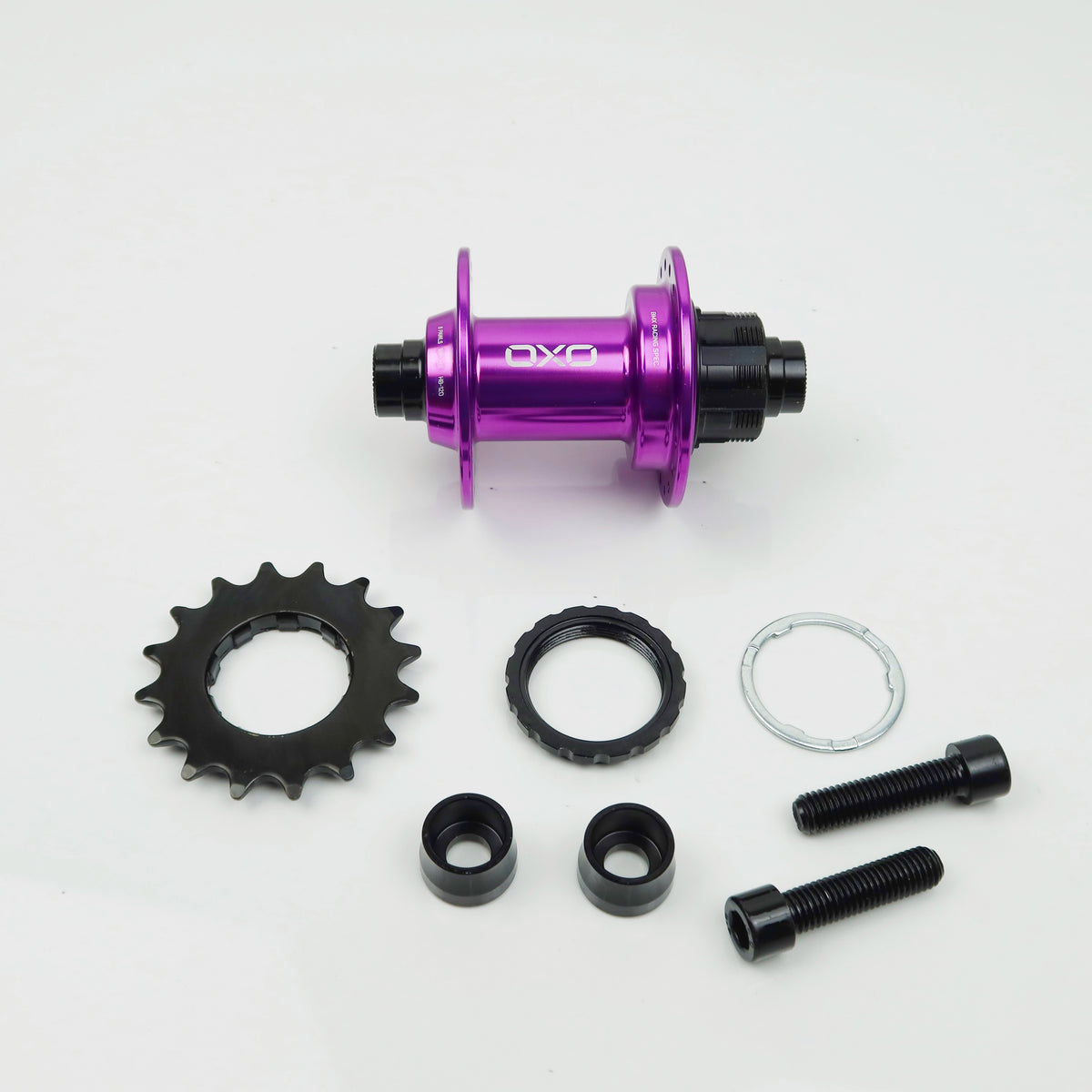

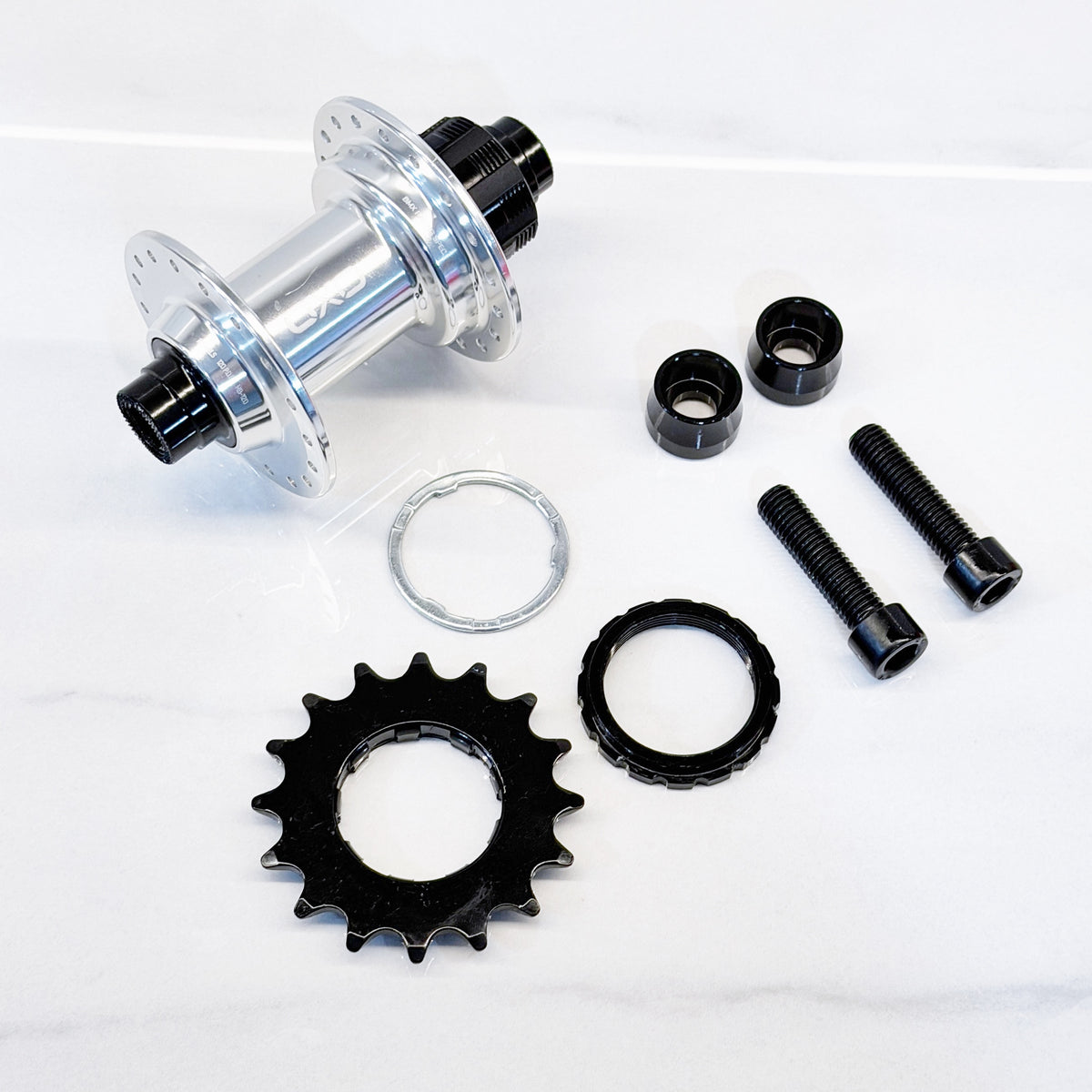

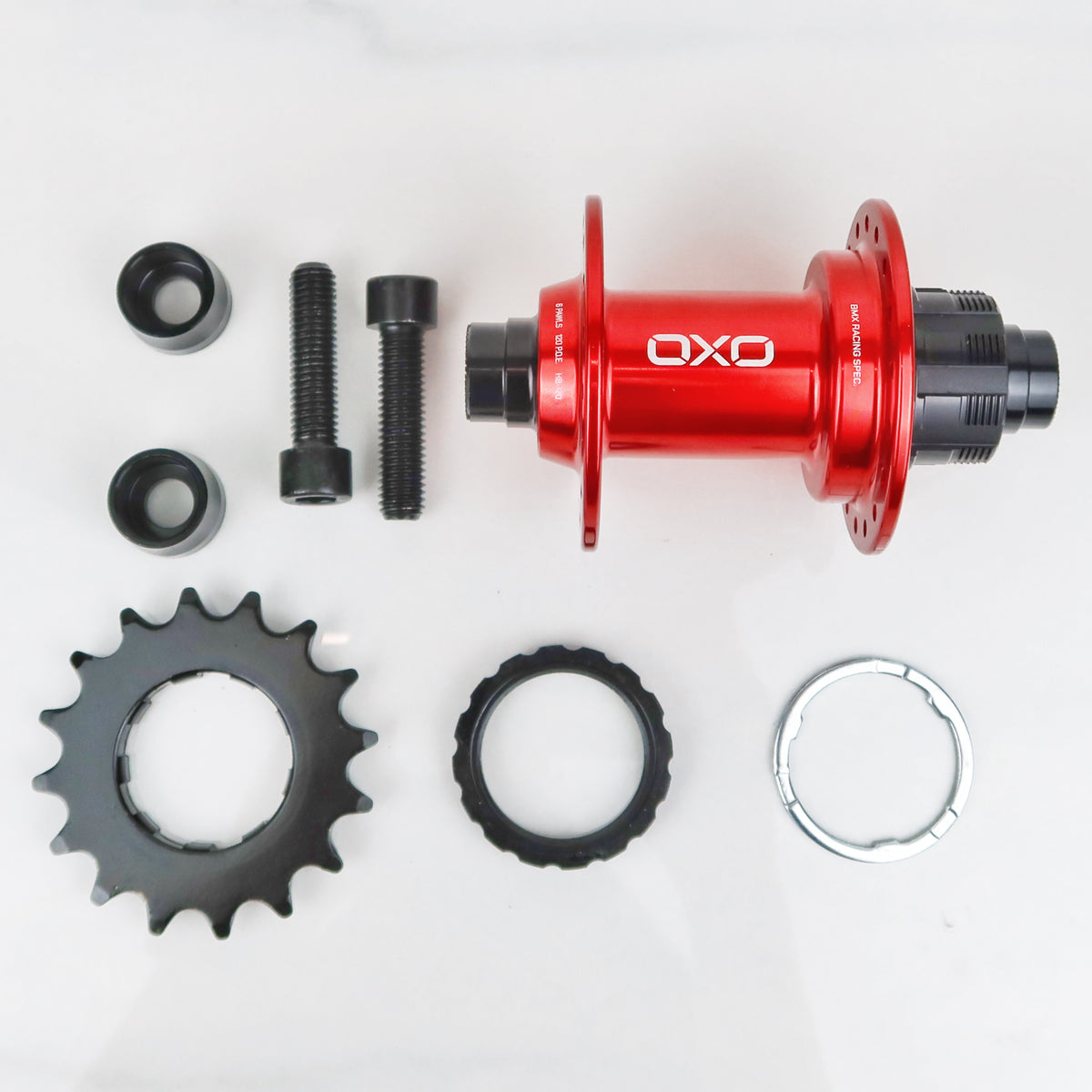

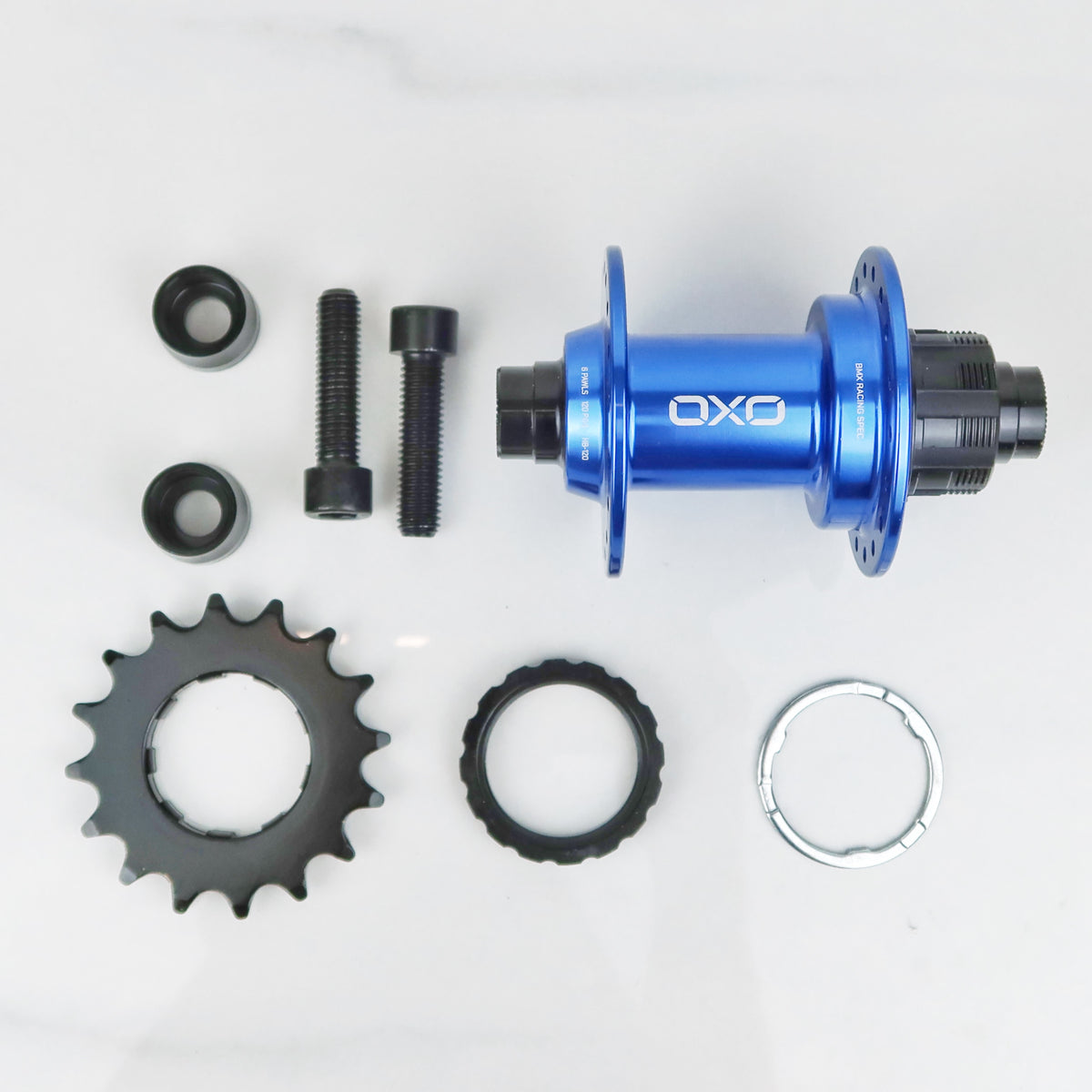

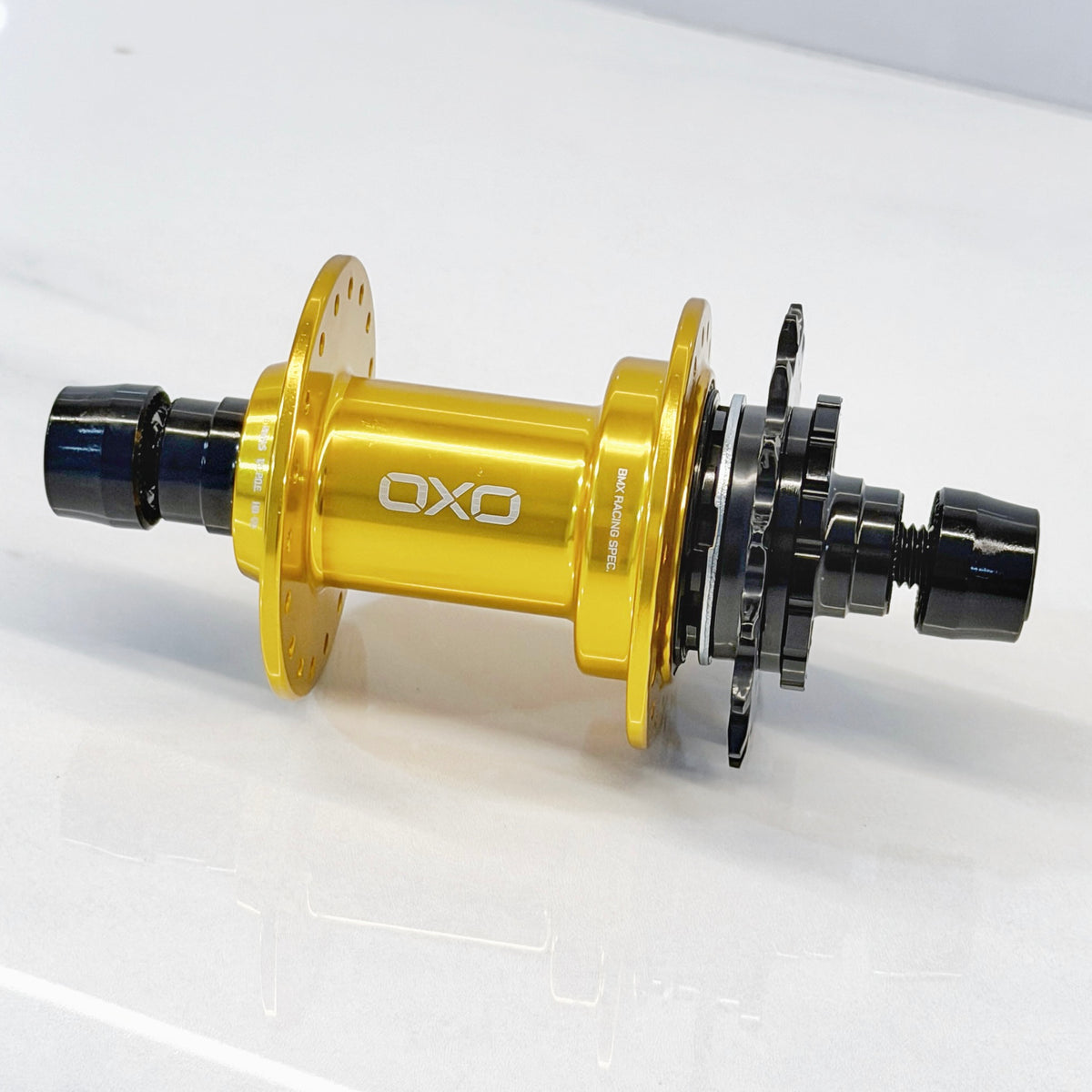

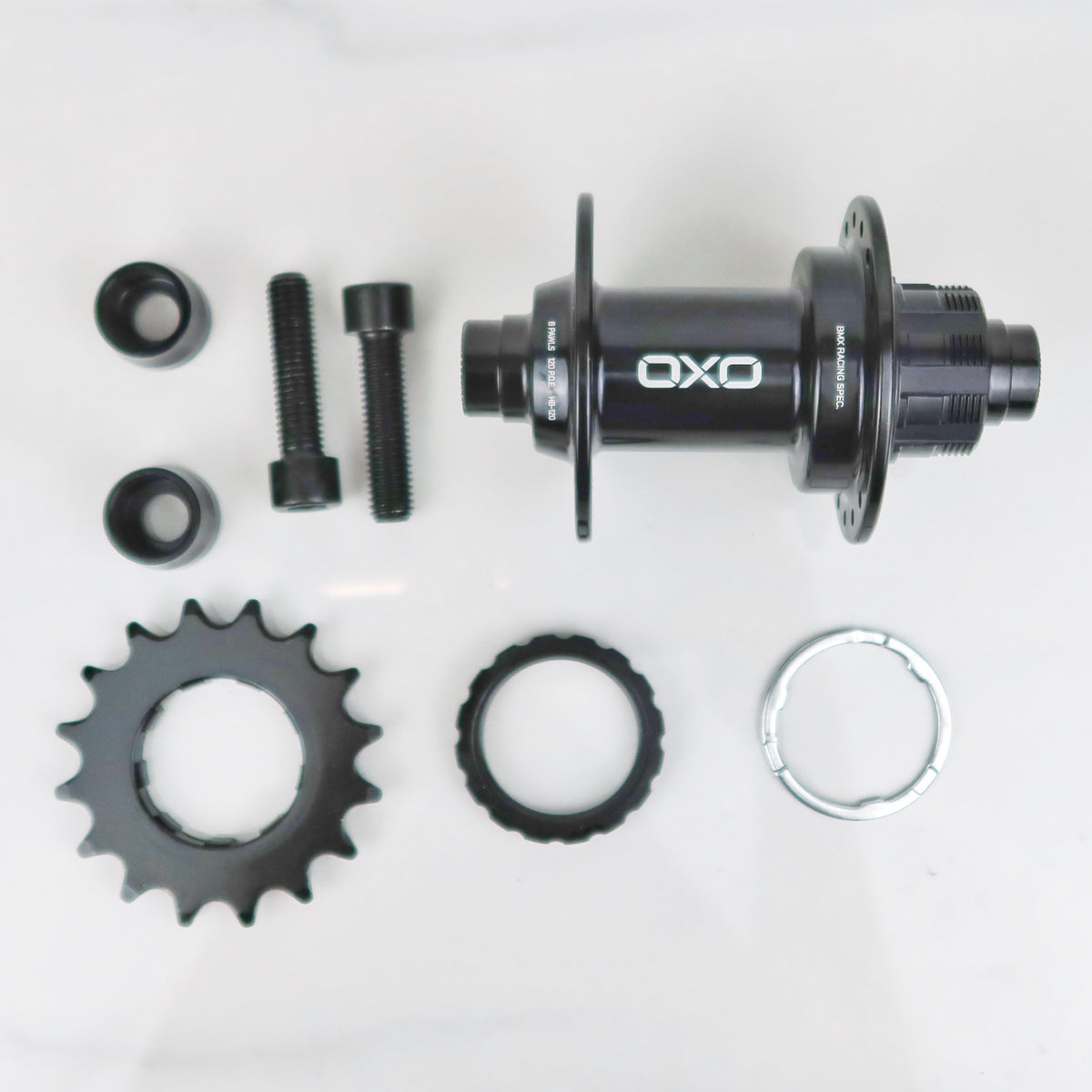

Rear Hub: M10 x 110 mm, 405 grams, Rim Brake, 6 Pawls, 120 Engagement Points
Material: Aluminum Alloy Hub, Steel Bolts
Spare Parts
| Position | Bearing Type | Dimensions (ID × OD × Thickness) | Quantity | Steel (SKU) | Hybrid Ceramic (SKU) |
|---|---|---|---|---|---|
| Front Hub | 6902-2RS | 15 × 28 × 7 mm | 2 pcs | LAHAR-00011 | LAHAR-00017 |
| Rear Hub | 6902-2RS | 15 × 28 × 7 mm | 2 pcs | LAHAR-00011 | LAHAR-00017 |
| Freehub Body | 6802-2RS | 15 × 24 × 5 mm | 2 pcs | LAHAR-00009 | LAHAR-00018 |
| Freehub Body | 6902-2RS | 15 × 28 × 7 mm | 1 pcs | LAHAR-00011 | LAHAR-00017 |
Match the code, dimensions, and seal with the old bearing before purchasing. Hybrid Ceramic is an upgrade option if the type and size are suitable.
Rear Hub Maintenance Notes (Freehub)
Grease lubricates the parts that rub against each other in the freehub mechanism of the rear hub, helping reduce friction and wear. Removing all the grease solely to obtain a louder sound is not recommended. Without adequate lubrication, components may wear out or become damaged more quickly, shortening their service life. Use the type and amount of lubricant recommended for product maintenance.
