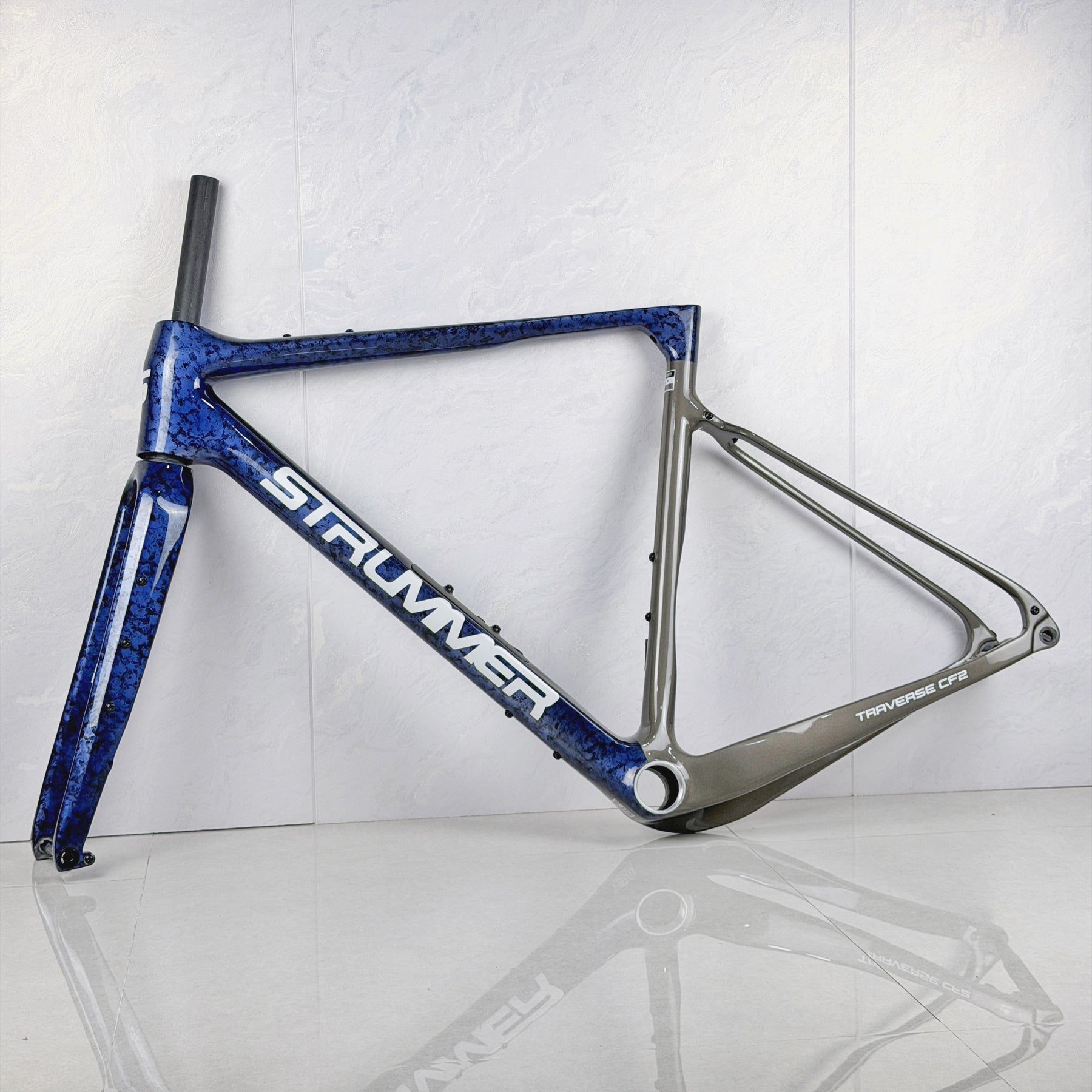

The Strummer Traverse CF2 is designed to deliver optimal performance in a variety of conditions, from paved roads to gravel routes and rocky roads.
The frame and fork use Toray T800 carbon fiber to deliver a combination of stiffness, strength, low weight, and riding comfort.
The asymmetric chainstay design helps increase stiffness on the drivetrain side, maintain stability on the non-drive side, and provide more optimal chainring clearance.
The top tube features a Vibration Dampening Zone designed to help reduce road vibrations, improving comfort on rough roads and long-distance gravel routes.

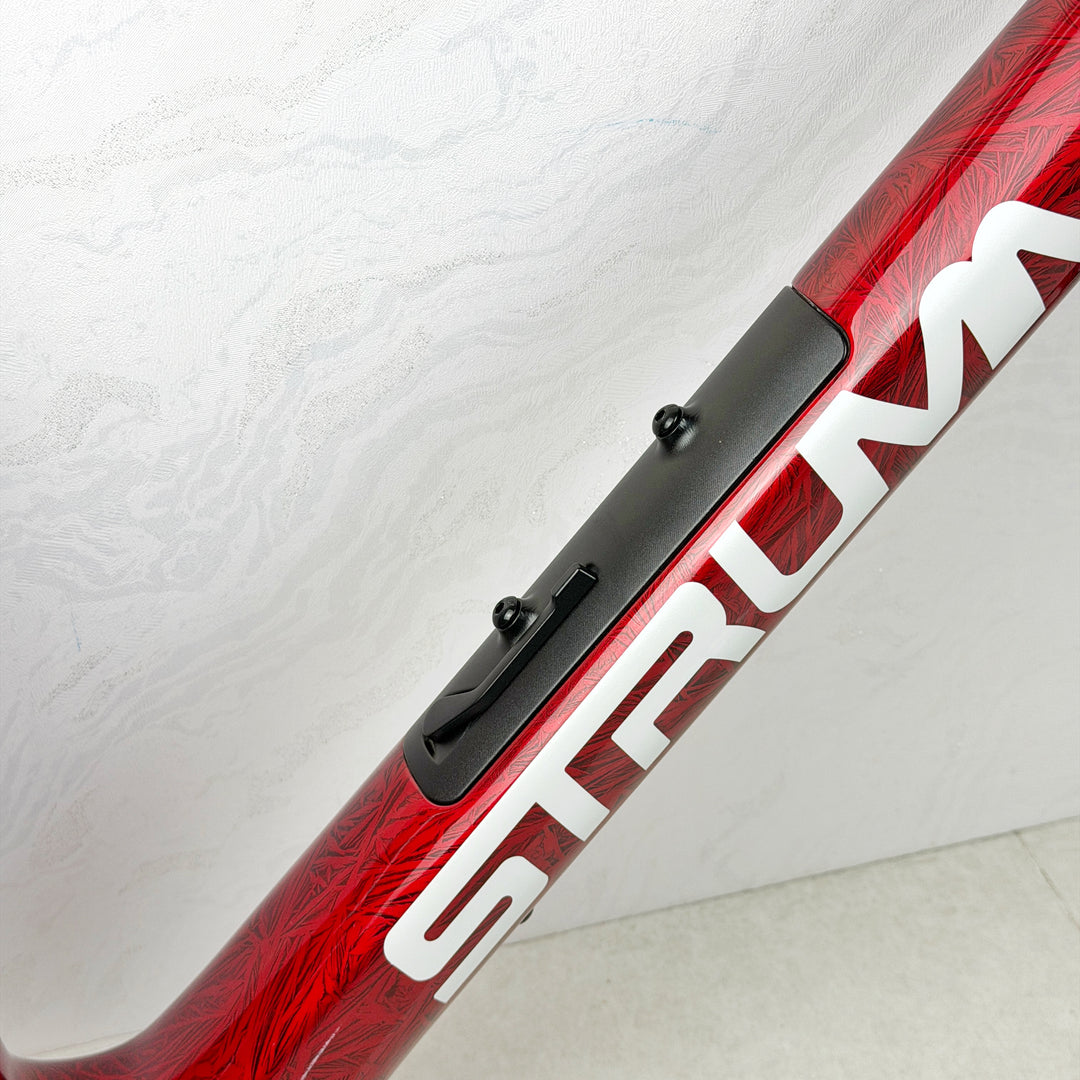

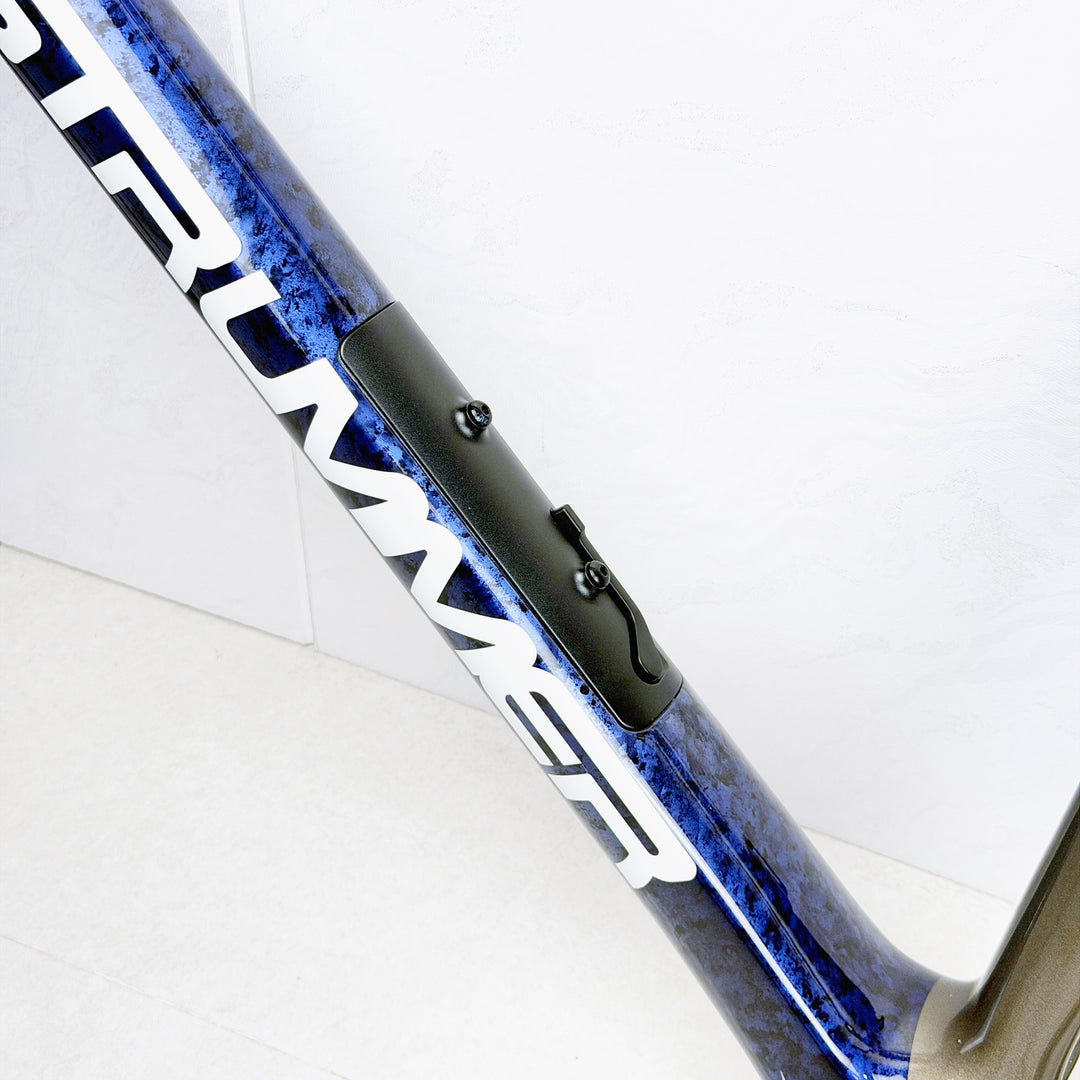

Integrated Downtube Storage
The Traverse CF2 features internal downtube storage for carrying an inner tube, tire levers, a repair kit, a compact pump, or other small items.
A custom storage bag that fits inside the downtube is included.
Fully Internal Cable Routing
The frame and fork feature a fully internal cable routing system for a cleaner, neater look.
The Traverse CF2 is compatible with mechanical, Shimano Di2, and SRAM AXS groupsets. The frame also supports internally routed dropper posts.

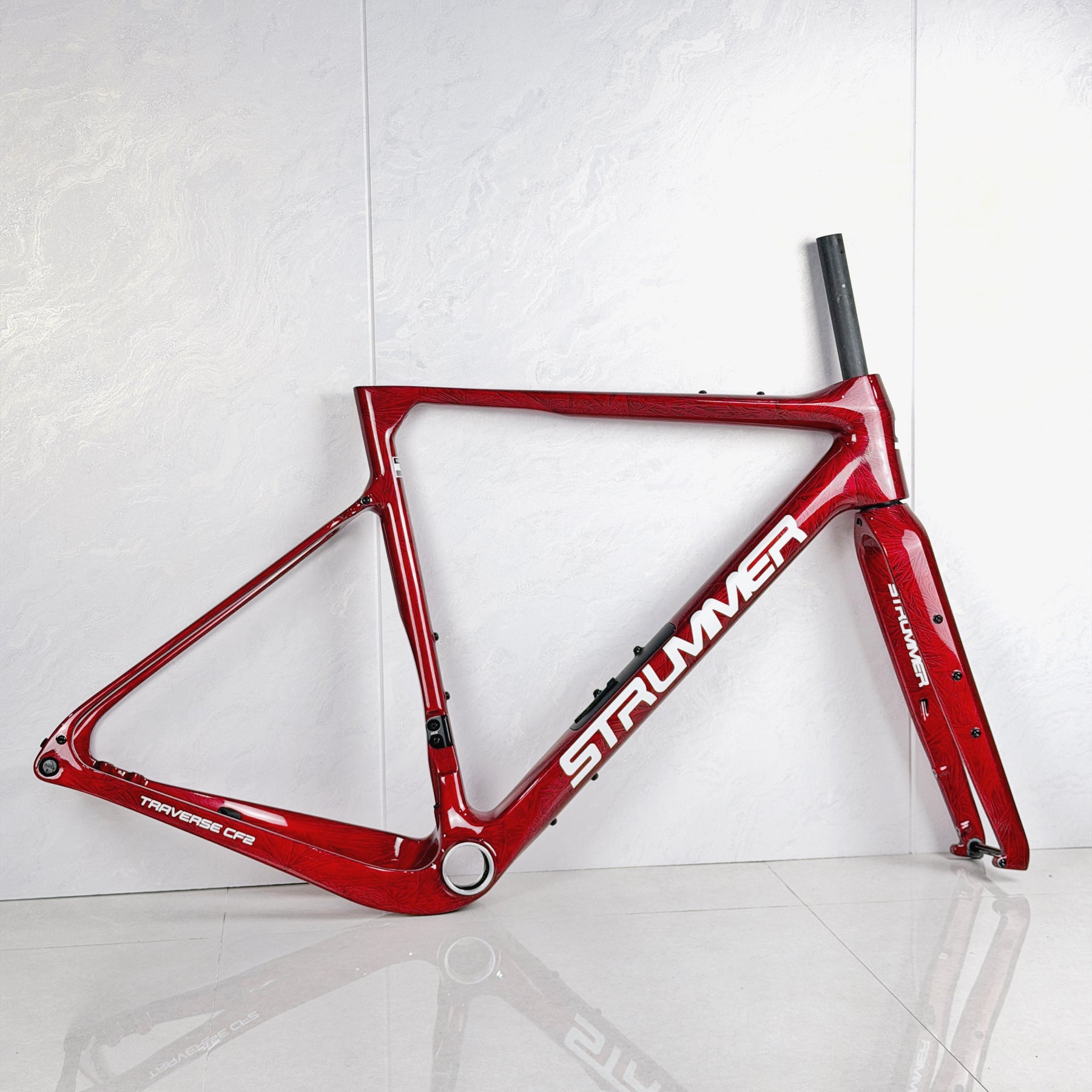

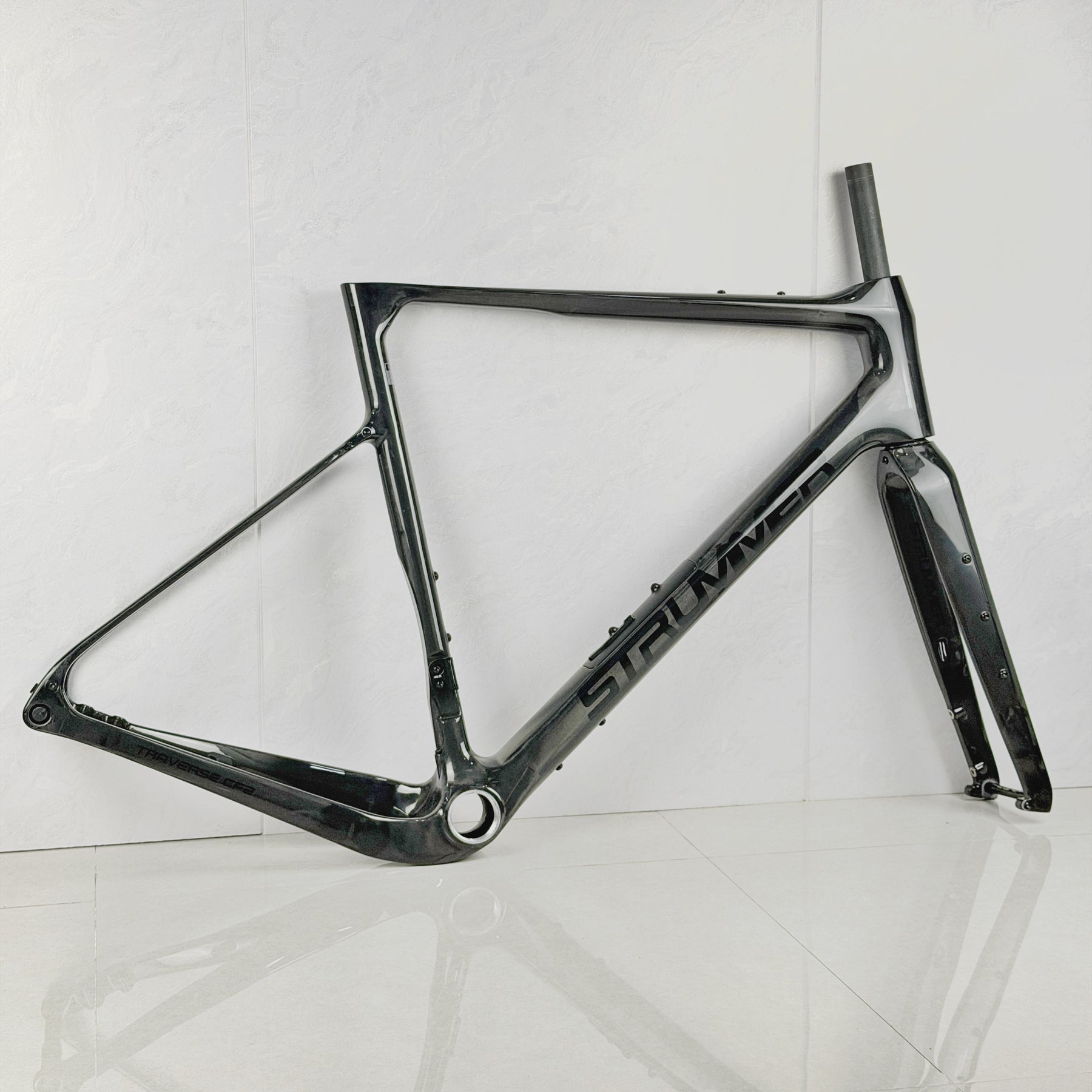

Sold as a frameset consisting of a frame and fork.
Key Features
-
Toray T800 carbon fiber frame and fork
-
Asymmetric chainstay design
-
Vibration Dampening Zone on the top tube
-
Integrated Downtube Storage, including storage bag
-
Fully internal cable routing through the frame and fork
-
Compatible with mechanical groupsets, Shimano Di2, and SRAM AXS
-
Compatible with internally routed dropper posts
-
UDH or Universal Derailleur Hanger
-

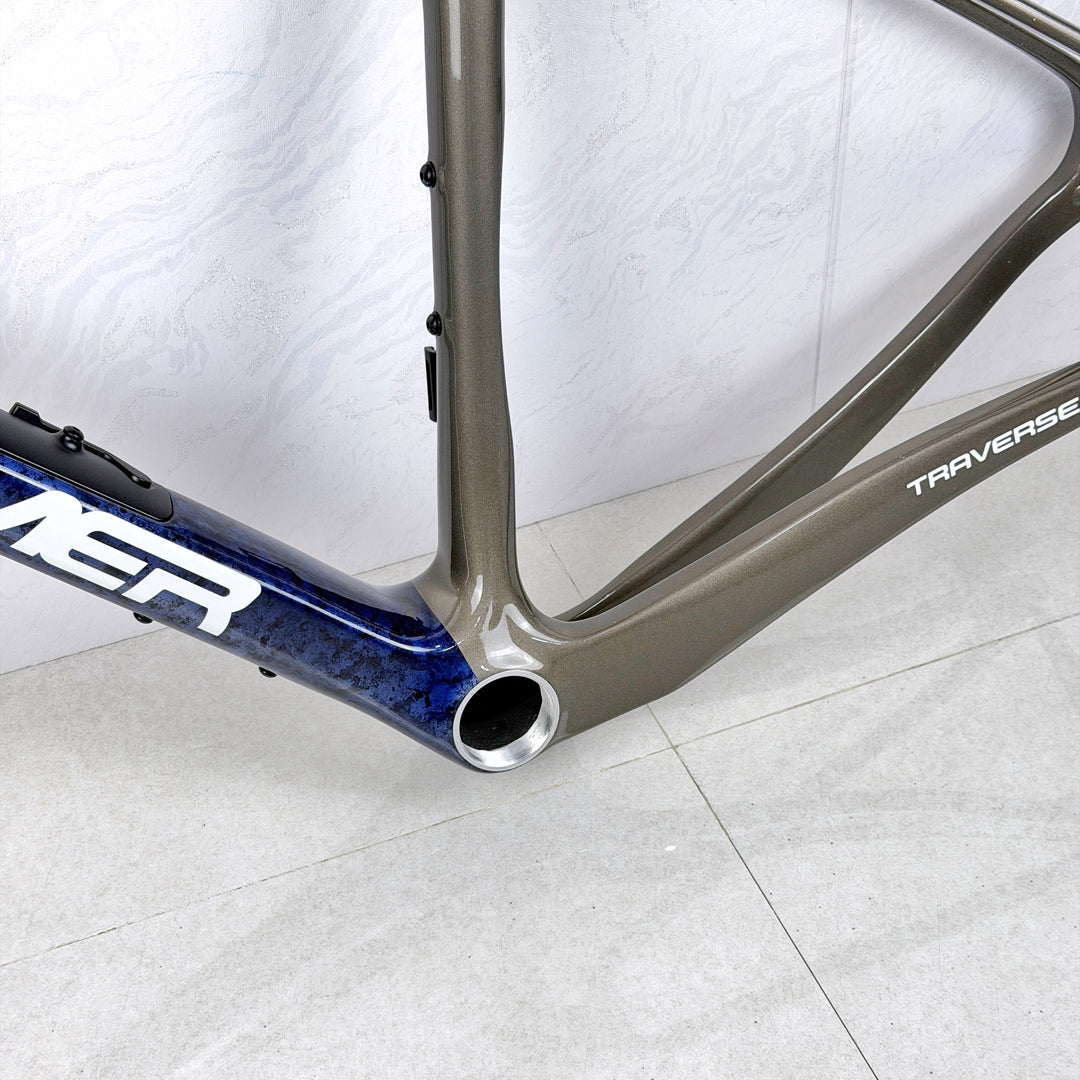

Threaded T47 bottom bracket with a 68 mm shell width
-
Maximum tire clearance of 700 × 50c on the frame and fork
-
Disc brakes with flat-mount attachments
-
12 × 100 mm front and 12 × 142 mm rear thru-axles
-
Front and rear thru-axles included
-
Flush thru-axle design with the frame and fork
-
Fully integrated 52/52 mm headset with 45°/45° bearings
-
Three additional mounts on each side of the fork
Strummer Traverse CF2 Specifications
| Specifications | Details |
|---|---|
| Product Type | Carbon Gravel Frameset |
| Frame and Fork Material | Toray T800 Carbon Fiber |

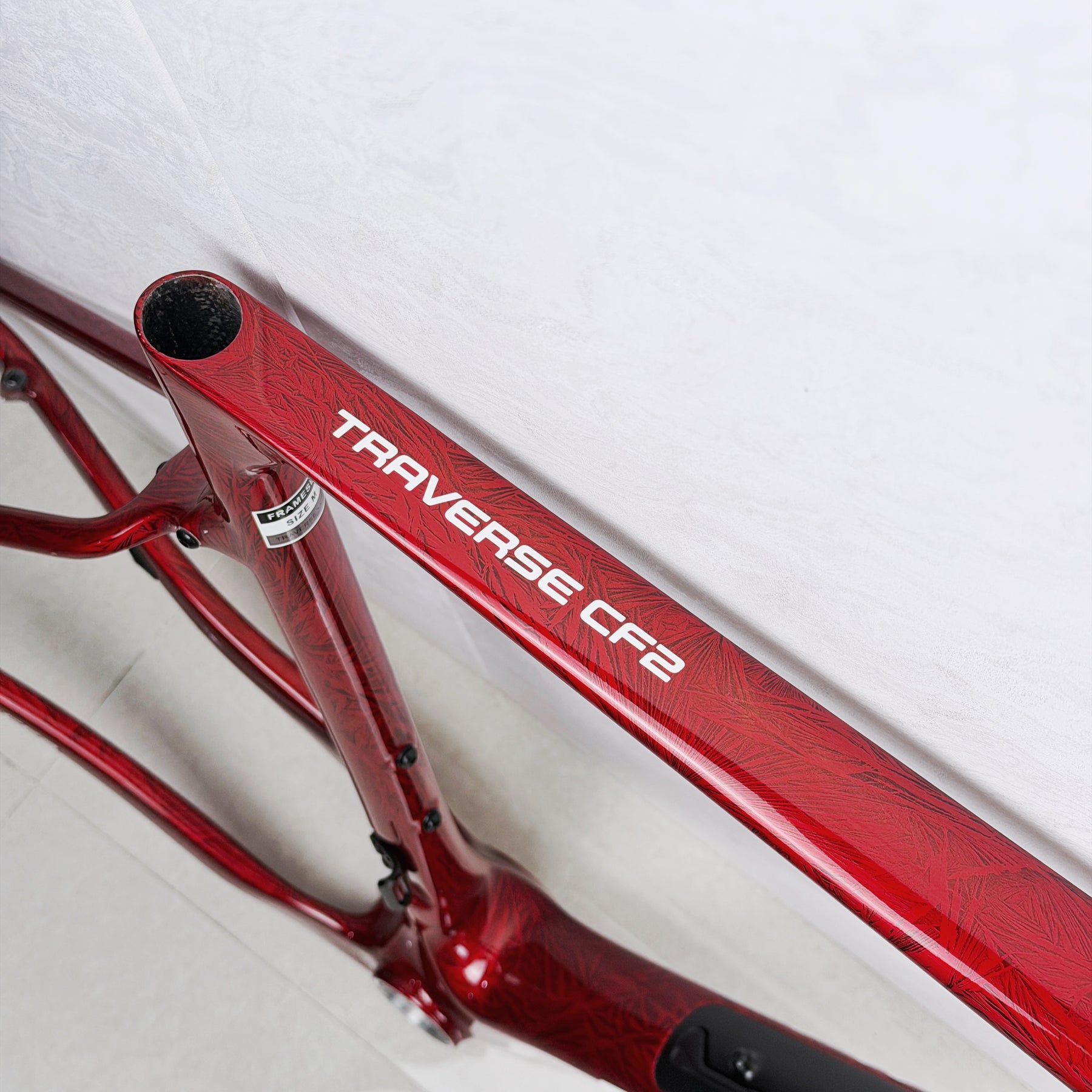

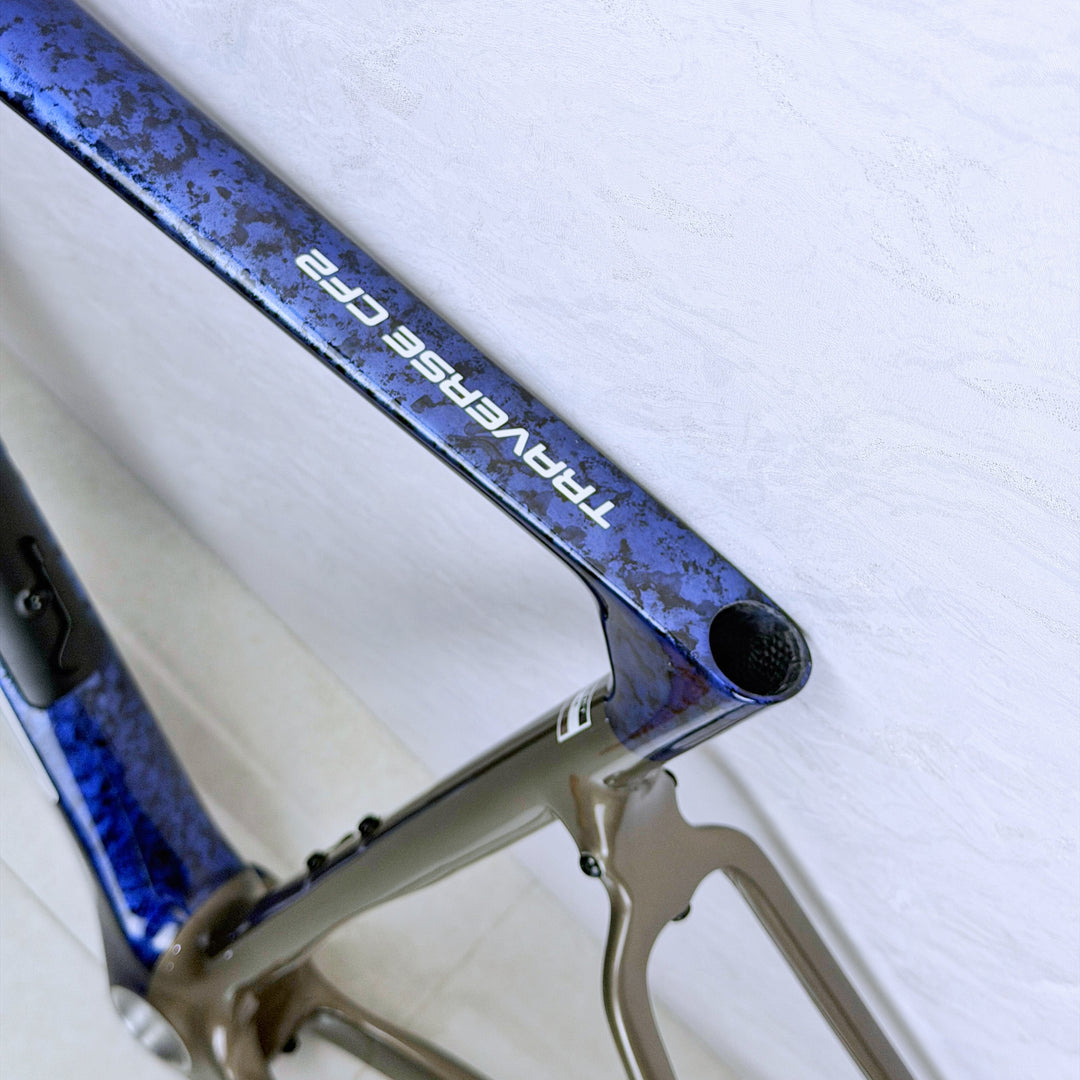

| Seatpost | Round, 27.2 mm diameter |
| Dropper Post | Compatible with internal cable routing |
| Groupset Compatibility | Mechanical, Shimano Di2, and SRAM AXS |
| Storage | Integrated Downtube Storage, including storage bag |
| Dropout Type | UDH — Universal Derailleur Hanger |

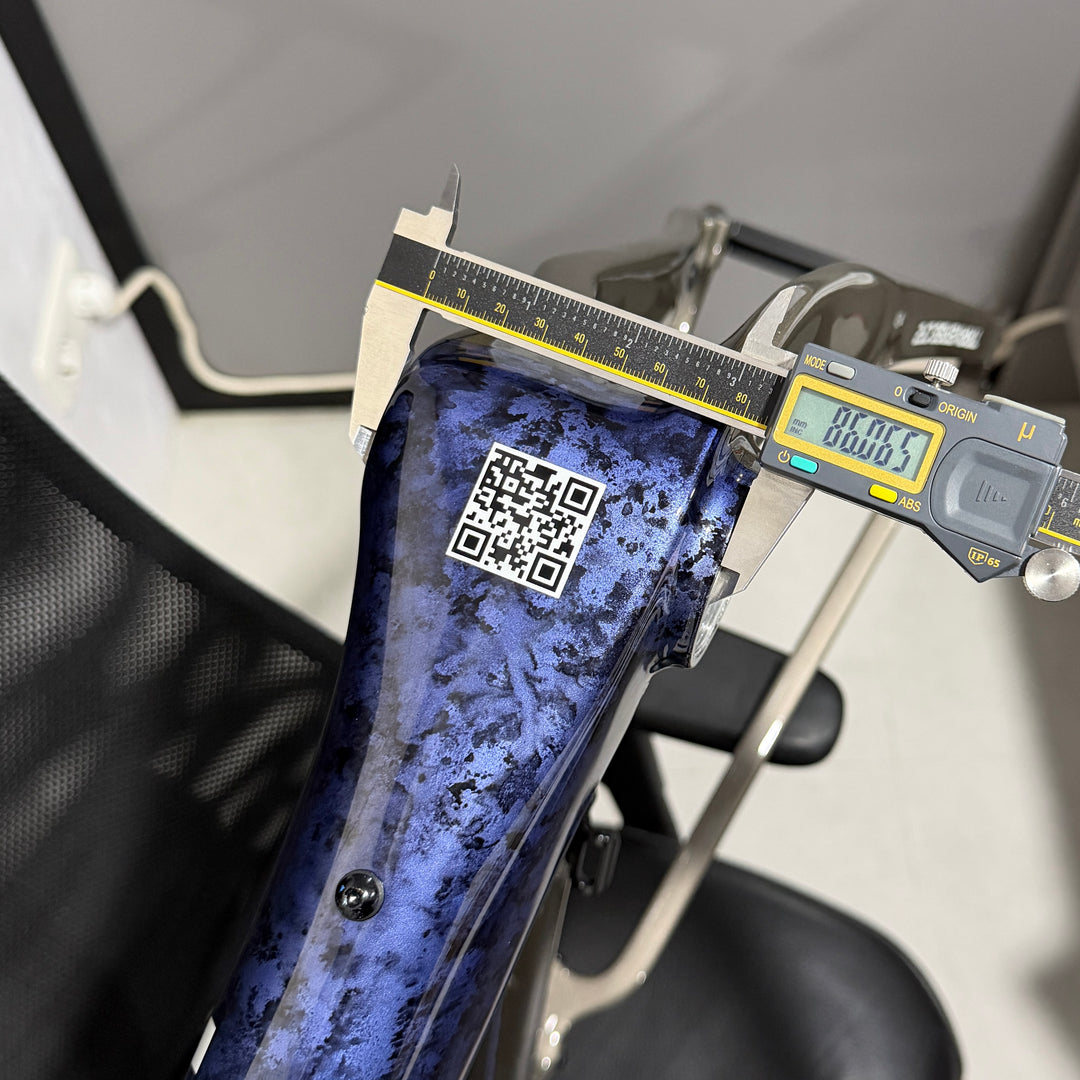

| Bottom Bracket | Threaded T47, 68 mm shell width |
| Maximum Tire Clearance | 700 × 50c, front and rear |
| Headset | Fully Integrated 52/52 mm |
| Headset Bearing Angle | 45°/45°, upper and lower |

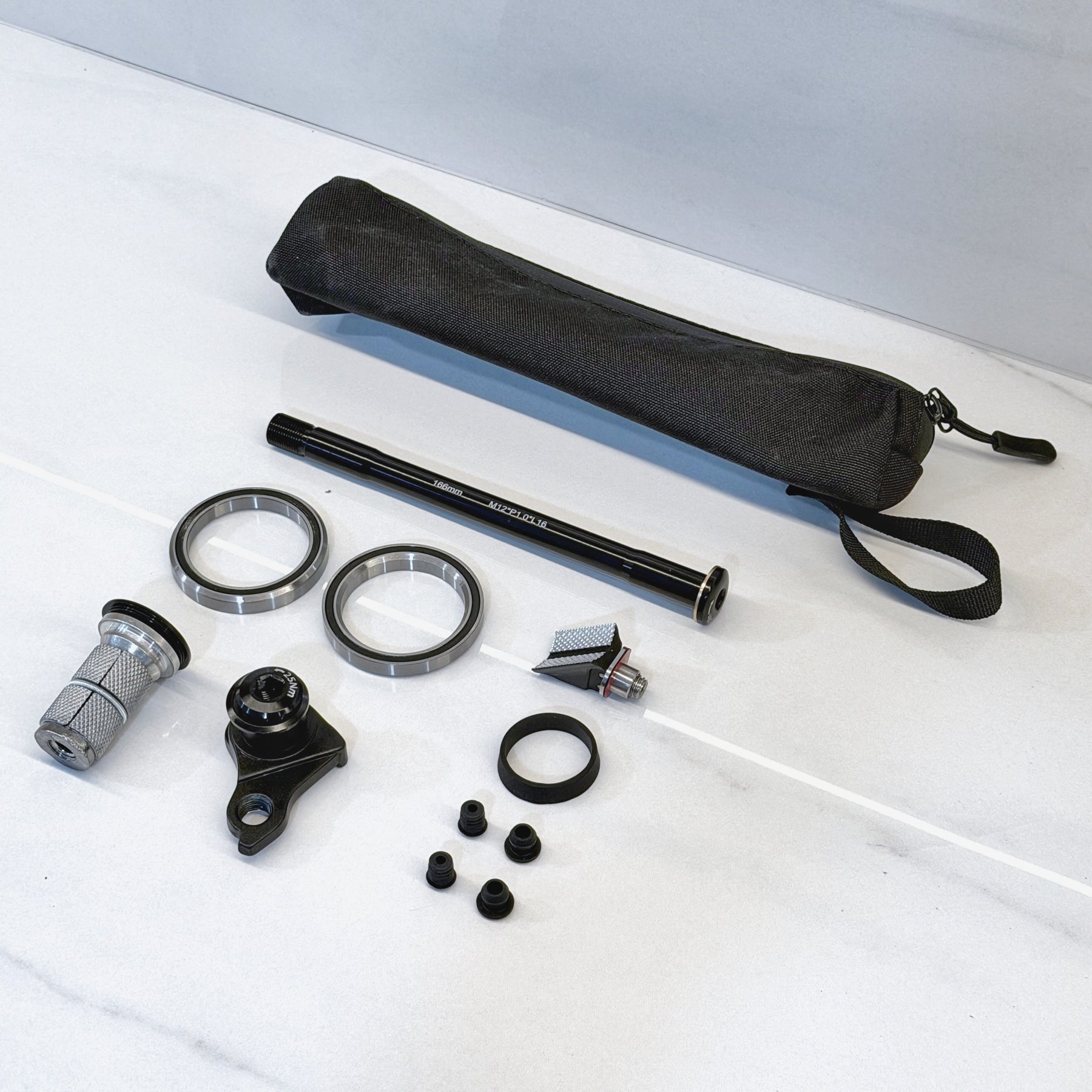

| Headset Bearings | Included in the purchase package |
| Cable Routing | Fully Internal Cable Routing in frame and fork |
| Braking System | Disc Brake, Flat Mount |
| Front Hub Size | 12 × 100 mm Thru Axle |
| Rear Hub Size | 12 × 142 mm Thru Axle |
| Thru Axle | Front and rear included, flush design |
Chainring Compatibility
| Crankset Brand | Configuration | Maximum Size |
|---|---|---|
| Shimano | 2x | 54/40T |
| Shimano | 1x | 42T |
| SRAM | 2x | 54/41T |
| SRAM | 1x | 42T |
For 2x configurations, the figures indicate the maximum combination of outer and inner chainrings. For example, 54/40T means a maximum 54T outer chainring and 40T inner chainring.
Smaller chainrings can generally be used. Final compatibility depends on the crankset model, chainline, chainring offset, spindle length, front derailleur position, and clearance between the chainring and chainstay.

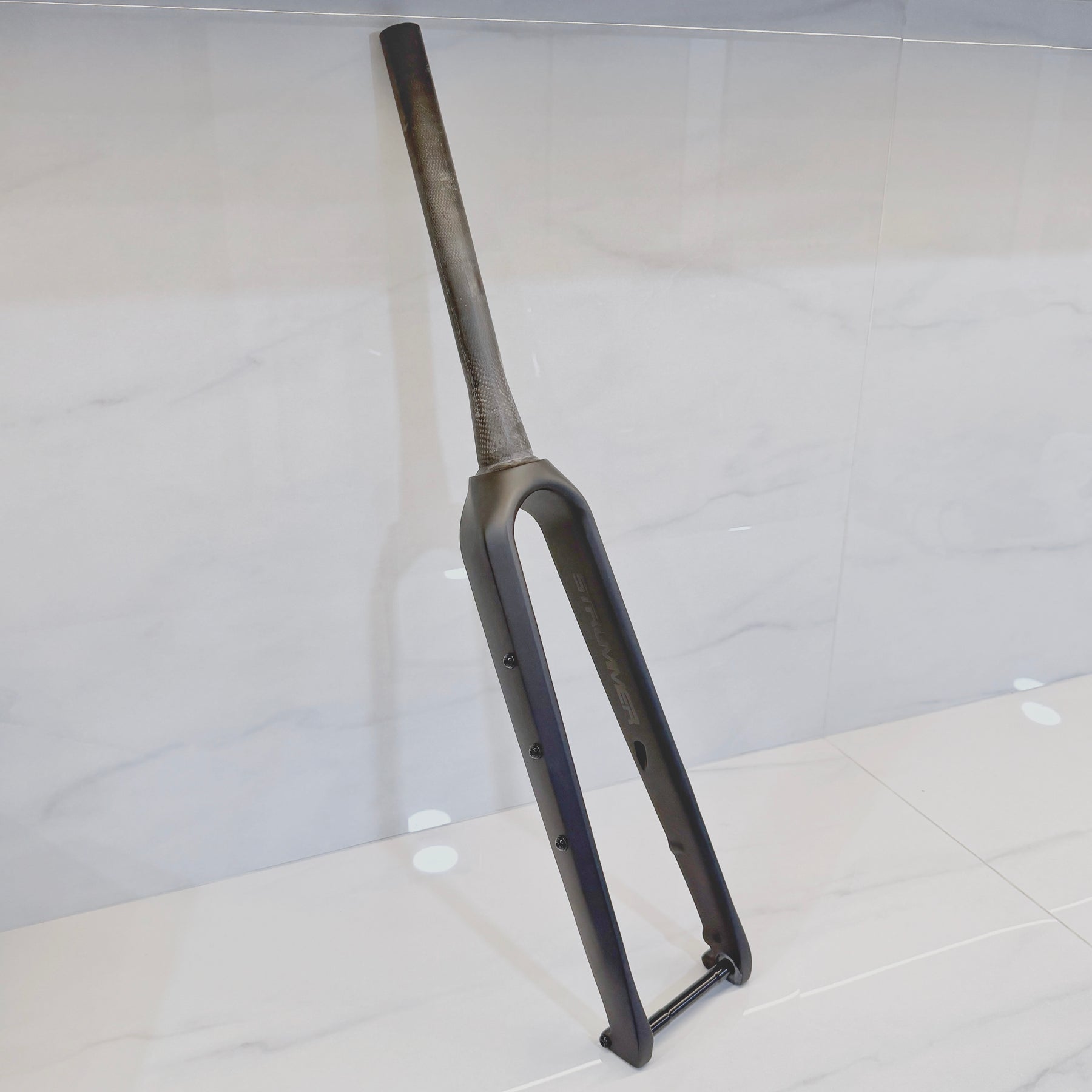

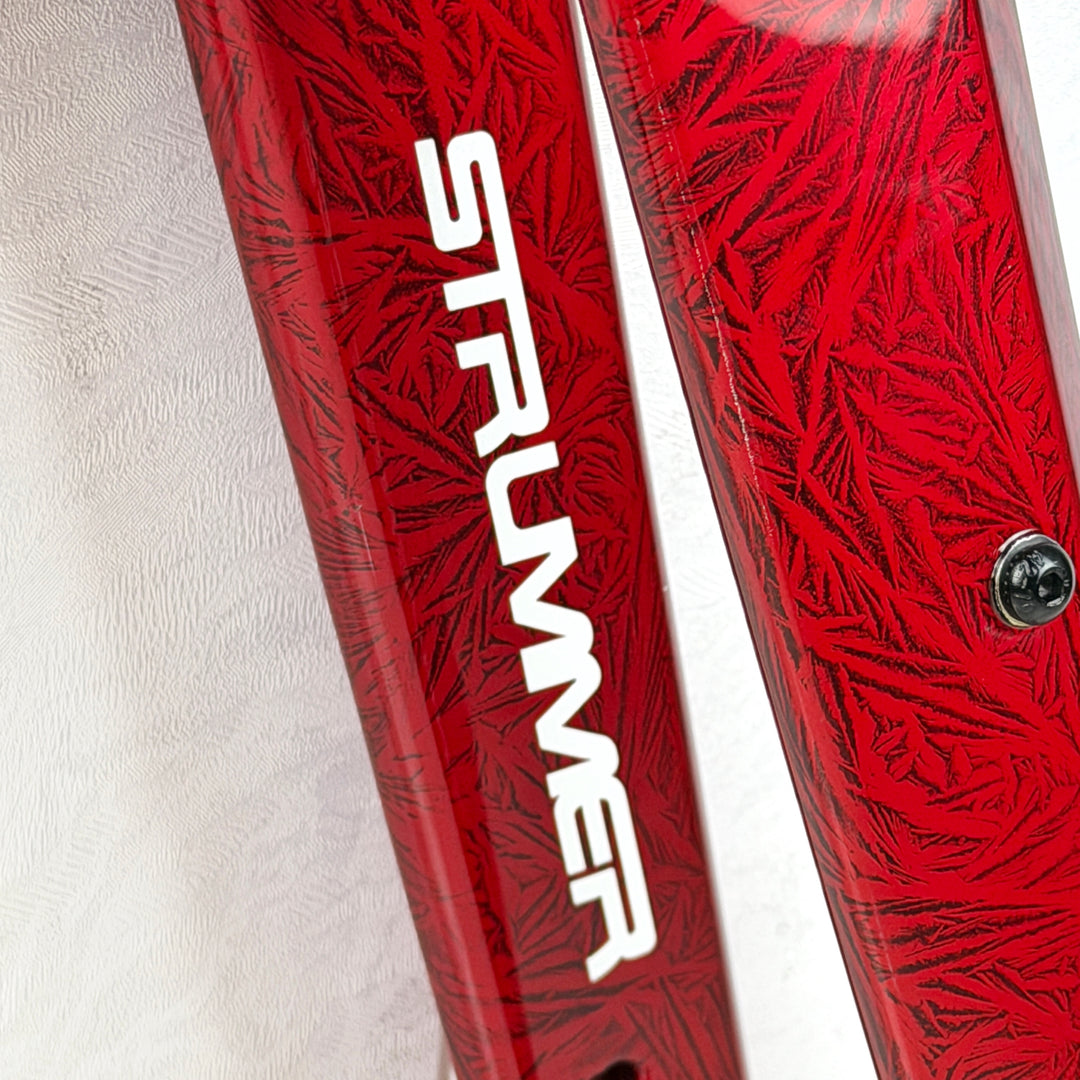

Fork Specifications
| Specifications | Details |
|---|---|
| Material | Toray T800 Carbon Fiber |
| Maximum Tire Clearance | 700 × 50c |
| Braking System | Disc Brake, Flat Mount |
| Caliper Mount | 70 mm bolt spacing, M5 bolt type |
| Crown Race | Integrated Crown Race, 45° angle |
| Hub Size | 12 × 100 mm Thru Axle |
| Thru Axle Thread | M12 × 1.5 |
| Offset / Rake | 50 mm |
| Axle-to-Crown | 399 mm |
| Thru Axle Torque Limit | 10 Nm |
| Cable Routing | Fully Internal Cable Routing |
| Additional Mounts | 3 bolts on each side of the fork |
| Mount Spacing | 64 mm, standard bottle cage |
Product Weight
Actual weight may vary depending on frame size, color, and number of finish layers.
Size 52 Frame Weight ±1.15 kg
Fork Weight ±0.55 kg (including thru axle)
Because carbon frames and forks undergo manufacturing processes and hand-applied finishing, slight variations in weight and finish appearance may occur between products.
Tire Compatibility Notes
Maximum tire clearance may be affected by:
-
Actual tire size after installation
-
Rim internal width
-
Tire casing shape and tread pattern
-
Tire pressure
-
Tire brand manufacturing tolerances
Tires with the same labeled size may not have the same actual width once installed. Ensure there is safe clearance between the tires and the frame and fork before riding the bike.
Strummer Traverse CF2 Geometry
| Specifications | 490 | 520 | 550 |
|---|---|---|---|
| Seatpost Insertion Length | 180 mm | 220 mm | 250 mm |
| Reach | 374.1 mm | 377.5 mm | 386 mm |
| Effective Top Tube Length | 535 mm | 550 mm | 575 mm |
| Stack | 542.6 mm | 563.4 mm | 598.6 mm |
| Wheelbase | 1,008.9 mm | 1,014.5 mm | 1,029.6 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Front Center | 593.8 mm | 599.4 mm | 614.5 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm |
| Seat Tube Angle | 73.5° | 73° | 72.5° |
| Head Tube Angle | 71° | 71.5° | 72° |
| Seat Tube Length | 490 mm | 520 mm | 550 mm |
| Head Tube Length | 120 mm | 140 mm | 175 mm |
| Standover Height with 700 × 50c | 776.4 mm | 793.4 mm | 833.4 mm |
| Standover Height with 650B × 2.1 inches | 766.4 mm | 783.4 mm | 823.4 mm |
| Fork Rake / Offset | 50 mm | 50 mm | 50 mm |
| Axle-to-Crown | 399 mm | 399 mm | 399 mm |
| Trail | 69.3 mm | 66.1 mm | 62.7 mm |
Size Selection Guide
| Size | Recommended Rider Height | Estimated Minimum Inseam |
|---|---|---|
| 490 / Small | 165–174 cm | About 79 cm |
| 520 / Medium | 172–180 cm | About 81 cm |
| 550 / Large | 180–186 cm | About 85 cm |
Height ranges overlap because size selection is also influenced by inseam, torso and arm length, flexibility, and desired riding position.
Prioritize inseam length and standover clearance. As a guide, leave about 20–30 mm between your crotch and the top tube when standing over the bike.
If your height falls within an overlapping range:
-
Choose a smaller size for a lower position and more agile handling.
-
Choose a larger size for a higher front position and more stable ride characteristics.
Stem size, crank length, handlebar width, number of spacers, and saddle position can also affect comfort and riding position.
Installation and Use Notes
Use a torque wrench when installing components on the carbon frame and fork. Do not exceed the torque limits specified by the frame or component manufacturer.
The front thru-axle installation torque limit is 10 Nm.
Installation of the frameset and all its components should be performed by an experienced bicycle mechanic.
Compatible spare part
| SKU | Product name | Link |
|---|---|---|
| CLAMP-00039 | Strummer Traverse CF2 / Unbound CF Seat Clamp | View product |
