Compatibility note: The MTB HG freehub on this hub is not compatible with an HG Road cassette.
Get the ultimate mountain biking experience with the Strummer HM-280! With an exceptionally responsive 3.16° engagement angle, supported by a 3-pawl mechanism on each driver, it delivers 114 engagement points. You’ll be ready to tackle mountain obstacles quickly and confidently.
Made from high-quality materials, every Strummer hub is precision-manufactured using a combination of AL6061-T6 and AL7075-T6, then subjected to precise finishing and anodizing processes to meet our high standards.
Take your mountain biking to the next level with Strummer, a hub designed for speed, performance, and durability.

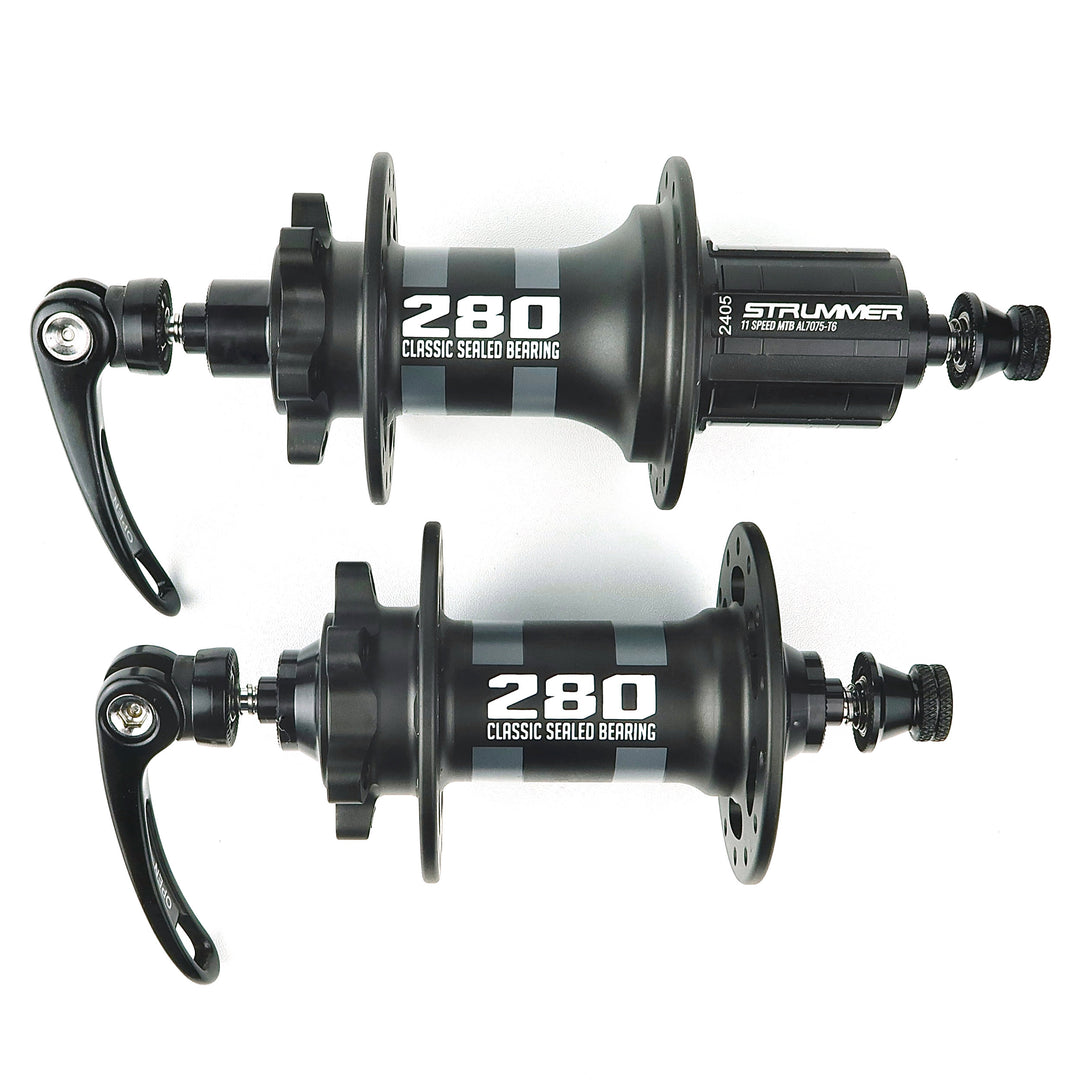

Strummer HM-280 Hub Specifications
Front Hub: 9 x 100 mm, 28 holes, 14G spokes, 205 grams (including 5 mm diameter QR skewer)
Rear Hub: 10 x 135 mm, 28 holes, 14G spokes, 325 grams (including 5 mm diameter QR skewer)
Freehub Body: 6-pawl design, compatible with HG MTB sprocket cassettes
Braking Mechanism: Compatible with ISO 6-bolt disc brake rotors
Material: AL6061-T6 body & AL7075-6 axle
Bearings: 2 sealed front bearings & 4 rear bearings
B2B Information (for Dealers)
Pack quantity: 20 pcs
Rear Hub (Freehub) Maintenance Note
Grease lubricates the contact surfaces in the rear hub’s freehub mechanism, helping reduce friction and wear. Removing all the grease solely to obtain a louder sound is not recommended. Without adequate lubrication, components may wear out or become damaged more quickly, shortening their service life. Use the type and amount of lubricant recommended for product maintenance.
Replacement bearing specifications
| Position | Bearing code | Quantity |
|---|---|---|
| Front hub | 18307-2RS | 2 pcs |
| Rear hub (total) | 6902-2RS | 4 pcs |
Cassette compatibility
The HM-280 freehub body is suitable for HG MTB cassettes and is not compatible with HG Road.
Hub usage
No. The HM-280 is an MTB hub and is not suitable for road bikes. Its freehub body uses the HG MTB standard.
Compatible adaptor references
The following adaptors and end caps are sold separately. Match the model, generation, hub position, fork/frame standard, and freehub configuration before purchasing.
| Adaptor / end cap | Function and compatibility |
|---|---|
|
QR 9×100 mm front end cap SKU: ADT-00059BK |
Replacement for the included end cap. |
|
12×100 mm thru-axle front end cap SKU: ADT-00043BK |
Converts the front hub to a 12×100 mm thru axle. |
|
15×100 mm thru-axle front end cap SKU: ADT-00049BK |
Converts the front hub to a 15×100 mm thru axle. |
|
QR 10×135 mm rear end cap SKU: ADT-00044BK |
For compatible non-Boost HM-280/HM-350/HM-380 models. |
|
QR 10×142 mm Gen-1 rear end cap SKU: ADT-00033BK |
Converts the rear hub from QR 10×135 mm to QR 10×142 mm. |
