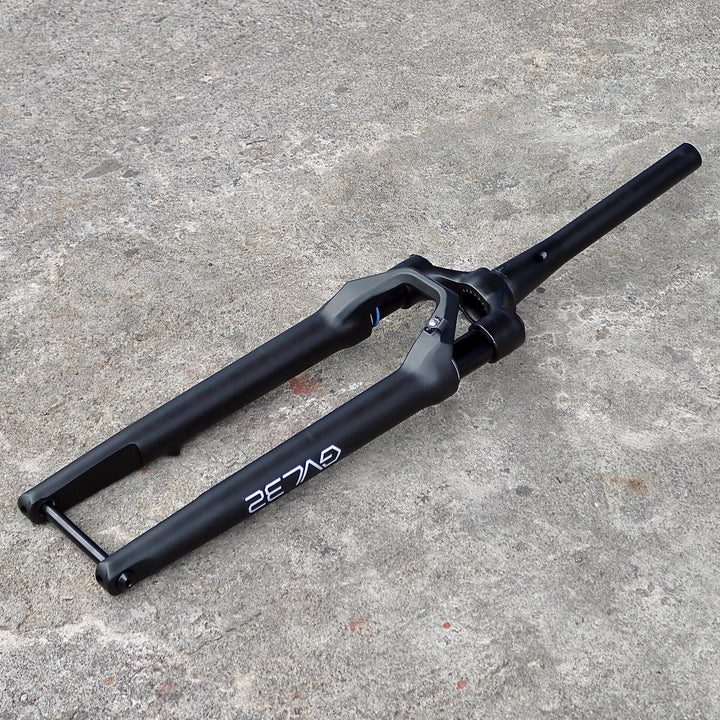

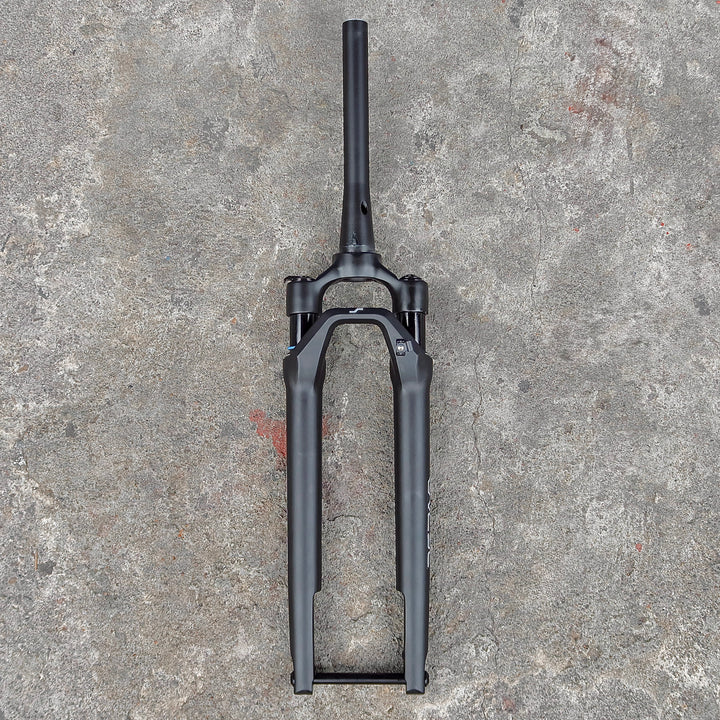

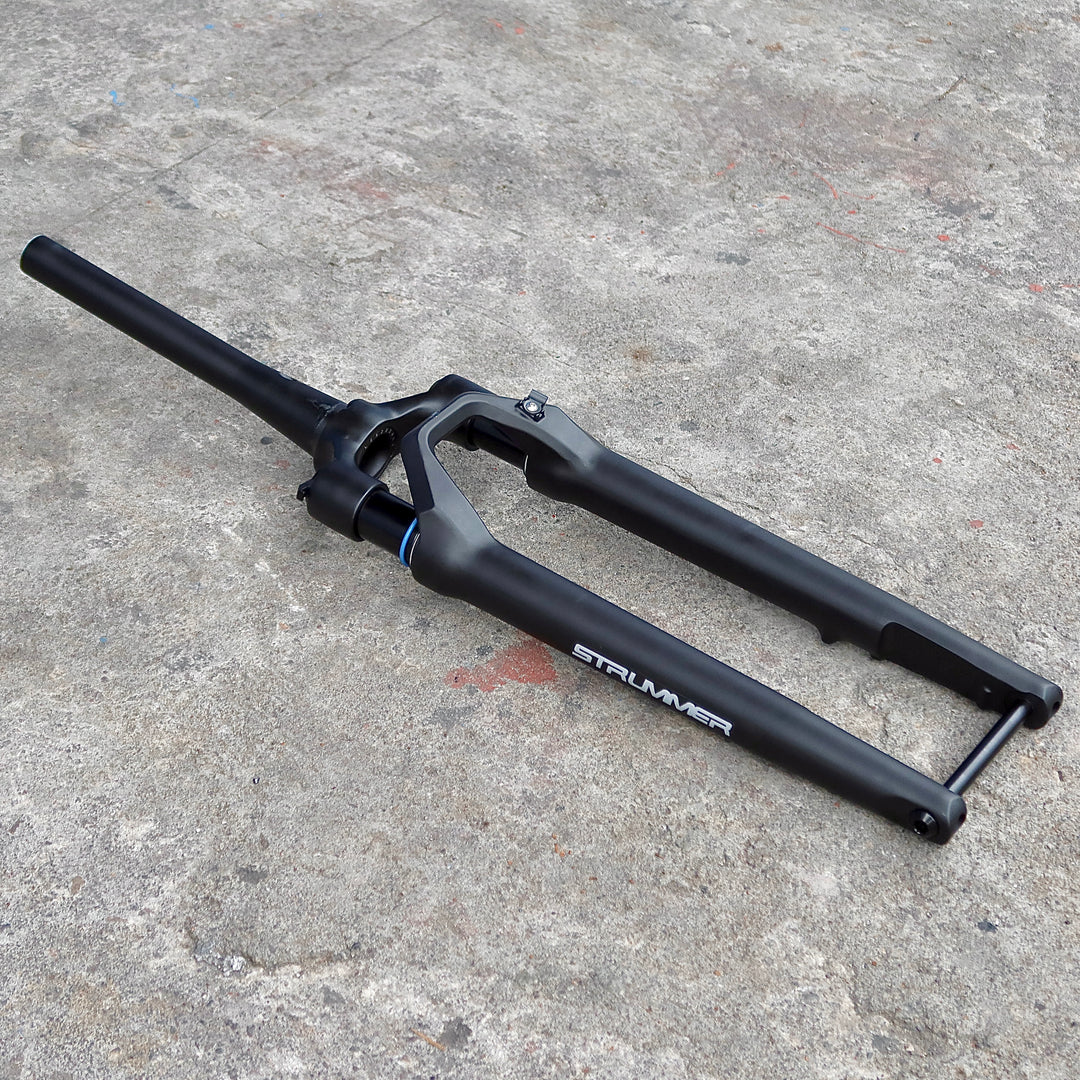

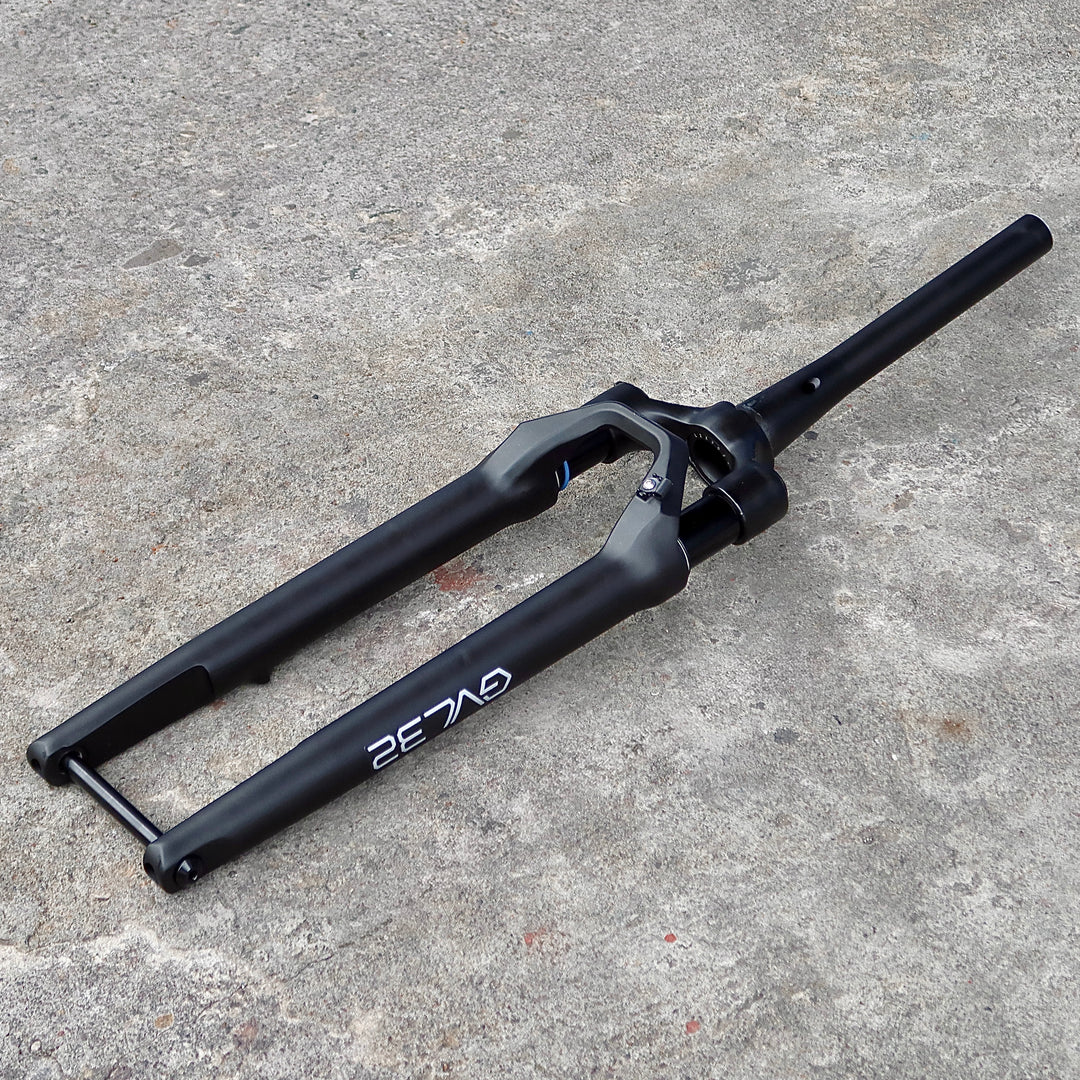

Strummer GVL32
The Strummer GVL32 fork is designed for road bikes and gravel that require additional comfort, control, and stability when traversing rough road surfaces, paving, light gravel, or uneven routes.
With travel options of 40 mm, 50 mm, and 60 mm, the GVL32 helps dampen vibrations without excessively altering the character of road/gravel bikes. Shorter travel keeps handling stable and controlled, unlike MTB forks which generally have longer travel and different handling characteristics.
This fork uses an air suspension system with lockout, allowing the air pressure to be adjusted according to the system weight, riding style, and route conditions.
For inflation, the valve cover on the fork can be opened by hand. No special tools are required to open the cover.
Key Features
- Designed for road bikes and gravel
- Air suspension with lockout
- Travel options of 40 mm, 50 mm, and 60 mm
- Short travel for stable and controlled handling

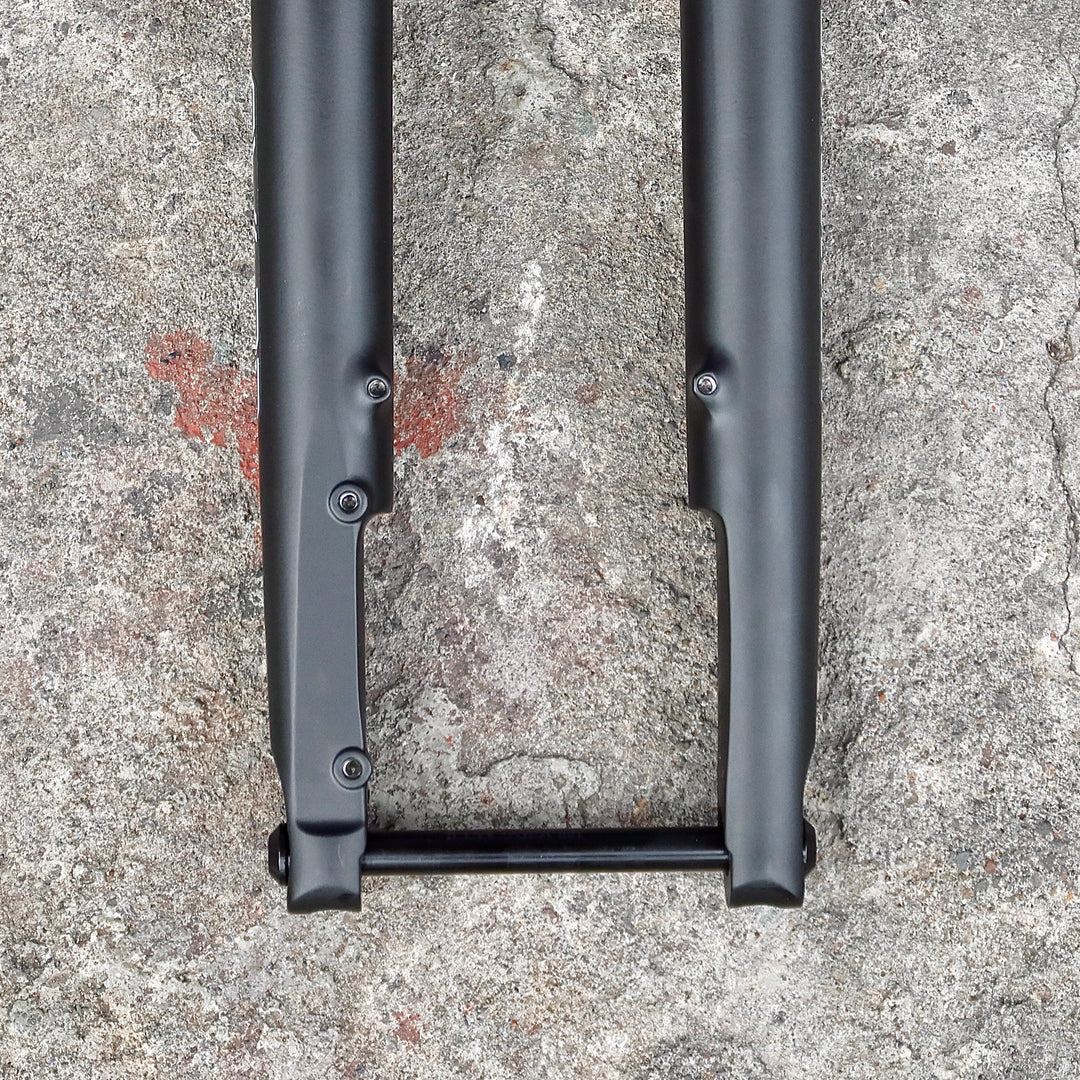

- Disc brake only with flat mount standard
- Available in internal cable and external cable variants
- Supports 12 × 100 mm thru axle setup
- Clean and modern appearance
- Suitable for daily use, endurance riding, and light adventure
Technical Specifications
| Specifications | Details |
|---|---|
| Model | Strummer GVL32 |
| Product Weight | ±1.6 kg |
| Suspension System | Air Suspension with Lockout |
| Braking System | Disc Brake Only |
| Brake Mount | Flat Mount |
| Steerer Tube | Aluminium Alloy, Tapered 28.6 / 39.8 mm |
| Pitch | 116 mm |
| Axle to Crown | 450 mm |
| Travel Options | 40 mm / 50 mm / 60 mm |
| Hub Size | 12 × 100 mm |
| Thru Axle | Included |
| Wheel Size | 700c / 29” |
| Maximum Tire | 700c × 50 mm or 29” × 2.0” |
| Offset / Fork Rake | 48.5 mm |
| Stanchion | 32 mm Aluminium Alloy |
| Crown | Aluminium Alloy |
| Lower Legs | Magnesium |
| Cable System | Internal Cable / External Cable |
Note: Tire clearance can be affected by rim width, tire model, and usage conditions. Always ensure there is safe space between the tire and fork.
Cable System Variants
The Strummer GVL32 fork is available in two cable system variants. Be sure to choose the variant that matches the frame design and installation needs.
1. Internal Cable

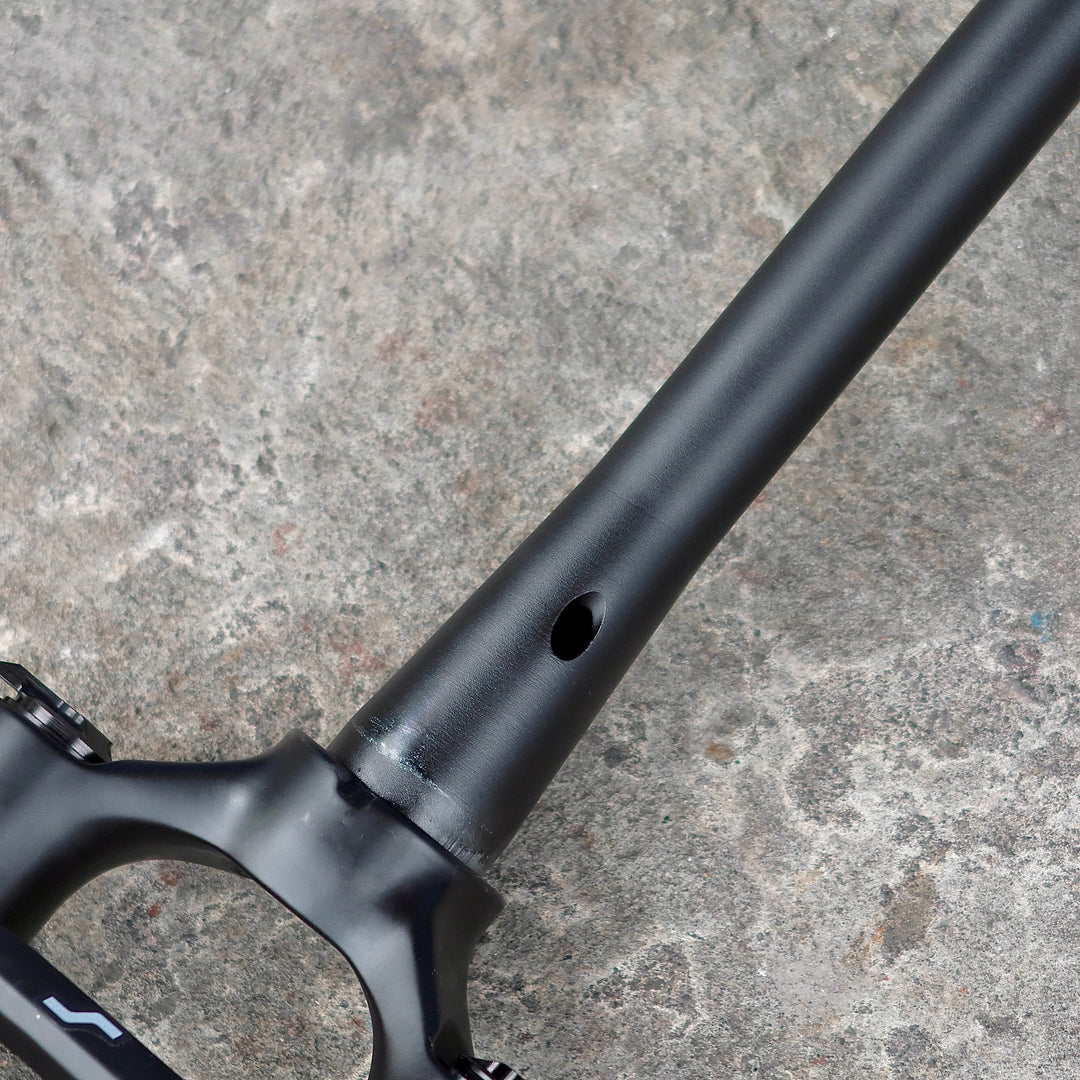

The internal cable variant has holes in the steerer tube, allowing the brake cable to enter through the headset area and pass through the inside of the steerer tube.
The cable then exits through a hole at the bottom of the steerer tube before heading to the brake caliper.
This variant is suitable for frames that already support the internal cable routing system and provides a cleaner and more minimalist bicycle appearance.
Suitable for:
- Frame with internal cable routing
- Clean cockpit setup
- Users who prioritize a neat and modern appearance
2. External Cable
The external cable variant does not have holes in the steerer tube. The brake cable is routed through the outside of the fork.
This fork is equipped with a special guide for external cable routing, keeping the cable position neat, controlled, and not disrupting the bicycle's appearance.
This variant is simpler for installation and suitable for frames that do not support internal cable routing.
Suitable for:
- Frame with external cable routing
- Easier and more flexible installation
- Users who want a neat setup without an internal cable system
Air Pressure Recommendations
The following air pressure recommendations are initial guidelines. Adjustments can still be made according to rider preference, terrain, and riding style.
System weight includes the weight of the rider, bicycle, bottle, bag, and other equipment used while cycling.
Travel 40 mm — Firm
| System Weight | Air Pressure |
|---|---|
| 60–70 kg | 85 psi |
| 71–80 kg | 90 psi |
| 81–90 kg | 95 psi |
| >90 kg | 100 psi |
Travel 50 mm — Balanced
| System Weight | Air Pressure |
|---|---|
| 60–70 kg | 80 psi |
| 71–80 kg | 85 psi |
| 81–90 kg | 90 psi |
| 91–100 kg | 95 psi |
| >100 kg | 100 psi |
Travel 60 mm — Comfort
| System Weight | Air Pressure |
|---|---|
| 60–70 kg | 80 psi |
| 71–80 kg | 82–85 psi |
| 81–90 kg | 88–90 psi |
| 91–100 kg | 92–95 psi |
| >100 kg | 100 psi |
How to Inflate
- Open the fork valve cover by hand.
- Connect the shock pump to the valve.
- Fill the air pressure according to the initial recommendation.
- Adjust the pressure if the fork feels too hard or too soft.
- After finishing, remove the shock pump and reattach the valve cover.
Note: Use a shock pump, not a regular tire pump, for more precise pressure adjustments.
Spare Part
| Spare Part Name | Product Code |
|---|---|
| Thru Axle Set Strummer for GVL32 Fork Strummer | ASQR-00017BK |
Important Note
Ensure the fork installation is done correctly, especially at the steerer tube, headset, brake hose, and thru axle. For best results, installation is recommended to be done by an experienced bicycle mechanic.
Air pressure can be adjusted from the initial recommendation depending on the weight of the system, riding style, and terrain conditions.
