Name: Strummer Unbound CF Carbon Gravel (Frame & Fork, 700c)
Brand: Strummer
SKU: FRAME-00020MTBKGY
Price: 7725000.0 IDR
Availability: InStock

Strummer Unbound CF Carbon Gravel (Frame & Fork, 700c)

Rp 7.725.000,00

Ongkos kirim akan dihitung saat proses checkout.

Harga dapat ditampilkan dalam mata uang lokal anda. Transaksi akan dilakukan dalam mata uang Rupiah Indonesia (IDR).

Kami melayani pengiriman internasional.

Barang akan dikirim dari gudang kami di Surabaya, Indonesia.

Quantity

Variants

Frame Only (Size: 490) + Free Strummer Headset

Frame Only (Size: 520) + Free Strummer Headset

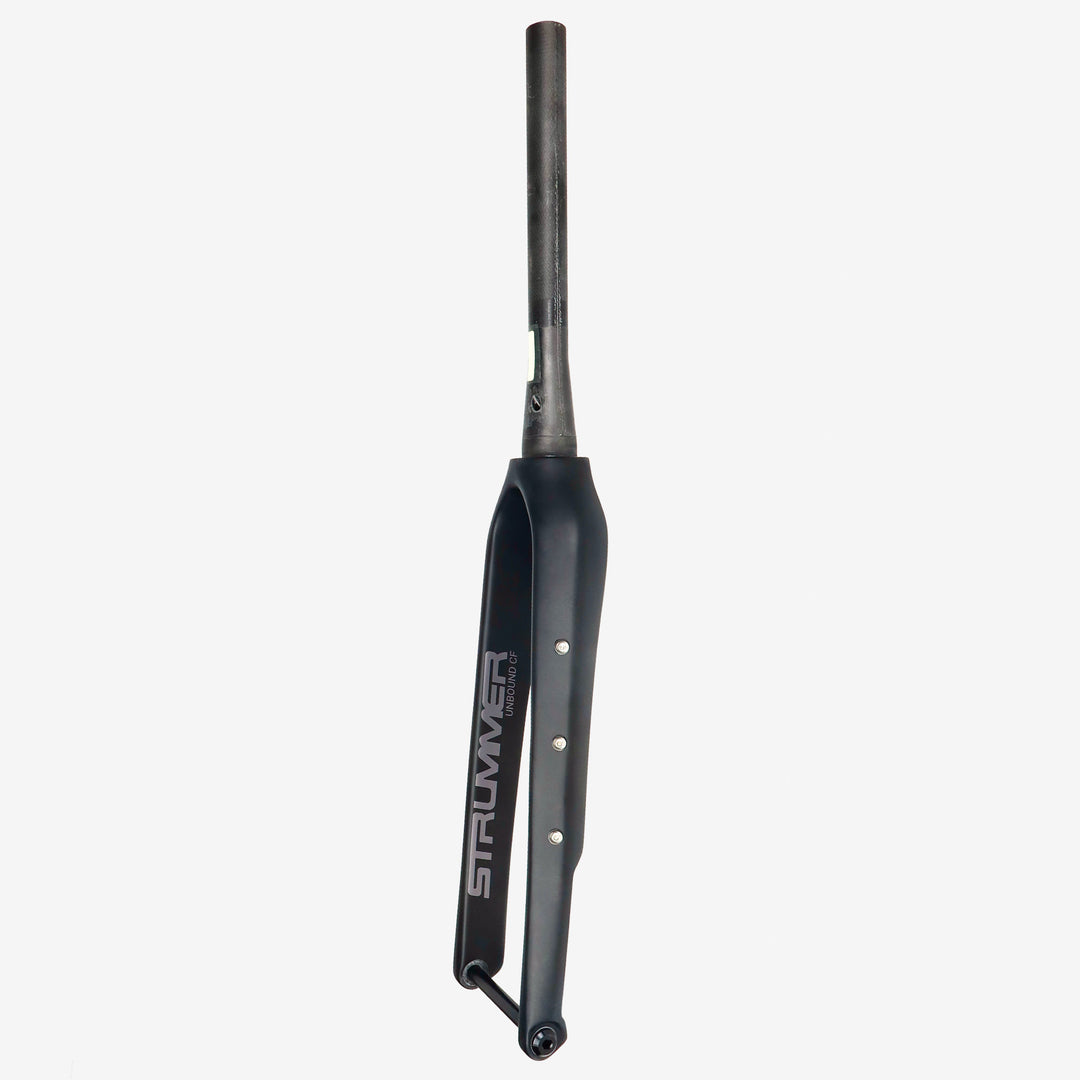

Fork Only (Full Internal Cable)

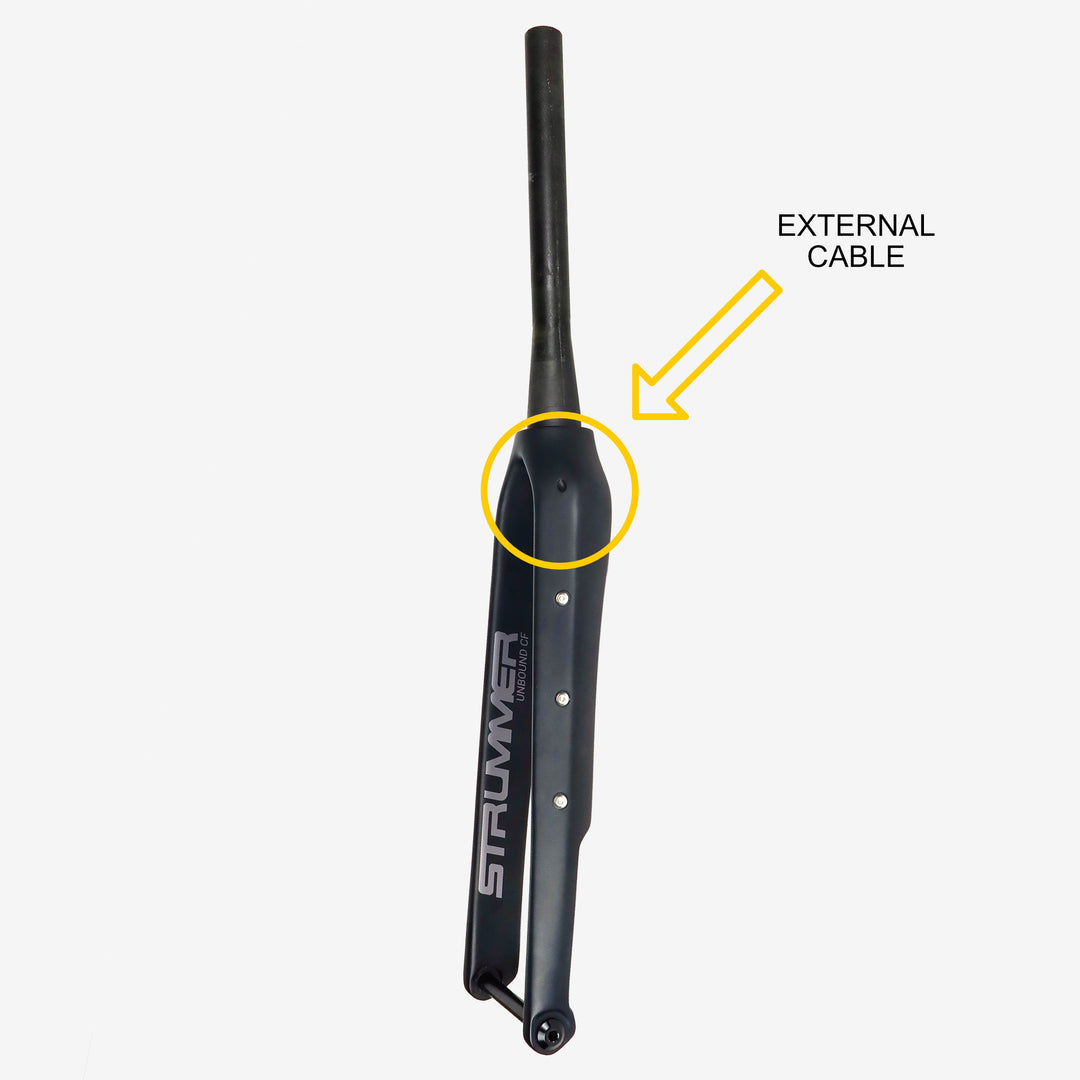

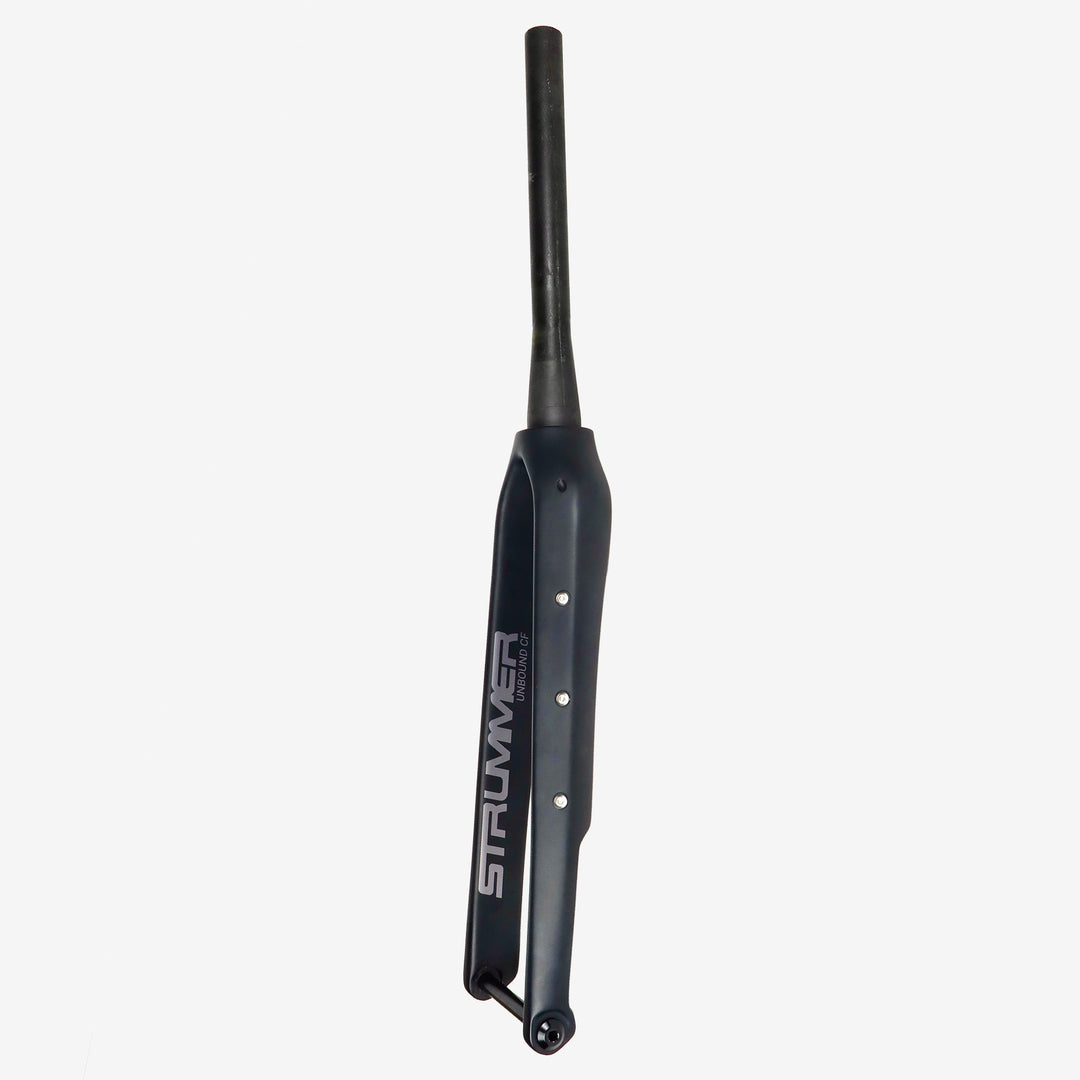

Fork Only (External Cable Routing)

Frameset Strummer Unbound CF diancang untuk dapat memberikan performa maksimum di jalan halus (tarmac) dan bebatuan (gravel). Diproduksi dengan Toray T700 dan dirancang dengan bentuk yang memberikan kekuatan ekstra.

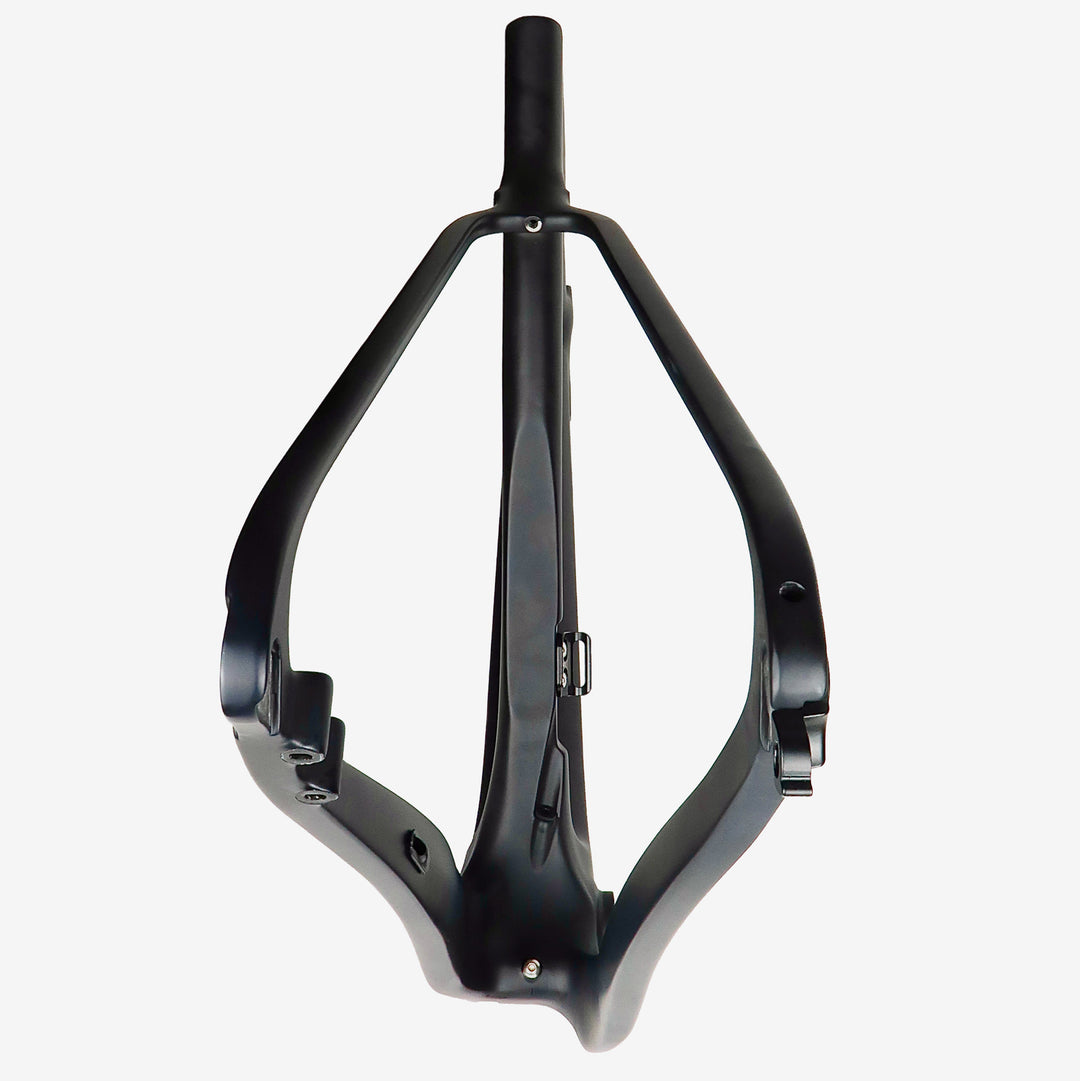

Design asimetris pada bagian chainstay meningkatkan stiffness pada bagian drive side, meningkatkan stabilitas pada bagian non-drive side, dan meningkatkan clearance untuk chainring dengan ukuran lebih besar. Proses produksi frame secara monokok pada bagian depan dan belakang membuat frame ini lebih presisi dan stiff (kaku).

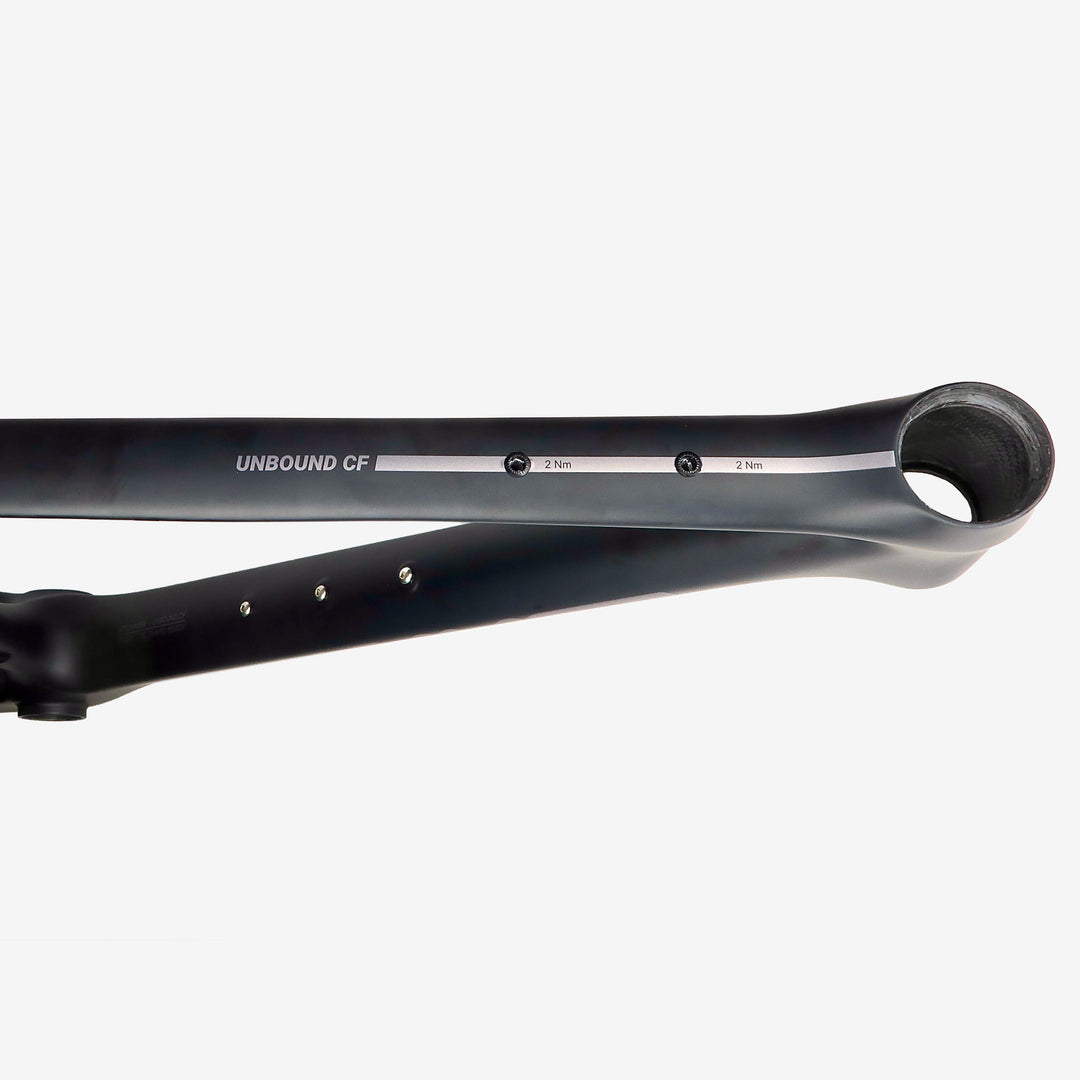

Design pada top tube dirancang dengan vibration dampening zone yang dapat meredam getaran, sehingga akan terasa nyaman saat melewati rute gravel.

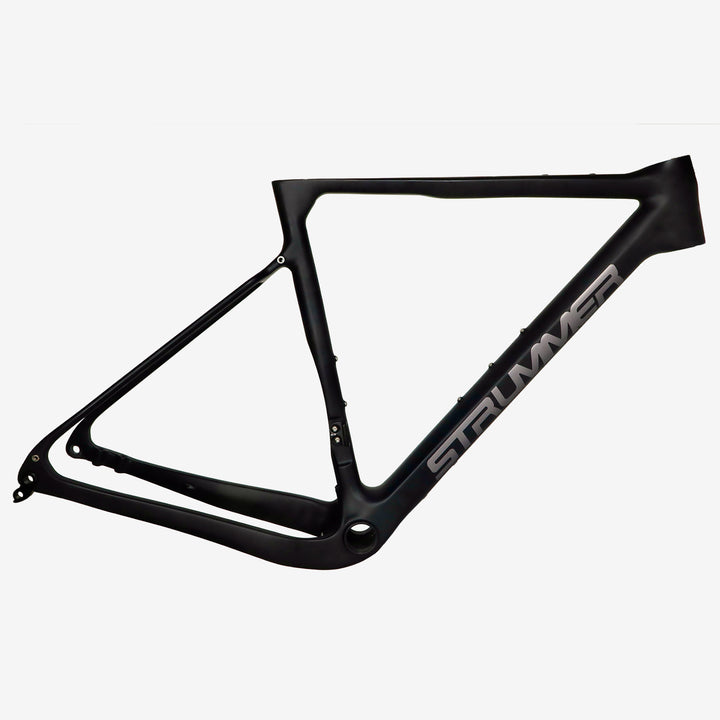

Spesifikasi Frame Strummer Unbound CF

Compatible Seatpost Diameter: 27.2 mm Round

Material Carbon: T700

Maximum Tire Clearance: 700c, Fork 45 mm Width (Front), Frame 50 mm Width (Rear).

Headset Size: Diameter 44/52 Full Integrated

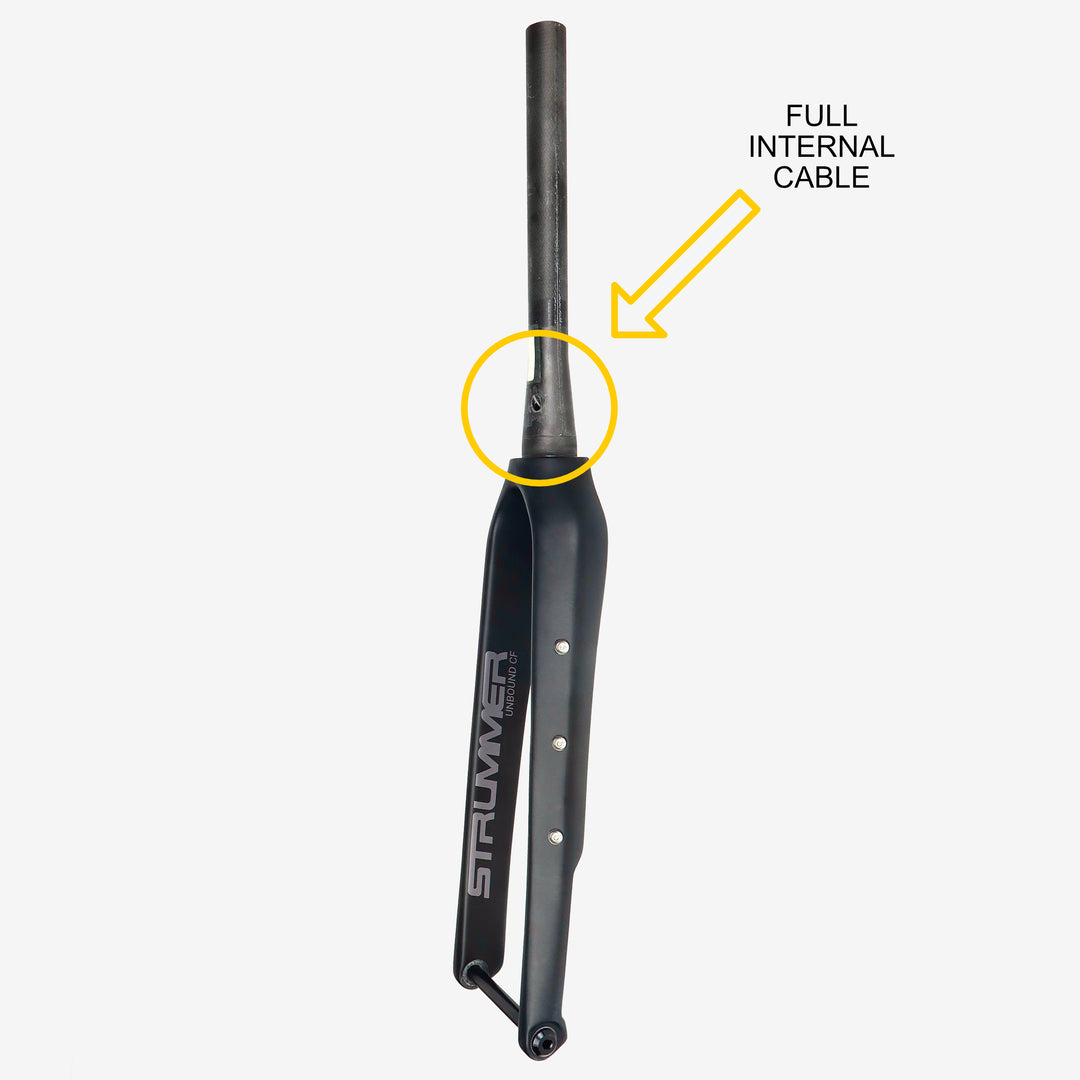

Cable Routing: Full Internal Cable Frame & Fork

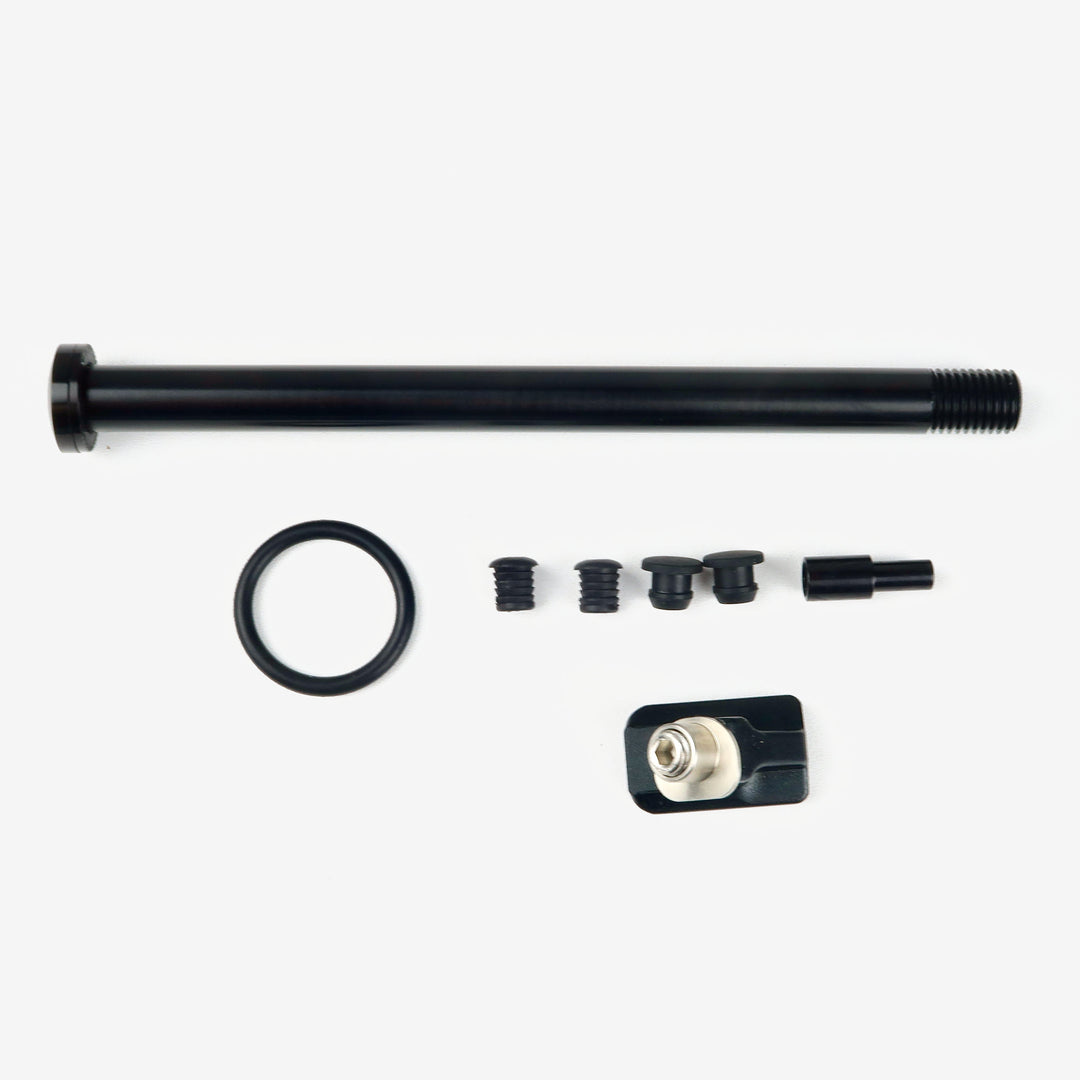

Weight: Fork Internal Cable with Front 12x100 Thru Axle (545 grams), Frame Parts & 12x142 Thru Axle (74 grams), Headset 170 grams, Frame Only ST490/ST520 (1040/1090 grams). Total Weight ST490/ST520 (1829/1879 grams).

Note: Dikarenakan proses pembuatan Frame dan Fork Carbon yang Handmade, dapat terjadi perbedaan berat antar tiap produk.

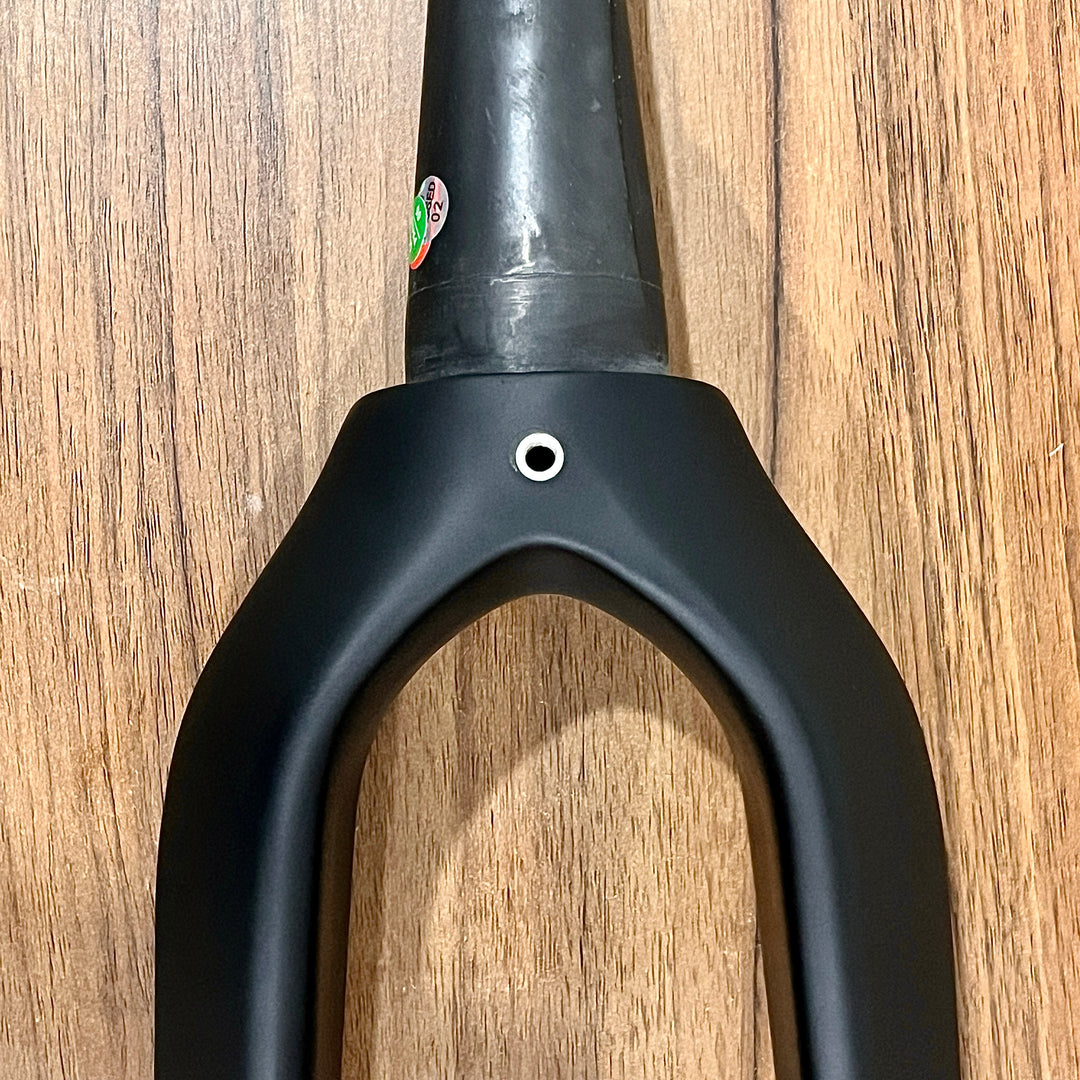

Spesifikasi Fork Strummer Unbound CF

Berat (Termasuk 6 Baut & Thru Axle): 530 gram (Internal Cable), 530 gram (External Cable). Berat akan lebih ringan setelah melakukan pemotongan steerer tube sesuai dengan kebutuhan.

Material: Toray T700 Carbon Fiber

Compatible Tire Size: Maximum 700c (Max 45 mm Width, Road Style Tire, Motive dari Ban dapat mempengaruhi clearance)

Braking System: Disc Brake (Flat Mount)

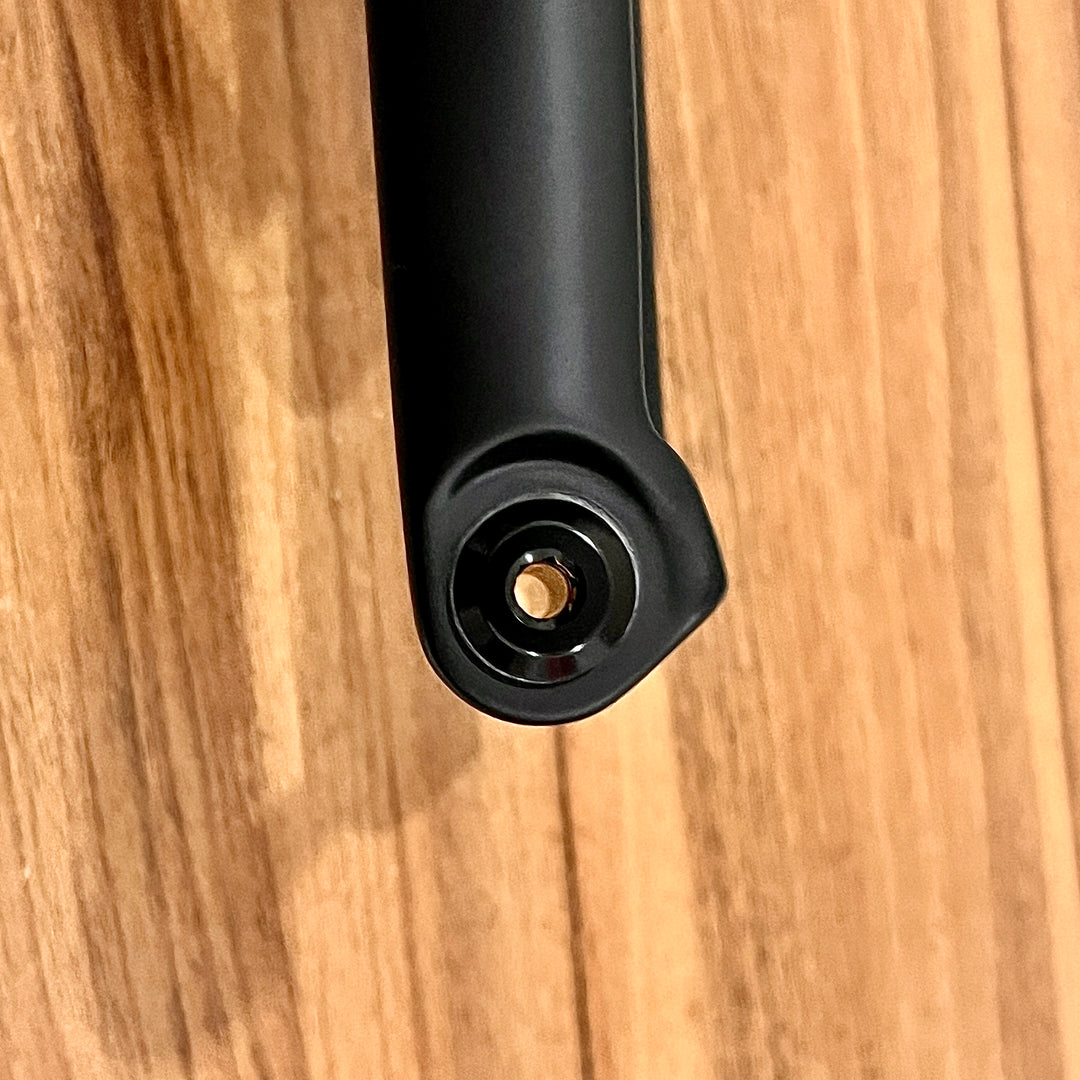

Ukuran Hub yang Cocok: 12x100 mm (Thru Axle)

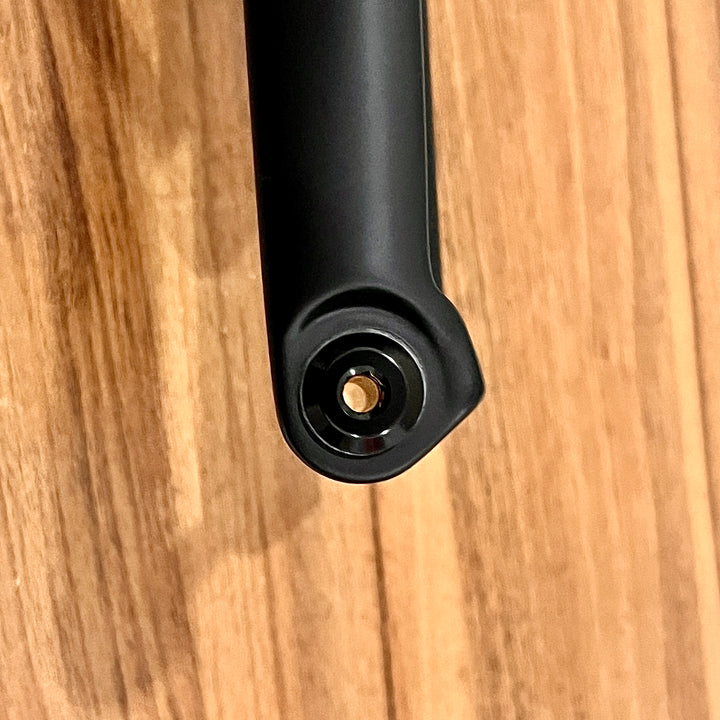

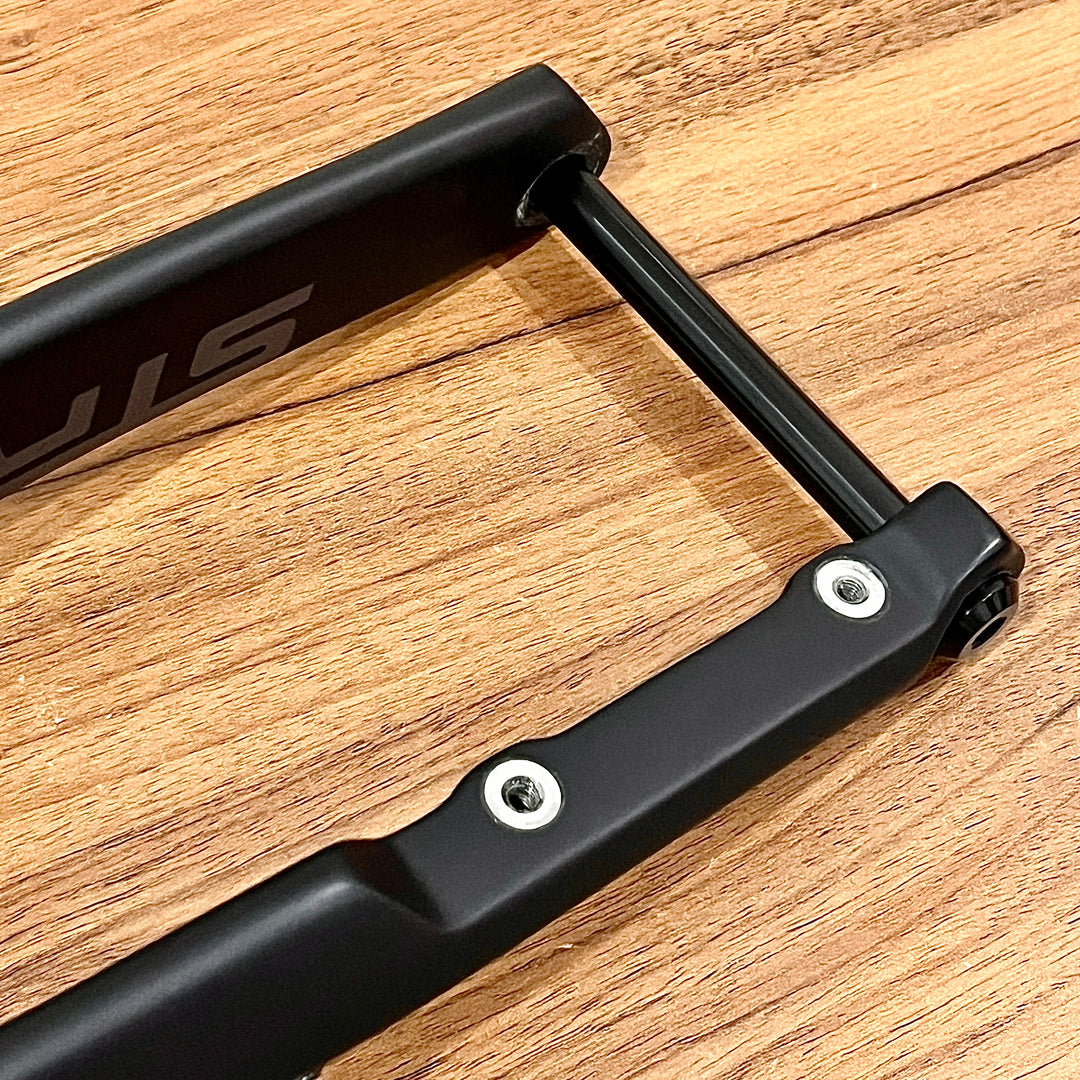

Tru Axle: Total Length 125 mm, P1.5 (11 mm)

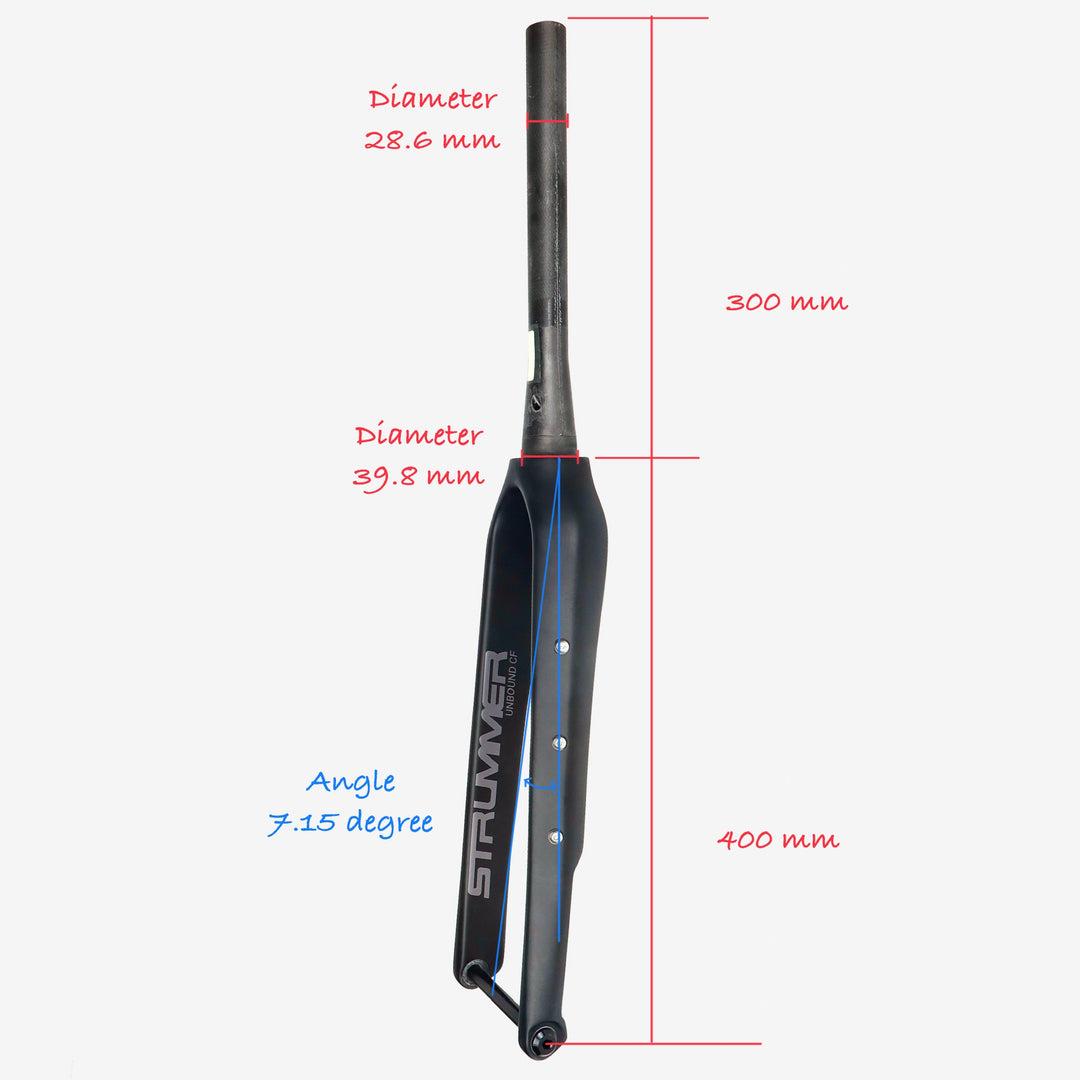

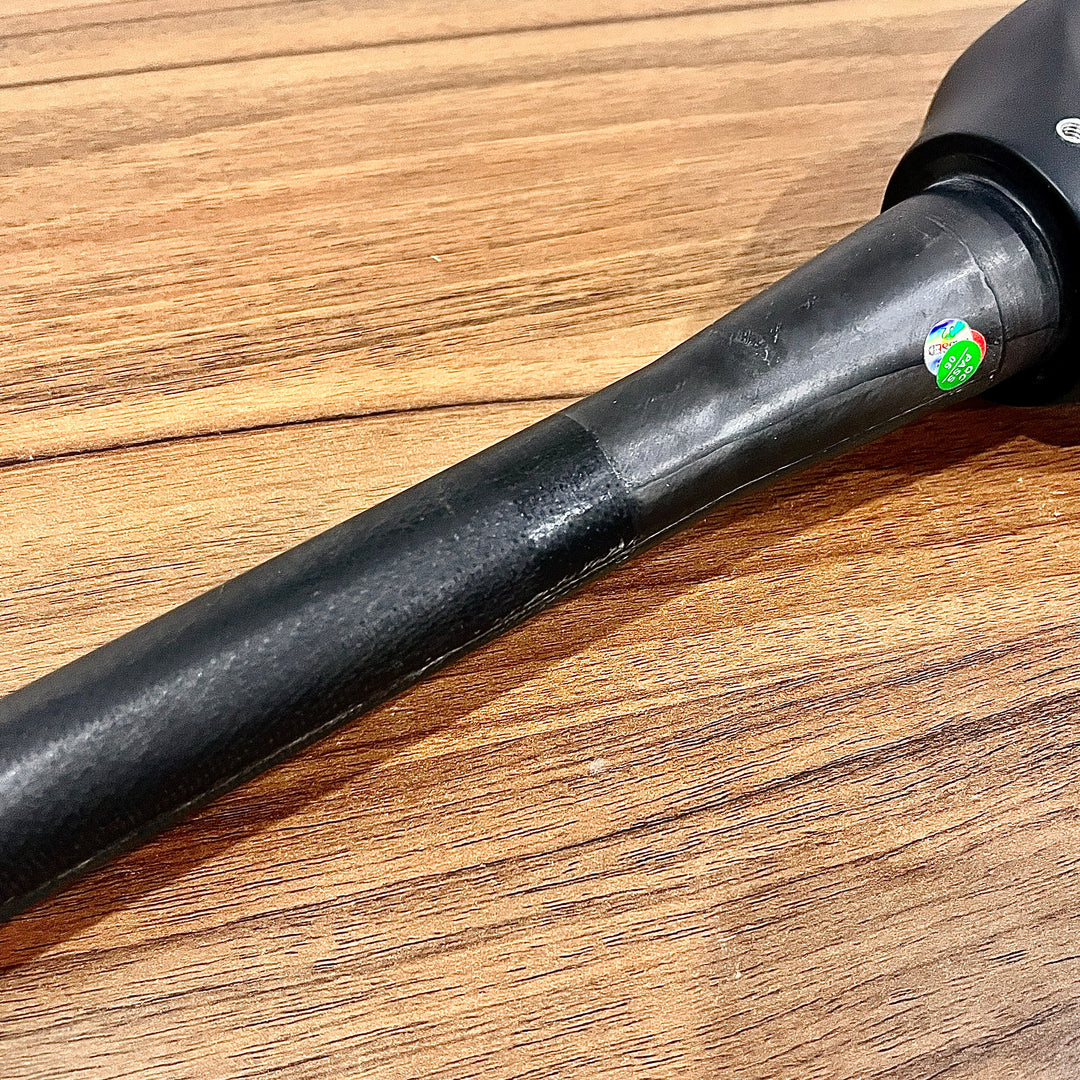

Steerer Tube Diameter: 28.6 mm, 39.8 mm pada bagian Taper Di Bawah

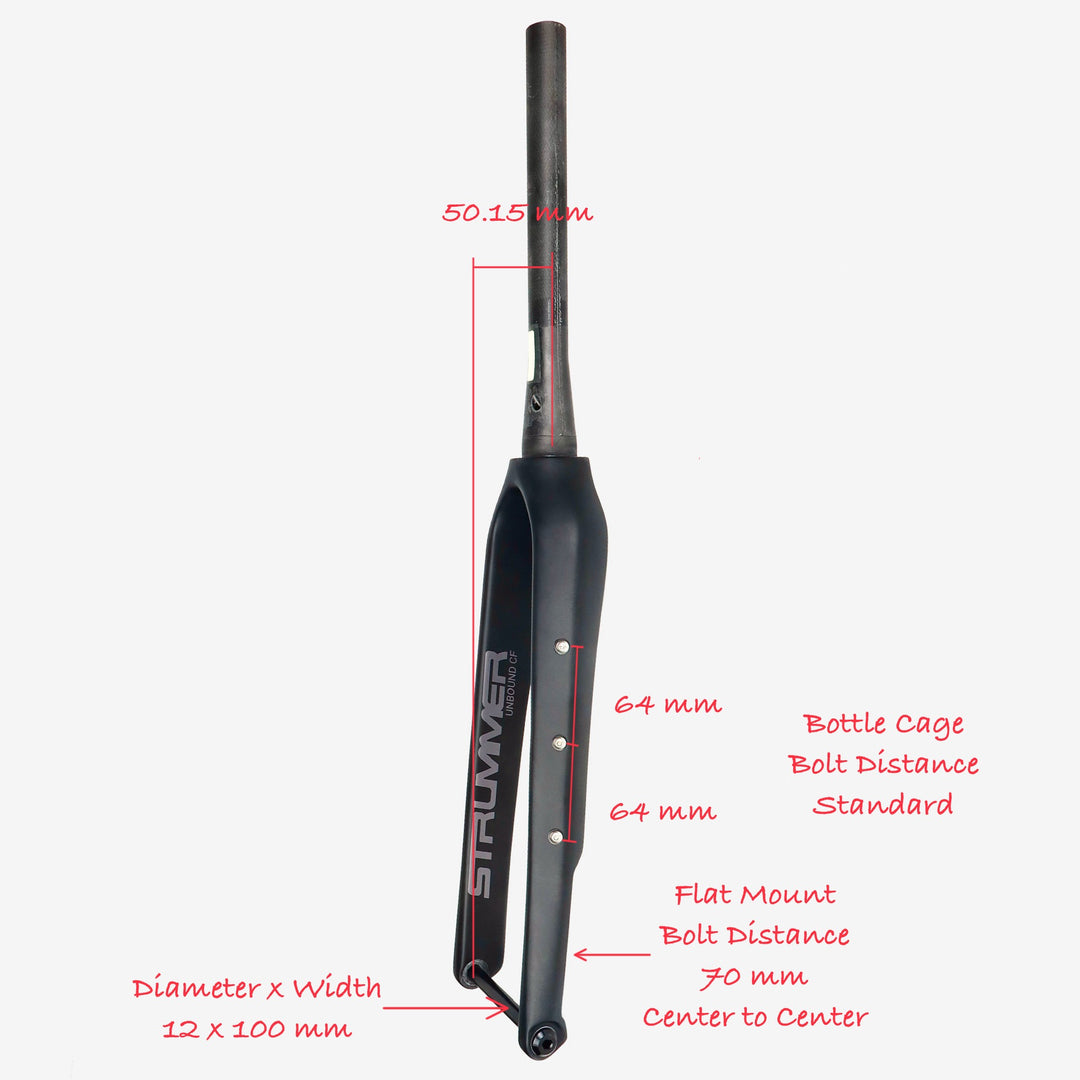

Extra Mounting: 3 Baut Pada Tiap Sisi (Jarak Antar Baut 64 mm, Bottle Cage Standard)

Geometri Frameset

Specification	490	520	550
Seatpost Insert Length	180 mm	220 mm	250 mm
Reach	374.1 mm	377.5 mm	386 mm
Top Tube Length (Horizontal)	535 mm	550 mm	575 mm
Stack	542.6 mm	563.4 mm	598.6 mm
Wheelbase	1008.9 mm	1014.5 mm	1029.6 mm
Chainstay Length	430 mm	430 mm	430 mm
Front Center	593.8 mm	599.4 mm	614.5 mm
Bottom Bracket Drop	70 mm	70 mm	70 mm
Bottom Bracket Height	285 mm	285 mm	285 mm
Seat Tube Angle	73.5°	73°	72.5°
Head Tube Angle	71°	71.5°	72°
Seat Tube Length	490 mm	520 mm	550 mm
Head Tube Length	120 mm	140 mm	175 mm
Bike Standover Height (700x53c)	776.4 mm	793.4 mm	833.4 mm
Bike Standover Height (650B*2.1")	766.4 mm	783.4 mm	823.4 mm
Fork Rake / Offset	50 mm	50 mm	50 mm
Fork Length	397 mm	397 mm	397 mm
Trail	69.3 mm	66.1 mm	62.7 mm

Sizing Guide

Size 490 (Small) = Height 155-165 cm

Size 520 (Medium) = Height 165-175 cm

Size 550 (Large) = Height 175-183 cm

Ukuran diatas hanya sebagai panduan awal. Harap memperhatikan geometri frame untuk mendapatkan ukuran yang lebih akurat. Pengukuran lebih akurat membutuhkan ukuran inseam, tinggi total, dan panjang tangan. Ukuran-ukuran tersebut akan mempengaruhi komponen yang perlu dibeli untuk melengkapi framset ini. Flexibilitas pengendara juga perlu diperhitungkan.

Contoh Sepeda/Frame yang Compatible dengan Fork Strummer Unbound CF (Taper)

Strummer Unbound CF Gravel Carbon Frameset (2024)

Polygon Bend R2 (2024)
